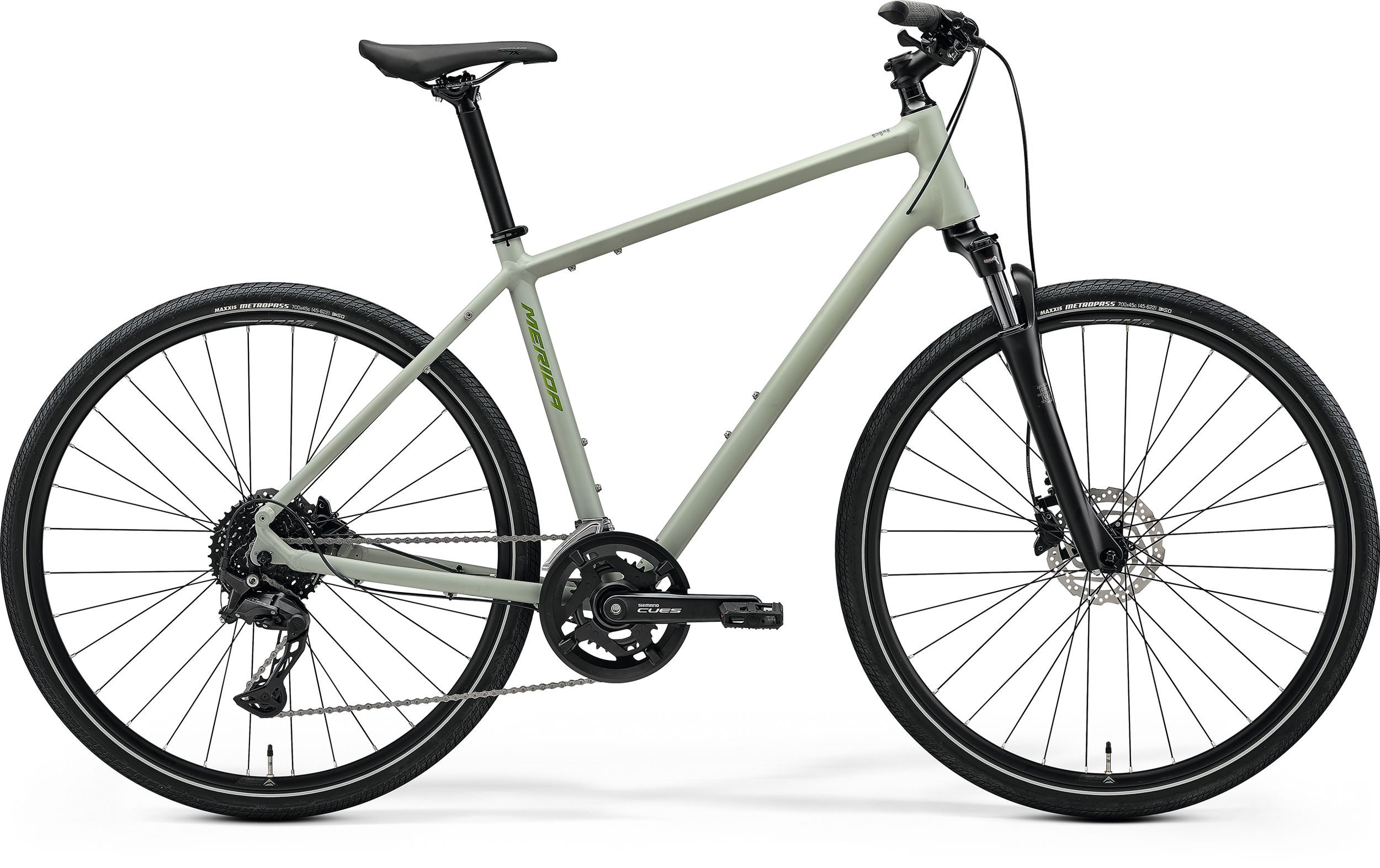

With a lightweight aluminium frame that's been updated with even greater tyre clearance, the CROSSWAY 300 delivers practicality, comfort and fun. With a bump-smoothing suspension fork and wider 45 mm Maxxis tyres, it's happy to take on forest trails but the comfortable upright riding position and revised handlebar make it just as much fun in the city or on the commute. Add in the powerful Shimano disc brakes and a hard-wearing drivetrain and you've got a riding partner for life.
The CROSSWAY family is our versatile and proven way of getting around. Suitable for fitness training, commuting and leisurely rides through forests and on trails, they are designed to provide a comfortable place to take in the surroundings thanks to an upright riding position. Comfort-focused equipment such as suspension fork and adjustable stems on selected models means they offer the perfect blend of comfort, enjoyment and all-round functionality. An updated, high-quality aluminium frame now offers greater clearance for 50 mm tyres on 700c wheels so you can cover ground quickly with added puncture protection, grip and comfort. With the ability to mount mudguards, racks and kickstands (available separately as the EQ kit), the CROSSWAY range is the perfect choice for everyday riding. All CROSSWAY models are available as a low step-through frame, making mounting and dismounting straightforward.
- Lightweight aluminium frame with comfort geometry and 50 mm tyre clearance
- Lockable suspension fork with new bars and stem for extra comfort
- Hydraulic disc brakes and Maxxis Metropass tyres
- Shimano CUES 2x10-speed drivetrain
- Multiple fixing points for rear rack and fenders
- Full-equipment EQ kit available separately
- material: aluminium
- 700x50C max. wheelsize
- 135x9mm axle standard
- BSA bottom bracket standard
- Crossway EQ-kit ready
- L-frame:-XXS,W-XS,W-S,W-M,W-L
- Coil
- 63mm suspension travel
- Lockout
- 700x50C max. wheelsize
- 2 piston
- 160mm
- material: aluminium
- 30.9mm diameter
- 5mm setback
- 46-30 teeth
- 170 mm-XXS/XS/S, 175 mm-M/XL
- 11-39 teeth
- 10 speed
- 100x9mm width front hub
- 32 spoke holes
- Centerlock
- 135x9mm width rear hub
- 32 spoke holes
- Centerlock
- 20mm inner width
- 17mm height
- material: aluminium
- 700x45C
- wire
- reflective stripe
- 700x45C
- wire
- reflective stripe
weighted at frame size S
| Frame Size | XXS | XS | S | M | L | XL |
| Tyre Sizes | 28" | 28" | 28" | 28" | 28" | 28" |
| ST seat tube [mm] | 390 | 430 | 470 | 510 | 550 | 590 |
| TT top tube [mm] | 560 | 565 | 580 | 590 | 610 | 630 |
| CS chain stay length [mm] | 460 | 460 | 460 | 460 | 460 | 460 |
| HTA head tube angle [°] | 70.5 | 70.5 | 71 | 71 | 71.5 | 71.5 |
| STA seat tube angle [°] | 74 | 74 | 73.5 | 73.5 | 73 | 73 |
| BD bottom bracket drop [mm] | 70 | 70 | 70 | 70 | 70 | 70 |
| HT head tube [mm] | 130 | 130 | 140 | 155 | 175 | 205 |
| FL fork length [mm] | 468 | 468 | 468 | 468 | 468 | 468 |
| FO fork offset [mm] | 42 | 42 | 42 | 42 | 42 | 42 |
| R reach [mm] | 382 | 387 | 393 | 399 | 406 | 418 |
| S stack [mm] | 620 | 620 | 631 | 645 | 667 | 695 |
| WB wheel base [mm] | 1076 | 1081 | 1085 | 1096 | 1104 | 1125 |
| SH stand over height [mm] | 678 | 713 | 748 | 782 | 817 | 854 |
