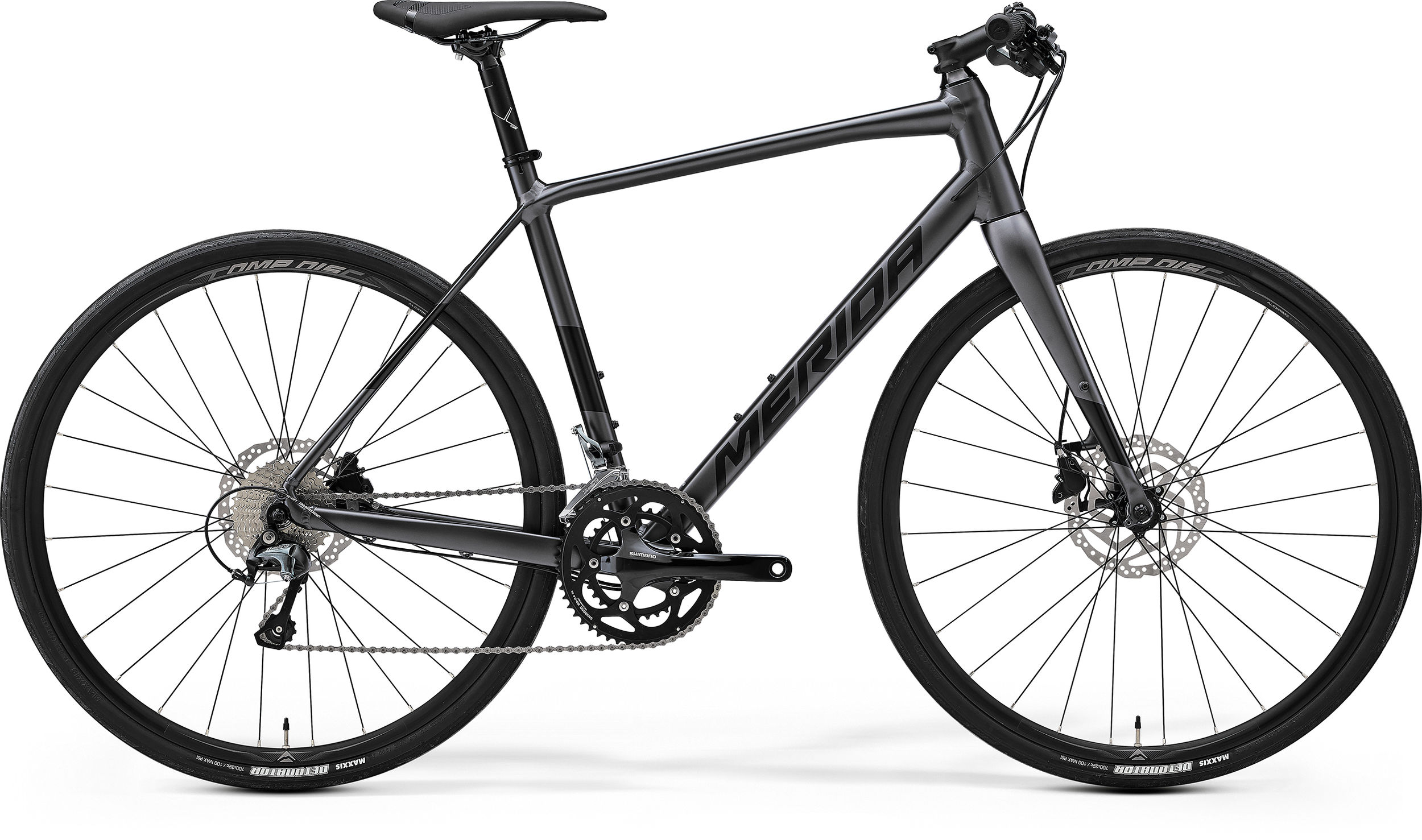

SPEEDER 300



The perfect combination of fun and efficiency, our SPEEDER 300 combines a lightweight aluminium frame with a full carbon fork and quality road components, making it ideal for fast commutes and sporty training rides.

A sleek and stylish fitness bike with quality components that deliver smooth and accurate action at a sensible price. The triple butted aluminium frame paired with the full carbon fork keeps weight down, while the straight handlebar setup creates a more upright and, therefore, comfortable riding position and improves the visibility of what lies ahead. Multiple fixing points enhance the day to day usability.

Fast and lightweight, the SPEEDER shares its genes with our road bike range. The geometry offers an extended reach for added stability while providing a more upright and comfortable riding position. The sporty yet comfort inspired geometry paired with control enhancing flat handlebars and powerful disc brakes make the SPEEDER ideal for fast commuting or fitness rides. Wider tyres and more tyre clearance underline the comfort element even further and give the SPEEDER more grip when it counts. Road.cc call the 900 an 'excellent fast flat-bar road bike with awesome performance' and the 200 'an enjoyable flat-barred flyer for fitness, commuting and everyday riding'.

  • Lightweight aluminium frame with full carbon fork
  • Shimano double chain ring drivetrain
  • Sporty yet comfortable geometry and seating position
  • Flat handlebar setup
  • Powerful Shimano hydraulic disc brakes
  • Multiple fixing points for fenders, kickstand and a rear rack
  • material: aluminium
  • 700x35C max. wheelsize
  • 100x9/135x9 mm axle standard
  • BSA bottom bracket standard
frame size XXS, XS, S, M, L, XL
color SILK DARK SILVER (BLACK)
  • Tapered
  • material: carbon
  • 700x35C max. wheelsize
headset MERIDA M2331 Neck
  • material: aluminium
  • 600 mm width
  • Flat
  • material: aluminium
  • 31.8 mm diameter
  • 5° stem angle
  • 80 mm-XXS/XS, 90 mm-S, 100 mm-M, 110 mm-L/XL
grip MERIDA Comp EC
derailleur (f) Shimano Tiagra
  • material: aluminium
  • 30.9 mm diameter
  • 5 mm setback
bottom bracket Shimano BB-RS500 BSA
pedal VP VPE-891
chain KMC X10
  • 50-34 teeth
  • 170 mm-XXS/XS/S/M, 175 mm-L/XL
  • 11-32 teeth
  • 10 speed
axle front QR
  • weighed at frame size M
  • Weight may vary depending on bike size, finish or possible specification changes due to supply chain issues.
Bike Frame Geometry Image
Frame Size XXS XS S M L XL
Tire Sizes 28" 28" 28" 28" 28" 28"
St Seat Tubes Mm 470 500 520 540 560 590
Tt Top Tubes Mm 555 561 571 583 597 610
Cs Chain Stays Mm 438 438 438 438 438 438
Hta Head Tube Angles Deg 70 70.5 71 71.5 72 72
Sta Seat Tube Angle Deg 73.5 73.5 73.5 73.5 73.5 73.5
Bd Bottom Bracket Drops Mm 65 65 65 65 65 65
Ht Head Tube Lengths Mm 150 160 170 190 215 240
Fl Fork Lengths Mm 395 395 395 395 395 395
R Reachs Mm 389 392 398 404 410 416
S Stacks Mm 562 573 585 606 631 655
Wb Wheel Base Mm 1051 1053 1058 1066 1075 1088
Sh Stand Over Height Mm 744 769 787 806 828 855

Technologies

Back to overview

PROLITE 66 TRIPLE BUTTED ALUMINUM

When creating high-end aluminium frames, we use our proven PROLITE 66 (6066) aluminium, as it is incredibly light and durable. In addition, it works exceptionally well with our hydroforming technology, allowing us to create complex shapes, featuring triple butted wall thicknesses, an almost carbon-like appearance and the best possible stiffness-to-weight ratio. While lesser alloys might be cheaper, it is the ideal choice for high-performance bicycle frames.

Watch Video
Back to overview

HFS - HYDRO FORMING SYSTEM

‘C-Mount’ equipped bikes have the fixing points for a rear rack already integrated (some bikes require model specific rear rack), making fitting fast, simple and reliable.

Watch Video
Back to overview

X-TAPER HEADTUBE

Steering precision is vital to safe and confident handling, and the X-TAPER HEADTUBE allows us to significantly boost this precision. A larger headset diameter at the bottom paired with a smaller one at the top helps to deal with the strains modern riding and equipment can put on the headtube, all without adding unnecessary weight. It allows tapered forks to be fitted with ease and delivers precise and confidence-inspiring steering.

Watch Video
Back to overview

SMOOTH WELDING

This is a process we use to give a nice flat finish to our welds instead of the scaled, 'stack of coins' effect TIG welded joints often have. The welder uses the welding torch to go over the joint twice, helping to smooth out the filler material. It takes a lot of skill to do this, but it delivers strong and smart-looking frames that have the appearance of a carbon fibre frame at first look.

Watch Video
Back to overview

F-MOUNT

Being able to turn your bike into an all-weather commuter that has mudguards and other fittings can be a real plus, in particular when riding on wet and perhaps muddy roads and tracks on a regular basis. To make fitting easy, some of our bikes are F-MOUNT equipped. These integrated fittings mounts make adding mudguards fast and simple. Please note that some bikes require model-specific mudguards.

Watch Video
Back to overview

K-MOUNT

When using your bike in an urban environment, where you might not always have the option to use a specific bike stand, a kickstand is an ideal solution to park your bike safely. Some of our bikes come with a neatly integrated K-MOUNT, which makes fitting a MERIDA kickstand (or any commercial kickstand) easy. And if you don’t want to have a kickstand and prefer the clean appearance of your frame, the K-MOUNT is neatly tucked away underneath your chainstay, difficult to spot if you don’t know it is there.

Watch Video
Back to overview

C-MOUNT

Similar to our F-MOUNT, where various fixing points for mudguards are part of the frame offering, the C-MOUNT equipped bikes have the fixing points for a rear rack already integrated, making fitting fast, simple and reliable. The C-MOUNTS are an additional feature that improves the day-to-day versatility by adding loading capacity to your bike, ideal for commuting and shopping trips. Please note that some bikes require model-specific rear racks.

Watch Video
