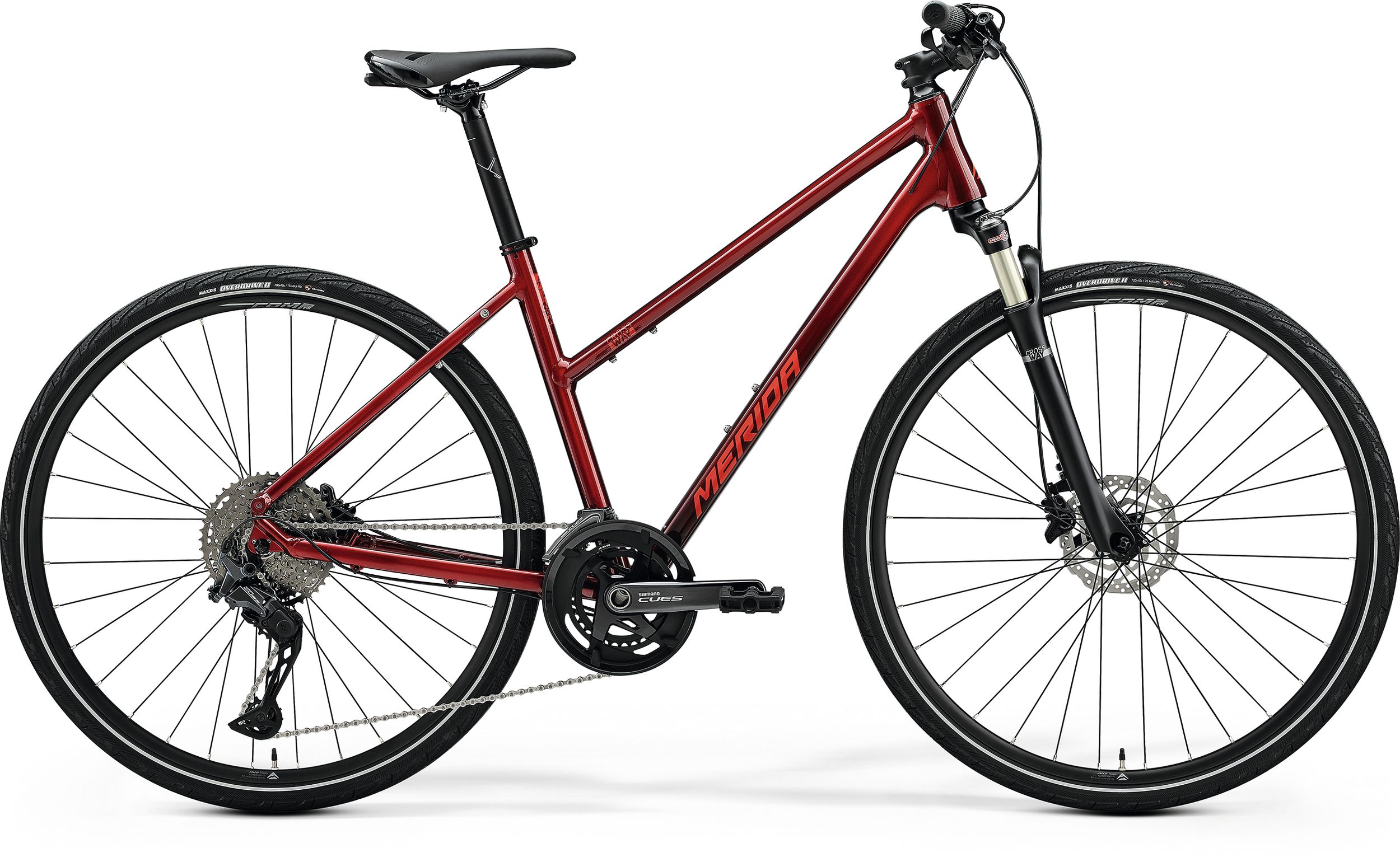

Top Shimano CUES equipped 700c trekking/hybrid bike ideal for tackling the daily commute, the weekend ride across smoother forest roads and gravel tracks or even being a reliable and comfortable companion on your latest touring trip. The super-smooth CUES drivetrain offers outstanding longevity and the lockable air suspension fork provides extra comfort and control on rougher roads or off-road tracks. Multiple fixing points allow fenders, a rear rack and a kickstand to be fitted.
The CROSSWAY family has been the MERIDA range's backbone since its introduction. They are used worldwide and are proven as a reliable, versatile and fun-packed way of getting around. Designed to provide a comfortable place to take in the surroundings thanks to an upright riding position and comfort focused equipment such as suspension fork, suspension seat posts and adjustable stems, they offer the perfect blend of comfort, enjoyment and all-round functionality. They are suitable for fitness training, commuting and leisurely rides through forests and on trails. Made from high-quality, lightweight aluminium with the ability to mount mudguards, racks and kickstands, the CROSSWAY range is the perfect choice for everyday riding. The fitted 700c wheels cover ground quickly, while the extra volume of the 40 mm wide tyres offers puncture protection, grip and comfort. All CROSSWAY models are available as a low step-through frame, making mounting and dismounting straightforward.
- Lightweight aluminium frame
- Comfort geometry
- Lockable air suspension fork
- Shimano hydraulic disc brakes
- Shimano CUES 11-speed drivetrain
- Multiple fixing points for rear rack and fenders
- material: aluminium
- 700x50C max. wheelsize
- 135x9 mm axle standard
- BSA bottom bracket standard
- Air
- 63 mm suspension travel
- Remote Lockout
- 700Cx2,0" max. wheelsize ---not available
- 2 piston
- 2 piston
- 46-32 teeth
- 170 mm-XXS/XS/S, 175 mm-M/XL
- 11-45 teeth
- 11 speed
- V-mount
- incl. MERIDA minitool
- material: aluminium
- 30.9 mm diameter
- 5 mm setback
- 20 mm inner width
- 17 mm height
- material: aluminium
- 700x40C
- fold
- reflective stripe, Silkworm
- 700x40C
- fold
- reflective stripe, Silkworm
- 100x9 mm width front hub
- 32 spoke holes
- Centerlock
- 135x9 mm width rear hub
- 32 spoke holes
- Centerlock
- weighed at frame size M
- Weight may vary depending on bike size, finish or possible specification changes due to supply chain issues.
- Total weight of bike, rider and luggage
| Frame Size | XS | S | M |
| Tire Sizes | 28" | 28" | 28" |
| St Seat Tubes Mm | 430 | 470 | 510 |
| Tt Top Tubes Mm | 565 | 580 | 590 |
| Cs Chain Stays Mm | 460 | 460 | 460 |
| Hta Head Tube Angles Deg | 70.5 | 71 | 71 |
| Sta Seat Tube Angle Deg | 74 | 73.5 | 73.5 |
| Bd Bottom Bracket Drops Mm | 70 | 70 | 70 |
| Ht Head Tube Lengths Mm | 130 | 140 | 155 |
| Fl Fork Lengths Mm | 468 | 468 | 468 |
| R Reachs Mm | 387 | 393 | 399 |
| S Stacks Mm | 620 | 631 | 645 |
| Wb Wheel Base Mm | 1081 | 1085 | 1096 |
| Sh Stand Over Height Mm | 639 | 639 | 639 |
