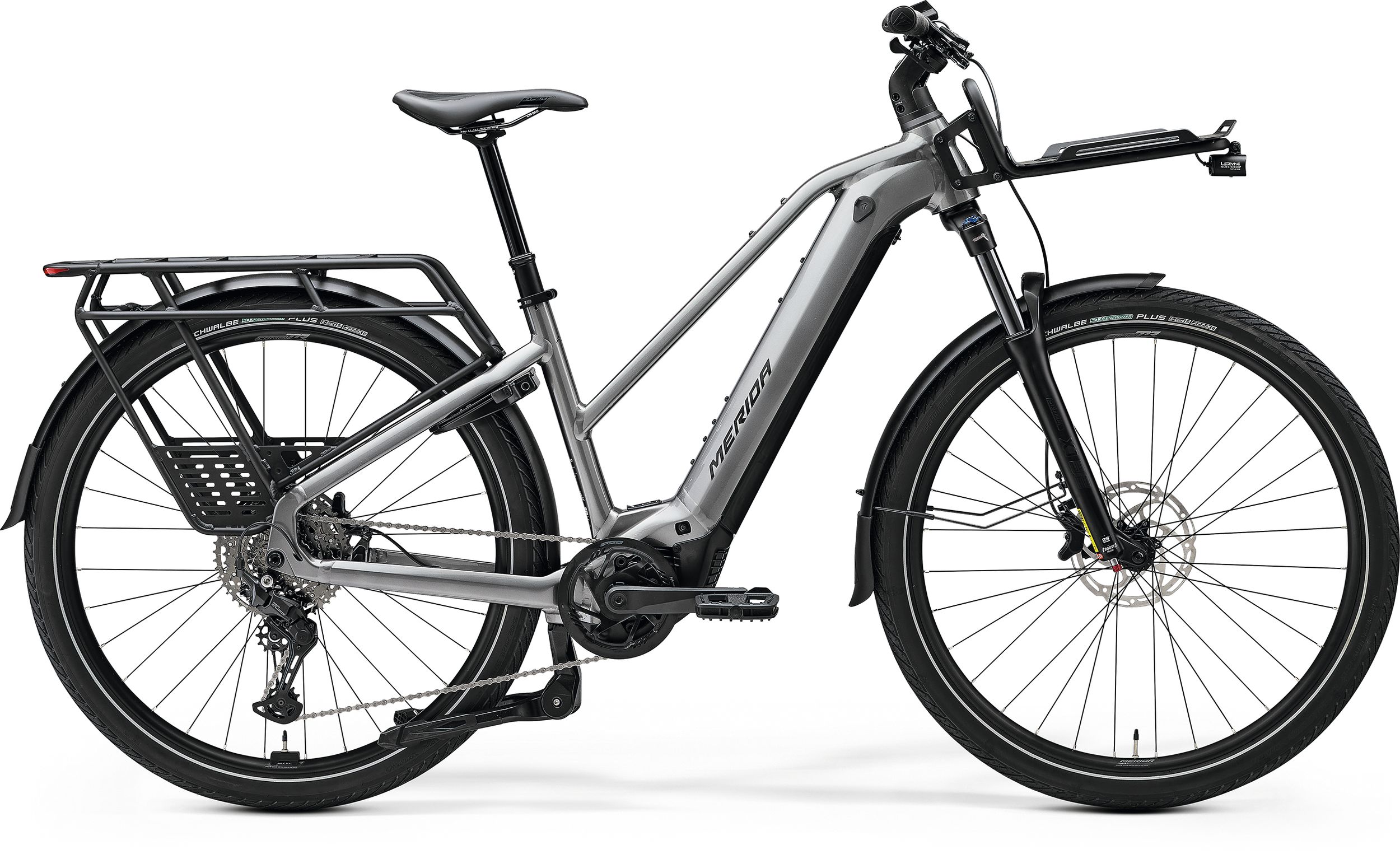

eFLOAT HD L 500 EQ



Get stuff places! With a heavy-duty front and rear rack fitted as standard plus Bosch CX power, you get all the comfort and convenience of our normal low step-through urban e-bikes but with added carrying capacity.
Find Dealer

The eFLOAT HD L 500 EQ gives you boosted cargo carrying capacity while being just as convenient as a regular low-step-through e-bike, thanks to our heavy-duty front and rear racks. With their combined 50 kg maximum load rating, the powerful Bosch CX drive unit plus 800 Wh removable battery, it's the ideal partner for work or play. Fast-rolling 29" wheels with 2.25" tyres have comfort boosted by a 120 mm air travel Suntour fork, and the bike comes fully equipped with a centre-mount stand, mudguards, lights and a lock as standard.

When life is busy, you need a bike that will help you get the most out of your time. Whether you’re getting to work, taking a cross-town shopping trip or escaping it all to recharge your batteries at the weekend, the MERIDA eFLOAT lineup has a bike for you. An e-bike is an incredibly versatile tool for work or play - but the eFLOAT lineup is more versatile than most thanks to practical and versatile frame designs paired with strong and supportive Bosch drive systems; each will give you more time to do the things that matter. Offering TK trekking, CC SUV-style and HD light cargo options, all bikes come with mudguards, a rear rack, a kickstand, a built-in lock, plus front and rear lights as standard, and each bike has a low step through frame option if you need more clearance. We also use our sleek WIRE PORT cable routing system as standard, so the bikes look as good as they ride. By combining our expertise in aluminium frame design with Bosch’s refined and powerful drive systems, numerous battery options and intuitive display units, we’ve created a trio of models that are subtly adapted to suit your needs.

  • All aluminium low step-through frame with 29" wheels
  • Heavy-duty front and rear racks with 50 kg total carrying capacity
  • Powerful Bosch CX drive unit and removable 800 Wh battery
  • Shimano CUES U6000 10-speed drivetrain, dropper seatpost
  • Suntour X1 air 120 mm fork, 2.25" tyres
  • Fully equipped with lights, guards, lock and centre-mount stand
  • material: aluminium
  • 29"x2.4" with fender max. wheelsize
  • 148x12mm axle standard
  • intube
frame size S, M
color GUNMETAL GREY (BLACK)
  • Air
  • 120mm suspension travel
  • 29x2.4" max wheelsize
headset Acros ICR MERIDA INTEGRATED neck w/ Blocklock
  • material: aluminium
  • 680mm width
  • 15mm rise
  • material: aluminium
  • 31.8mm diameter
  • S/M: 70mm L/XL: 90mm
grip MERIDA EXPERT TK
  • 34.9mm diameter
  • 0mm setback
  • S/M/L/XL: 150mm travel seatpost

*24% recycled material V-mount

pedal VP VPE-541P
chain Shimano LG500
  • 11-48 teeth
  • 10 speed
  • 622-55
  • wire
  • reflecting line
  • 622-55
  • wire
  • reflecting line
  • including removeable lever, 6/4mm allen key
drive unit Bosch Performance Line CX
display Bosch Purion 200
light rear Spanninga Commuter Glow XE integrated in MERIDA MIK HD carrier
Bike Frame Geometry Image
Frame Size S M
Tire Sizes 28" 28"
St Seat Tubes Mm 380 430
Tt Top Tubes Mm 588 605
Cs Chain Stays Mm 475 475
Hta Head Tube Angles Deg 115 120
Sta Seat Tube Angle Deg 67.5 67.5
Bd Bottom Bracket Drops Mm 62.5 62.5
Ht Head Tube Lengths Mm 115 120
Fl Fork Lengths Mm 538 538
R Reachs Mm 408 425
S Stacks Mm 647 651
Wb Wheel Base Mm 1176 1194
Sh Stand Over Height Mm 646 656
Str Stack To Reach Ratio Pc 1.58 1.53
Seat Post Mounting Depth Max Mm 290 300
Number Item Number Name Info Pieces Torque NM
1 A2191000255 HEAD SET Acros AZA-772 1
2 A2298000144 SCREW M5x0.8 L10mm 10 3~5
3 A2143000129 COVER for lock opening 1
4 A2263000074 COVER for battery 1
5 A2298000071 SCREW M5x0.8 L15mm 2 3~5
6 A2298000160 SCREW M4x0.7 L10mm 7 3~5
7 A2263000021 MOUNT for charging port 1
8 A2263000073 PROTECTOR for motor right side 1
9 A2300000256 SCREW M4x0.7 L10mm 1 3~5
10 A2263000072 PROTECTOR for motor left side 1
11 A2298000278 SCREW 3x16mm screw for plastic parts 2 2~4
12 A2232000064 CHAIN GUIDE for Bosch with 55mm chainline 1
13 A2300000204 NUT for fender; M6 1
14 A2300000521 SCREW M6x1 L25mm (TK, HD model) 1 10~12
15 A2300000520 SCREW A2063000002 1 10~12
16 A2258000117 CABLE PLUG for rear brake 1
17 A2311000149 RD-HANGER UDH 1
18 A2002000135 THRU AXLE EXPERT TR; L=178.5mm M12x1 TL=13.5mm 1
19 A2184000060 KICKSTAND for rear mount 1 10~12
20 A2184000095 KICKSTAND for center mount 1 15~17
25 A2298000178 SCREW M5x0.8 L8mm 4 6~8
26 A9085000045 MOUNT Bosch PT600/800 battery rail 1
