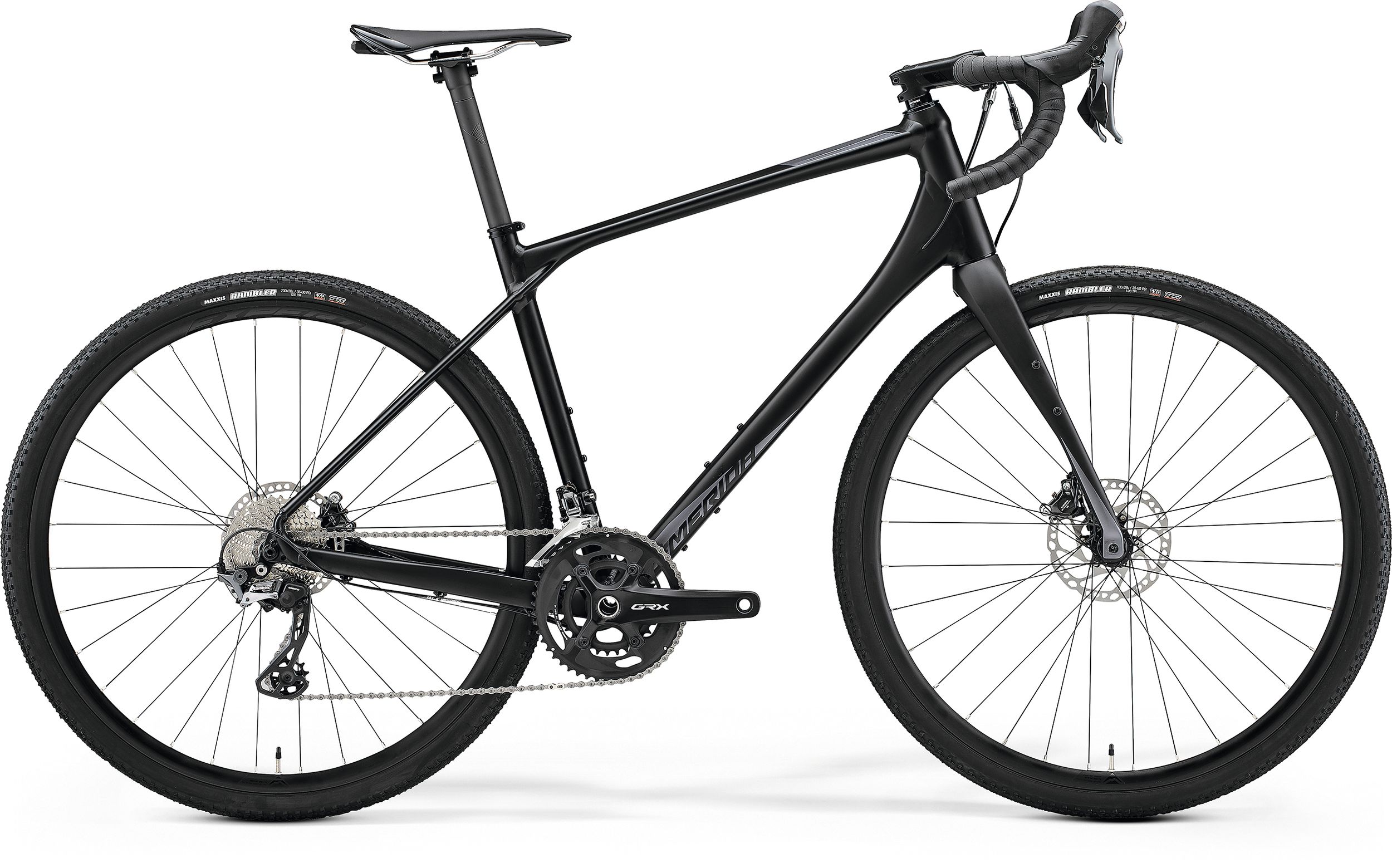

Fast-rolling yet hugely off-road capable 700c wheels, triple butted aluminium frame, full carbon fork and Shimano's gravel-specific GRX groupset are just some of the highlights of our top-level aluminium gravel bike. The SILEX 700 is ready for your next overnighter, loves to see if it can keep up with your local chain gang and helps to turn your daily trip to work into an enjoyable fitness jaunt. The 700 is a real jack of all trades.
There's a certain beauty in just riding without watching the time, heading wherever you feel the urge. For those rides, the test and award-winning SILEX makes total sense; our most comfortable and versatile road bike ever. With its modern MTB inspired geometry, long top and head tubes and short stem, it offers nimble, confidence-inspiring handling. While often seen on extended gravel and rough road outings, as well as bikepacking trips, the SILEX also found a strong following in comfort-orientated road riding connoisseurs as well as commuters and city traffic weavers. The more rugged 650b wheeled alternative to the 700c SILEX has managed to obtain multiple test wins as well as comfort awards, and is coming back in the form of the fully loaded and wirelessly shifted SILEX+ LIMITED. The 'classic' 700c SILEX also impressed the press with the 400 securing a test win in Cycling Plus, being certified as having a 'huge fun factor', 'superb riding position' and 'brilliant off-road handling'.
- Trippel redusert aluminiumsramme og karbon gaffel
- Stabilt 700C hjulsett for god kontroll på asfalt og grus
- Integrert kabelføring som gir ett rent uttrykk og gjør det lettere å benytte vesker og tilbehør
- Komfort-fokusert geometri
- MTB-inspirerte egenskaper for økt trygghet i ulendt terreng
- 3 fester til flaskeholdere og festepunker for bagasje/vesker på gaffelen
- material: aluminium
- 700x38C / 650Bx45C max.WHS
- 100x12/142x12mm axle standard
- BB86 bottom bracket standard
- Tapered
- material: carbon
- 700x38C / 650Bx45C max. wheelsize
- Hydraulic Disc
- Hydraulic Disc
- material: carbon
- 30.9mm diameter
- 0mm setback
- V-mount
- incl. MERIDA minitool
- 48-31 teeth
- 170 mm-XS/S, 172,5 mm-M, 175 mm-L/XL
- 11-34 teeth
- 11 speed
- 19mm inner width
- 24mm height
- material: aluminium
- Tubeless ready (tubeless tape and valves not included)
- 700x38C
- fold
- TR
- EXO
- 700x38C
- fold
- TR
- EXO
- 100x12mm width front hub
- 32 spoke holes
- centerlock
- 142x12mm width rear hub
- 32 spoke holes
- centerlock
- including removable lever
- 6/4mm allen key
| Rammestørrelse | XS | S | M | L | XL |
| Dekkstørrelse | 28" | 28" | 28" | 28" | 28" |
| ST - Seat Tubes (mm) | 440 | 470 | 500 | 530 | 560 |
| TT - Top Tube (mm) | 548 | 554 | 579 | 600 | 620 |
| CS - Chain Stays (mm) | 430 | 430 | 430 | 430 | 430 |
| HTA - Head Tube Angles (°) | 71 | 71 | 71 | 71 | 71 |
| STA - Seat Tube Angle (°) | 74 | 74 | 74 | 74 | 74 |
| BD - Bottom Bracket Drops (mm) | 75 | 75 | 75 | 75 | 75 |
| HT - Head Tube Length (mm) | 160 | 180 | 200 | 220 | 240 |
| FL - Fork Length (mm) | 397 | 397 | 397 | 397 | 397 |
| R - Reach (mm) | 380 | 380 | 400 | 415 | 430 |
| S - Stack (mm) | 587 | 606 | 625 | 644 | 663 |
| WB - Wheel Base (mm) | 1027 | 1034 | 1060 | 1082 | 1103 |
| SH - Stand Over Height (mm) | 716 | 744 | 772 | 799 | 826 |
| Number | Item Number | Name | Info | Pieces | Torque NM |
| 1 | A2300000227 | SCREW | M3x0.5 L10mm | 1 | 3~4 |
| 2 | A2300000226 | SCREW | M3x0.5 L16mm | 1 | 3~4 |
| 3 | A2302000018 | NUT | for rear axle M12x1,5 | 1 | |
| 4 | A2311000062 | RD-HANGER | DH - 054 for ROAD-RD | 1 | |
| 5 | A2240000010 | CABLE GUIDE | for FD | 1 | |
| 6 | A2298000093 | SCREW | M4x0.7 L6mm | 1 | 3~4 |
Teknologi
