- material: aluminium
- 700C wheelsize
- 142x12mm axle standard
- intube
- max. 504 Wh
- eSPRESSO L XS(43L)-S(47L)-M(51L)-L(55L)
- Coil
- 63mm suspension travel
- 2 piston
- 2 piston
- material: aluminium
- 34.9mm diameter
- 0mm setback
- V-mount
- VPE-891
- 38 teeth
- Shimano FC-E6100
- 170 mm-XS/S/M 175 mm-L/XL
- 11-42 teeth
- 10 speed
- 20mm inner width
- material: aluminium
- 622-50
- wire
- reflecting line
- 622-50
- wire
- reflecting line
- 100x15mm width front hub
- 32 spoke holes
- Centerlock
- 142x12mm width rear hub
- 36 spoke holes
- Centerlock
- including removeable lever, 6/4mm allen key
- 60Nm
- 504Wh
weighed at frame size M without pedals
| Rammestørrelse | XS | S | M | L | XL |
| Dekkstørrelse | 28" | 28" | 28" | 28" | 28" |
| ST - Seat Tubes (mm) | 430 | 470 | 510 | 550 | 590 |
| TT - Top Tube (mm) | 565 | 580 | 590 | 610 | 630 |
| CS - Chain Stays (mm) | 478 | 478 | 478 | 478 | 478 |
| HTA - Head Tube Angles (°) | 70.5 | 71 | 71 | 71.5 | 71.5 |
| STA - Seat Tube Angle (°) | 75 | 74.5 | 74.5 | 74 | 74 |
| BD - Bottom Bracket Drops (mm) | 70 | 70 | 70 | 70 | 70 |
| HT - Head Tube Length (mm) | 130 | 140 | 155 | 175 | 205 |
| FL - Fork Length (mm) | 475 | 475 | 475 | 475 | 475 |
| R - Reach (mm) | 397 | 403 | 409 | 417 | 429 |
| S - Stack (mm) | 626 | 637 | 651.5 | 672.5 | 701 |
| WB - Wheel Base (mm) | 1114 | 1118 | 1129 | 1138 | 1159.5 |
| SH - Stand Over Height (mm) | 724 | 758 | 793 | 828 | 864 |
| Number | Item Number | Name | Info | Pieces | Torque NM |
| 1 | A2300000048 | SCREW | M4x0.7 L8mm | 1 | 3~5 |
| 2 | A2311000067 | RD-HANGER | DH-057 | 1 | |
| 3 | A2300000129 | SCREW | M3x0.5 L10mm | 2 | 2~4 |
| 4 | A2258000012 | CABLE GUIDE | for M5 fixation | 1 | |
| 5 | A2298000120 | SCREW | M5x0.8 L12mm | 1 | 3~5 |
| 6 | A2300000468 | SCREW | M8x1.25 L18.5mm | 3 | 11~12 |
| 7 | A2300000469 | SCREW | M8x1.25 L23mm | 3 | 11~12 |
| 8 | A2136000017 | MOUNT | for bottle cage | 1 | |
| 9 | A2298000144 | SCREW | M5x0.8 L10mm | 6 | 3~5 |
| 10 | A2298000145 | SCREW | M5x0.8 L20mm | 1 | 3~5 |
| 11 | A2143000097 | BLIND PLUG | 1 | ||
| 12 | A2161000127 | CABLE GUIDE | 1 | ||
| 13 | A2300000500 | COVER PIN | 1 | 3~5 | |
| 14 | A2161000058 | COVER MOUNT | for ENEGRY GUARD | 1 | |
| 15 | A2161000115 | COVER | for 504Wh battery | 1 | |
| 16 | A2300000213 | SCREW | M3x0.5 L13.5mm | 4 | 2~4 |
| 17 | A2143000098 | BLIND PLUG | for key opening | 1 | |
| 18 | A2258000079 | CABLE PLUG | for RD | 1 | |
| 19 | A2258000099 | CABLE PLUG | for rear brake and speed sensor | 1 | |
| 21 | CABLE GUIDE | SMART ENTRY | |||
| 22 | A2143000076 | COVER | for carrier mount | 2 | |
| 23 | A2298000142 | SCREW | M6x1.0 L12mm | 2 | 6~8 |
Highlights

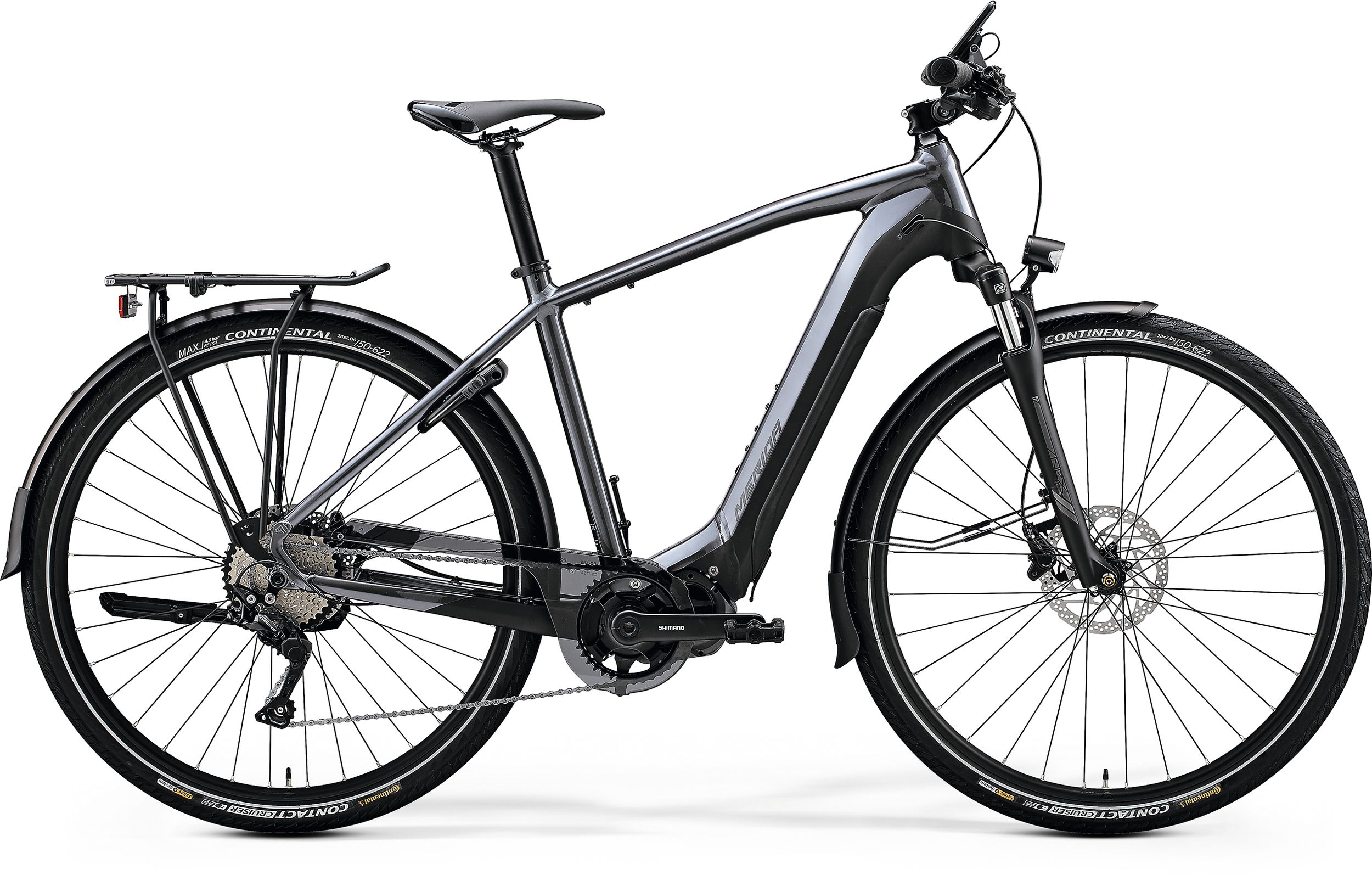

HFS-hydroforming Prolite 66 triple butted aluminium frame with internal battery technology, based around fast rolling 700c wheels and with commuting and leisure riding in mind. A higher front end and a compact geometry make for a more upright and extremely comfortable riding position. Comes equipped (or ready to be equipped) with mudguards, rear rack, side stand, lock and lights.
A two-component battery cover, which offers the perfect protection for the internal battery of these models. The softer (outer) layer reduces noises, seals the downtube perfectly and absorbs hits from trail debris easily, while the harder (inner) layer ensures that the battery does not get damaged and gives it the structural shape.
The new Shimano BT-E8035 internal battery has a very compact size design which is optimised for the integrated use in the down tube. The battery is equipped with modern, up-to-date battery cells, which are very durable and long lasting. Even after 1000 charging cycles it still has 60% of the capacity, which is currently the best in its class.
The eSPRESSO range comes either in regular or equipped version, which features mudguards, lights, rear rack and a kickstand. That means you are ready for anything from the moment you leave the store. And if your bike is non-equipped, then you have all fixing points in place, ready for when you want to add fenders and a carrier.
Our 'classic' eSPRESSO range sits on fast rolling 700c wheels, ideal for rides on roads, lanes and smooth tracks. We fit 50 mm wide tyres with reflective side walls and puncture protection that will get you to your destination quickly and safely. On the other hand, at our 650B eSPRESSO TK and CC, big volume 650B tyres are specified, which not only offer better comfort but also guarantee better puncture protection.
The system weight of a bike is the combined weight of bike, rider and additional luggage. The allowed system weight is 140 kg. As an e-bike is already heavier than a regular bike, and as it also makes it easier to transport larger amounts of luggage, it is imperative to certify a higher overall system weight. All MERIDA e-bikes, as well as all used componentry, go through a rigorous and e-bike specific testing schedule which mimics the higher forces and strains to guarantee the rider the highest level of safety.
Vi har integrert kabel/wire-trekking på alle våre eSPRESSO-modeller. Kabler/wire er trukket gjennom rammen, og innganger og utganger går gjennom smidige gjennomføringer. Det er bare et smart system for integrert trekking og fiksering som garanterer pålitelig trekking uten ulyder, og gir sykkelen et stilrent utseende.
Med vår eSPRESSO-serie kan du velge mellom den klassiske diamant-rammen eller ramme med ekstra lavt innsteg (men likevel høy torsjonsstivhet) slik at du kan velge den ideelle sykkelen for deg. Vi tilbyr også en rekke forskjellige kombinasjoner av motor og batteri med vår eSPRESSO-serie. Det gir deg enda flere muligheter til å velge den perfekte eSPRESSO-sykkelen.
