brakes V-Brake Linear
material: aluminium wheel size: 26"
frame size XS, S, M
coil 63 STR

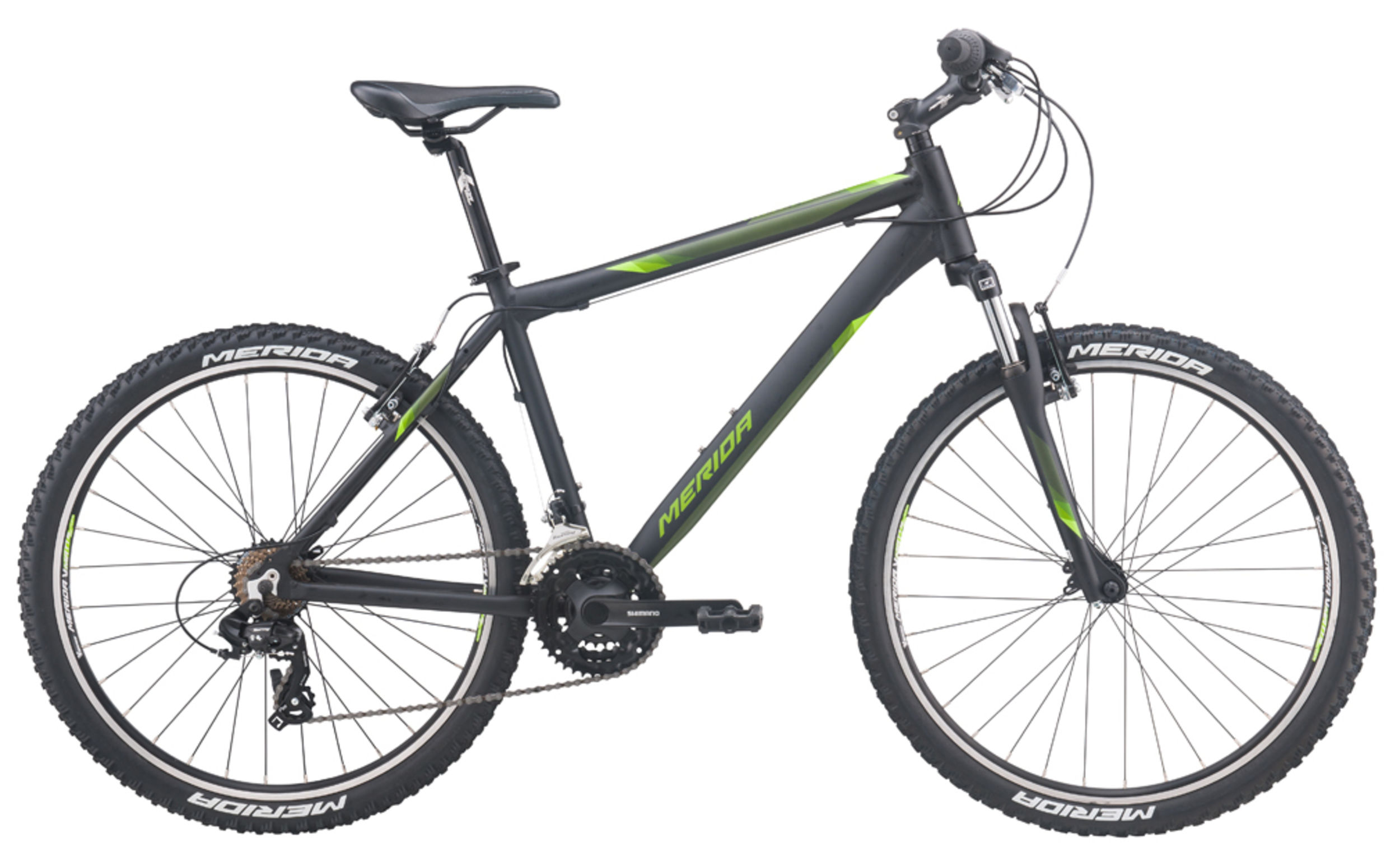

color BLACK (GREEN)
derailleur (f) Shimano TZ30
derailleur (r) Shimano RD-TX35
shifter front Shimano Revo RS-35
shifter rear Shimano Revo RS-35
brake front V-Brake Linear
brake rear V-Brake Linear
chainwheel Shimano TY301; 42-34-24 ATC
chain CN-7s
crank 170mm
Quick Release
Quick Release
rim MERIDA Double V
14-28 ATC 7 Speed
26x2.1" wire
26x2.1" wire
spokes Black steel
handlebar stem A-Head OS dia-cast
handlebar MTB Steel 620
headset A-Head OS
seat post MERIDA speed 27.2
saddle Merida Comfort DDK-200
max. weight 135 kg
Frame Size | XS | S | M |
Tyre Sizes | 26" | 26" | 26" |
ST seat tube [mm] | 343 | 381 | 432 |
TT top tube [mm] | 540 | 550 | 560 |
CS chain stay length [mm] | 425 | 425 | 425 |
HTA head tube angle [°] | 69.5 | 69.5 | 70 |
STA seat tube angle [°] | 73.5 | 73.5 | 73 |
BD bottom bracket drop [mm] | 55 | 55 | 55 |
HT head tube [mm] | 115 | 125 | 135 |
FL fork length [mm] | 475 | 475 | 475 |
R reach [mm] | 364 | 371 | 372 |
S stack [mm] | 594 | 604 | 615 |
WB wheel base [mm] | 1028 | 1038 | 1038 |
SH stand over height [mm] | 589 | 621 | 674 |
