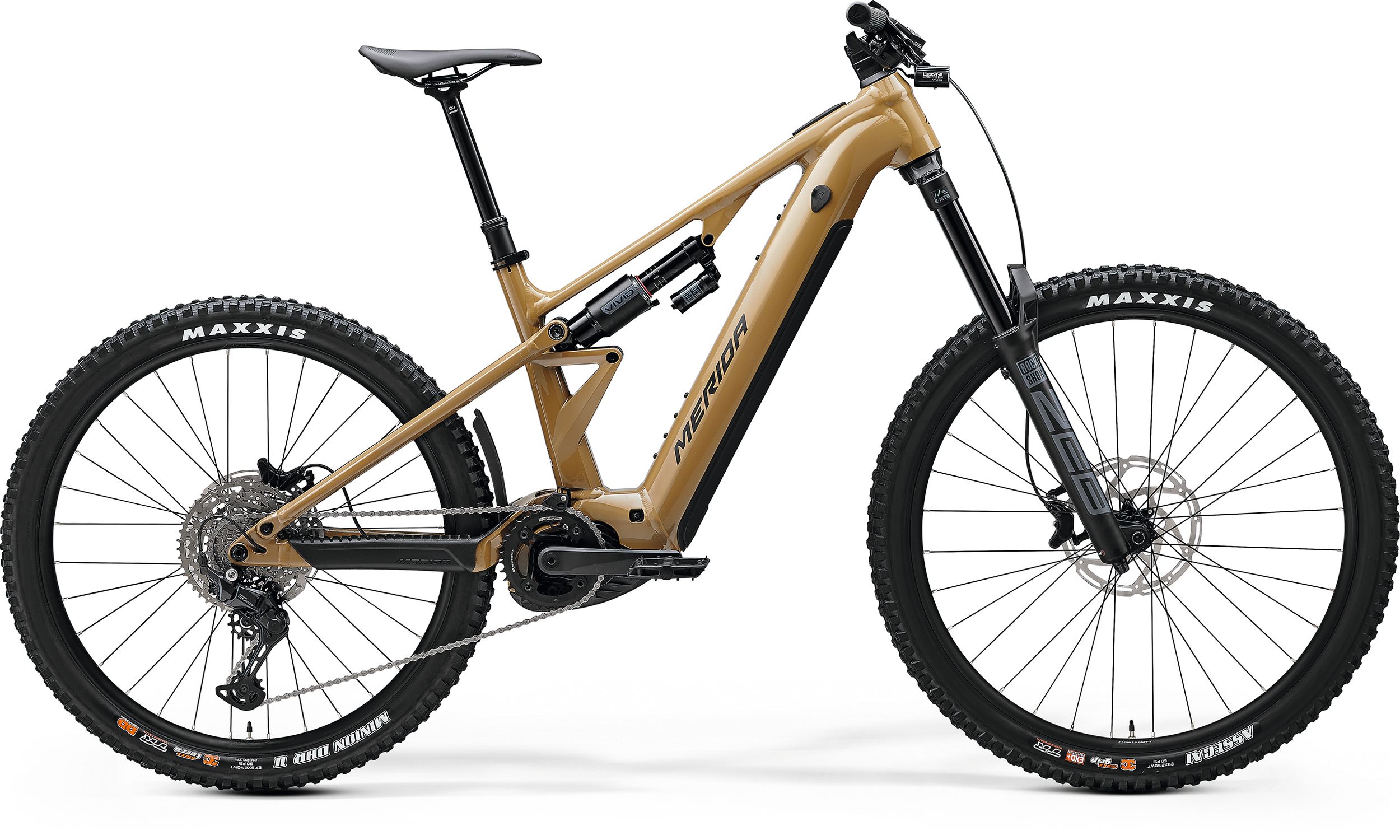

eONE-EIGHTY 500



Bike parks, big mountains and more. Designed to ride the roughest trails on repeat, we've paired our tough 180 mm travel aluminium frame with the powerful Bosch CX drive unit and an 800 Wh battery.
Find Dealer
  • *All specifications listed are subject to change without notice. *Recommended Retail Prices are subject to change without notice.

  • The eONE-EIGHTY 500 is built for taking on the gnarliest trails wherever you find them. With 180 mm of travel at either end from our robust aluminium frame, a RockShox Zeb Base fork and Vivid Base shock mean this bike is ready to eat up rock gardens for breakfast, drops for lunch and some gaps for dinner - or whatever you're hungry for. The Bosch CX drive unit and a huge 800 Wh battery mean you can repeat that for as long as you like too, while our mixed wheel size setup means this is a bruiser that can dance.

    Calling all heavy hitters, bike park senders and big mountain brawlers, this one’s for you. The new eONE-EIGHTY has landed, and it’s ready to ride the biggest lines and burliest tracks - and you can say goodbye to waiting in the uplift queue because it can rip and repeat all day long thanks to a big 800 Wh battery and Bosch CX power.It’s our longest travel e-bike ever, with 180 mm of suspension at either end on a robust aluminium frame with a new suspension platform that builds on our award-winning FAST kinematic from the eONE-SIXTY and sends it to new heights. Add in coil shock compatibility, mixed-wheel size only setup, plus a whole host of other features and getting rowdy is where the eONE-EIGHTY starts, not finishes. Up or down, it’s ready to rock.It’s also our first e-MTB to use the Bosch Performance Line CX drive unit, which offers powerful assistance and silent performance with 85 Nm on tap. There’s a serious amount of range on offer too, thanks to the new 800 or 600 Wh battery - plus the option of a 250 Wh range extender. You can easily remove the battery for off-bike charging or replacement on a really big ride, plus we’ve also got a new cover that protects from dirt, impacts and moisture - and it holds itself in place with the magic of Fidlock magnets.It’s rated for Category 5 riding too, so you can get stuck into as many bike park laps or downhill tracks as you like without voiding the 5-year warranty.

    • Tough aluminium frame with 180 mm rear wheel travel and mixed wheel sizes as standard for fun and agile handling
    • RockShox Zeb Base fork with 180 mm travel, RockShox Vivid Base rear shock
    • Shimano CUES U6000 10-speed drivetrain
    • MERIDA TEAM TR II tubeless ready wheelset
    • User removable 800 Wh battery with optional 250 Wh range extender, powerful Bosch CX drive unit
    • Reach-based AGILOMETER sizing system with MERIDA EXPERT TR II size-specific dropper post (XS: 125 mm, S: 150 mm, M/L: 200 mm, XL: 230 mm travel seatpost)
    • material: aluminium
    • 180mm suspension travel
    • 27.5" x 2.6" max. wheelsize
    • 148x12mm axle standard
    frame size XShort, Short, Mid, Long, XLong
    • Air
    • 180mm suspension travel
    • Tapered
    • 44mm fork offset
    • 29x2.6" max wheelsize
    color RIVER CLAY (BLACK)
    • Air
    • 180 STR
    • Tapered
    • 44mm fork offset
    • 29x2.6" max WHS
    drive unit Bosch Performance Line CX
    display Bosch Purion 200
    battery lock Abus Key
    shifter front Shimano SL -MT500-L
    shifter rear Shimano Cues U6000-10
    chain Shimano LG500
    • 15x100mm width front hub
    • 32 spoke holes
    • Centerlock
    • 12x148mm width rear hub
    • 32 spoke holes
    • Centerlock
    • 110x15mm width front hub
    • 148x12mm width rear hub
    • 28mm inner width
    • material: aluminium
    • Tubeless ready (tubeless tape and valves not included)
    • front 29"
    • rear 27.5"
    • 11-48 teeth
    • 10 speed
    • 29x2.5 "
    • fold
    • TR EXO+ 3C MaxxGrip
    • 27.5x2.4 "
    • fold
    • 3C DD TR MaxxTerra
    spokes Black stainless
    • material: aluminium
    • 35mm diameter
    • 0° stem angle
    • Supernova mount
    • 40 mm all sizes
    • 780mm width
    • XS,S 20RHB
    • M,L,XL 30RHB
    headset Acros ICR MERIDA EXTERNAL neck w/ Blocklock
    • 34.9mm diameter
    • 0mm setback
    • XS: 125mm travel seatpost - S: 150mm travel seatpost - M/L: 200mm travel seatpost - XL: 230mm travel seatpost
    • 28% recycled material
    • V-mount
    • weighed at frame size M
    • Weight may vary depending on bike size, finish or possible specification changes due to supply chain issues.
    light rear USB REAR Light CG-214RG
    Bike Frame Geometry Image
    Frame Size XShort Short Mid Long XLong
    Tyre Sizes 29/27.5" 29/27.5" 29/27.5" 29/27.5" 29/27.5"
    ST seat tube [mm] 400 410 425 445 465
    TT top tube [mm] 556 577 604 630 652
    CS chain stay length [mm] 435 435 435 435 435
    HTA head tube angle [°] 64.5 64.5 64.5 64.5 64.5
    STA seat tube angle [°] 78.5 78.5 78.5 78.5 78.5
    BD bottom bracket drop [mm] 12 12 12 12 12
    HT head tube [mm] 110 115 120 125 130
    FL fork length [mm] 600 600 600 600 600
    R reach [mm] 415 435 460 485 505
    S stack [mm] 652 657 661 666 670
    WB wheel base [mm] 1195 1218 1245 1272 1294
    Str Stack To Reach Ratio Pc 1.57 1.51 1.44 1.37 1.33

    To reduce production and delivery times, we are sometimes forced to make last-minute specification changes. Please be aware that those changes might not be reflected on these product pages and images.
