brakes Jak-7 Mechanical Disc [F] 160mm [R] 160mm

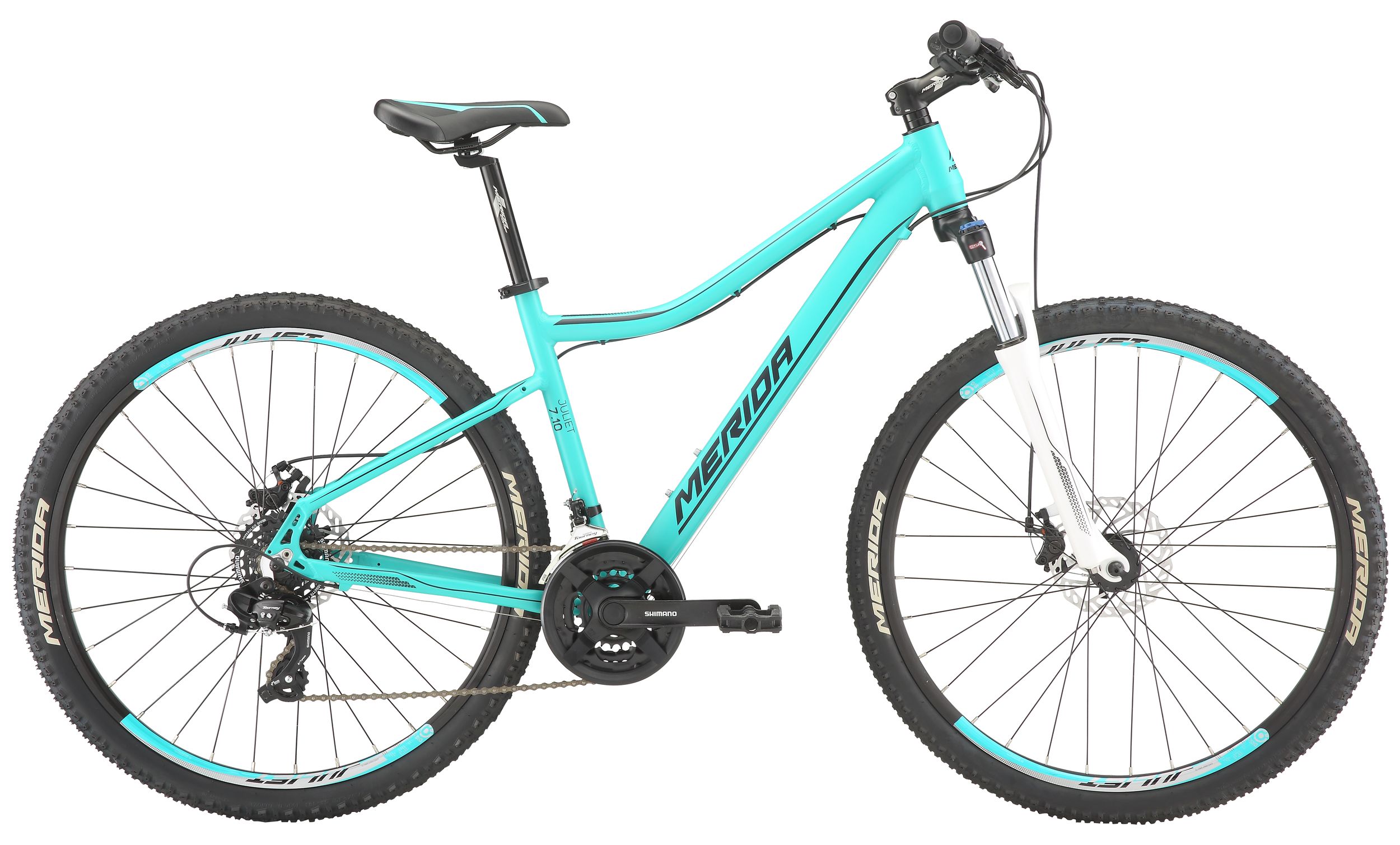

frame JULIET SPEED
frame size XS, S, M, L
fork Zoom 389A
color teal (black)
shock no
derailleur (f) FD-TY300, TOURNEY
derailleur (r) RD-TY300, TOURNEY
shifter front Shimano ST-EF500
brake lever Jak-7
brake front Jak-7 Mechanical Disc [F] 160mm [R] 160mm
chainwheel Shimano TY301 42-34-24 ATC
chain CN-7s
hub front Alloy Disc QR
hub rear Alloy Disc QR
rim Merida double V
freewheel Shimano CS-HG20-12-32, 7s
tyre front MERIDA 27.5x2.1" wire
tyre rear MERIDA 27.5x2.1" wire
spokes Black steel
handlebar Merida comp OS 660 R25
headset A-Head OS
seat post MERIDA speed 27.2
saddle MERIDA Sport comfort
fender no
Frame Size | XS | S | M | L |
Tyre Sizes | 27.5" | 27.5" | 27.5" | 27.5" |
ST seat tube [mm] | 343 | 381 | 432 | 470 |
TT top tube [mm] | 536 | 546 | 561 | 571 |
CS chain stay length [mm] | 430 | 430 | 430 | 430 |
HTA head tube angle [°] | 69.5 | 69.5 | 70 | 70 |
STA seat tube angle [°] | 74.5 | 74.5 | 74.5 | 74.5 |
BD bottom bracket drop [mm] | 65 | 65 | 65 | 65 |
HT head tube [mm] | 95 | 100 | 110 | 120 |
FL fork length [mm] | 493 | 493 | 493 | 493 |
R reach [mm] | 372 | 380 | 392 | 399 |
S stack [mm] | 602 | 607 | 618 | 628 |
WB wheel base [mm] | 1039 | 1050 | 1060 | 1071 |
SH stand over height [mm] | 582 | 612 | 664 | 694 |
Body Height Cm | < 163 | 157 - 173 | 167 - 183 | > 177 |
