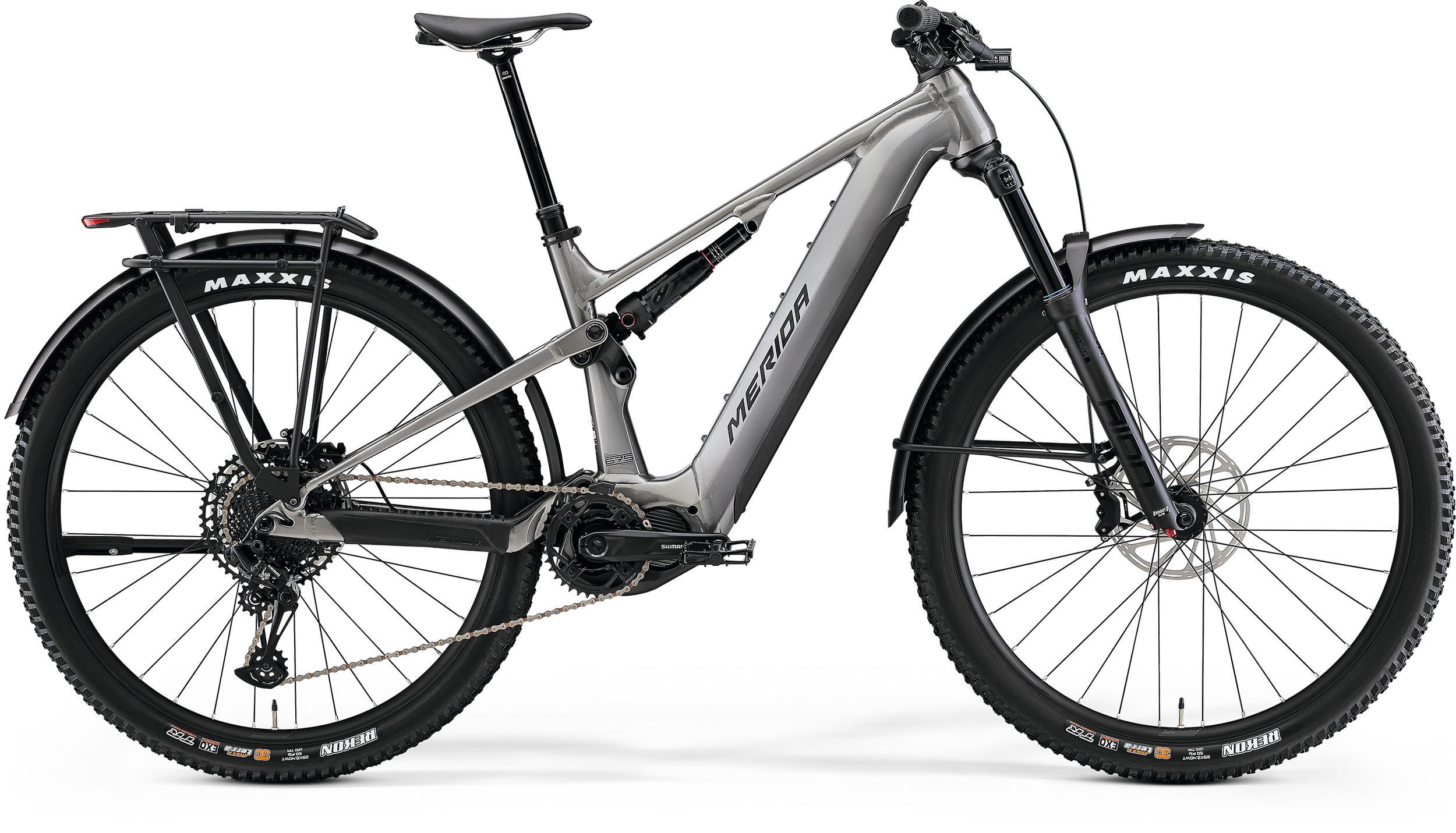

eONE-FORTY 675 EQ

eONE-FORTY 675 EQ



Ready for the city or the countryside. With lights, mudguards and a rear rack as standard and our robust aluminium frame featuring a high-capacity 750 Wh battery, this rugged machine can tackle any mountain thanks to quality kit from SRAM, Suntour and RockShox.
Find Dealer
  • THIS IS AN ARCHIVED MODEL

  • VIEW ALL CURRENT MODELS
  • With lights, mudguards and a rear rack as standard, it's ready for the city or the countryside. The eONE-FORTY 675 EQ features our tough aluminium frame and a 750 Wh user removable battery to give you a huge assisted range, which can be boosted further with our optional 360 Wh range extender. Thanks to the combination of our award-winning, low-maintenance suspension platform and the smooth Suntour Aion fork and RockShox rear shock, it can take on any trail, while the 12-speed SRAM NX Eagle drivetrain and powerful drive unit can turn mountains into molehills.

    The new eONE-FORTY has a big range. That's not just because of the 750 Wh battery that can be boosted with a 360 Wh range extender - it's because it's an incredibly versatile machine that can tackle rugged mountain bike trails one day and be your city-ready SUV partner the next. With a suspension platform and geometry derived from our award-winning trail and enduro bike range, it's got peerless off-road performance and handling that's confident and capable wherever you take it. With our proven suspension design giving 143 mm of rear wheel travel and 150 mm up front, it also features our simplified AGILOMETER sizing system that allows you to choose the handling you want thanks to super low standover heights. Go long for more off-road stability, go shorter for more agility. We also offer the eONE-FORTY in fully-equipped EQ models, which come with lights, mudguards and a rack as standard, making it the perfect rugged urban partner. range extender available separately, 630 Wh battery and no range extender on eONE-FORTY 400

    • Durable LITE aluminium frame with 143 mm rear wheel travel
    • Suntour Aion fork with 150 mm travel and RockShox Deluxe rear shock
    • SRAM NX Eagle 12-speed, wide-range drivetrain
    • User-removable 750 Wh battery with optional 360 Wh range extender, powerful Shimano EP801 drive unit
    • Full 29" with option to run mixed 'mullet' wheel sizes
    • Comes fully equipped with lights, mudguards and rack
    • material: aluminium
    • 143 mm suspension travel
    • 27.5x2.8" max. wheelsize
    • 148x12 mm axle standard
    • intube
    frame size XShort, Short, Mid, Long, XLong
    color GUNMETAL GREY (BLACK)
    • Air
    • 150 mm suspension travel
    • Tapered
    • 44 mm fork offset
    • 29x2.5" max. wheelsize
    shock Rock Shox Super Deluxe Select
    headset Acros ICR MERIDA EXTERNAL neck w/ Blocklock
    • 780 mm width
    • 20 mm rise
    • material: aluminium
    • 35 mm diameter
    • 0° stem angle
    • Supernova mount
    • 40 mm all sizes
    grip MERIDA EXPERT EC
    derailleur (r) Sram NX Eagle
    • 34.9 mm diameter
    • 0 mm setback
    • XS: 125 mm travel seatpost - S: 150 mm travel seatpost - M/L/XL: 200 mm travel seatpost
    seat clamp MERIDA EXPERT
    • V-mount
    • incl. MERIDA minitool
    pedal VP VPE-527
    chain Sram SX Eagle
    • 10-50 teeth
    • 12 speed
    • 110x15 mm width front hub
    • 32 spoke holes
    • 6 bolt
    • 148x12 mm width rear hub
    • 32 spoke holes
    • 6 bolt
    • 110x15 mm width front hub
    • 148x12 mm width rear hub
    • 28 mm inner width
    • material: aluminium
    • Tubeless ready (tubeless tape and valves not included)
    • 29"
    • 29x2.4"
    • fold
    • 3C EXO MaxxTerra
    • 29x2.4"
    • fold
    • TR 3C EXO MaxxTerra
    • including removeable lever, 6/4 mm allen key
    spokes Black stainless
    light front Lezyne E-Bike Power STVZO E115, reverse MERIDA Custom Mount
    light rear Spanninga Co mmuter Glow XE integrated in MERIDA MIK HD carrier
    carrier Massload MA 013
    fender Winning EOF-204
    kickstand Atranvelo ED-100-PC
    battery Trendpower Internal Battery 750Wh
    display Shimano SC-EN600
    • Total weight of bike, rider and luggage
    Bike Frame Geometry Image
    Frame Size XShort Short Mid Long XLong
    Tyre Sizes 29" 29" 29" 29" 29"
    ST seat tube [mm] 400 410 425 445 465
    TT top tube [mm] 543 564 585 607 628
    CS chain stay length [mm] 449 449 449 449 449
    HTA head tube angle [°] 66.5 66.5 66.5 66.5 66.5
    STA seat tube angle [°] 79.7° 79.7° 79.6° 79.5° 79.5°
    BD bottom bracket drop [mm] 35.5 35.5 35.5 35.5 35.5
    HT head tube [mm] 100 105 110 115 120
    FL fork length [mm] 557 557 557 557 557
    R reach [mm] 431 451 471 491 511
    S stack [mm] 616 620 624 628 633
    WB wheel base [mm] 1191 1213 1235 1257 1280
    SH stand over height [mm] 758 752 746 744 739
    No. Item-No. Name Info Pieces Torque NM
    1 A2300000724 BOLT M6x1 OD10mm L49.2mm 1
    2 A2298000113 SCREW M6x1 L16mm 2 8~10
    3 A2294000196 WASHER for M6 sunkenhead screw OD16mm 1
    4 A2036000030 MOUNT for shock with bushing 1
    5 A2300000667 SCREW M8x1.25 L40mm 1 11~12
    6 A2294000102 WASHER OD21mm ID17.1mm H3mm 5
    7 A2221000058 BEARING 6803V-2RS OD26mm ID17mm W5mm 4 4
    8 A2294000182 LOCK RING for ID26 2
    9 A2300000684 SCREW M15x1 L16mm 2 23~25
    10 A2294000105 WASHER OD17mm ID12.1mm H2mm 1
    11 A2221000035 BEARING 6801V-2RS OD21mm ID12mm W5mm 1
    12 A2300000475 BOLT M6x1 OD10/12mm L55mm 1
    13 A2294000205 WASHER OD15.5mm ID10.1mm H2mm 1
    14 A2221000034 BEARING 6800V-2RS OD19mm ID10mm W5mm 1
    15 A2294000197 WASHER for M6 sunkenhead screw OD18.5mm 1
    16 A2221000040 BEARING 172607V-2RS OD26mm ID17mm W7mm 1
    17 A2300000279 BOLT M6x1 OD15/17mm L55mm 1
    18 A2294000016 WASHER OD19mm ID15.1mm H3mm 1
    19 A2221000043 BEARING 3802V-2RS OD24mm ID15mm W7mm 1
    20 A2300000609 SCREW M10x1 L15mm 1 15~17
    21 A2302000082 NUT M15x1 flipchip 2
    22 A2300000611 SCREW M15x1 L18.5mm 2 23~25
    23 A2294000212 WASHER OD14mm ID10.1mm H3.1mm 4
    24 A2221000060 BEARING 6900V-2RS OD22mm ID10mm W6mm 2
    25 A2294000211 LOCK RING for ID22 2
    26 A2300000652 BOLT M6x1 OD10mm L18.8mm 2
    27 A2031000091 LINK 1
    1 A2191000233 HEAD SET Acros AZA-718 1
    2 A2002000135 THRU AXLE EXPERT TR; L=178.5mm M12x1 TL=13.5mm 1
    3 A2161000079 COVER 1
    4 A2300000231 SCREW M3x0.5 L8mm 1 0.5~1
    5 A2143000129 COVER for lock opening 1
    6 A2263000042 COVER for battery 1
    7 A2111000010 CABLE GUIDE 2
    8 A2161000127 CABLE GUIDE 1
    9 A2298000144 SCREW M5x0.8 L10mm 6 3~5
    10 A2300000468 SCREW M8x1.25 L18.5mm 3 11~12
    11 A2300000469 SCREW M8x1.25 L23mm 3 11~12
    12 A2263000043 COVER for engine 1
    13 A2300000230 SCREW M4x0.7 L12mm 3 2~4
    14 A2143000175 CABLE GUIDE 1
    15 A2184000060 KICKSTAND
    16 A2116000278 PROTECTOR 1
    17 A2300000318 SCREW M4x0.7 L12mm 5 3~5
    18 A2158000094 PROTECTOR for chain stay 1
    19 A2263000044 PROTECTOR for engine 1
    20 A2258000099 CABLE PLUG for brake and speed sensor/light 1
    21 A2311000102 RD-HANGER UDH 1
    22 A2136000076 MOUNT PM200 1
    23 A2298000409 SCREW M6x1 L12mm 3 12~14
    24 A2098000052 CARRIER for eONE-FORTY LITE only w/o fender 1

    To reduce production and delivery times, we are sometimes forced to make last-minute specification changes. Please be aware that those changes might not be reflected on these product pages and images.



    Technologies

    Back to overview

    HFS - HYDRO FORMING SYSTEM

    ‘C-Mount’ equipped bikes have the fixing points for a rear rack already integrated (some bikes require model specific rear rack), making fitting fast, simple and reliable.

    Watch Video
    Back to overview

    X-TAPER HEADTUBE

    Steering precision is vital to safe and confident handling, and the X-TAPER HEADTUBE allows us to significantly boost this precision. A larger headset diameter at the bottom paired with a smaller one at the top helps to deal with the strains modern riding and equipment can put on the headtube, all without adding unnecessary weight. It allows tapered forks to be fitted with ease and delivers precise and confidence-inspiring steering.

    Watch Video
    Back to overview

    SMOOTH WELDING

    This is a process we use to give a nice flat finish to our welds instead of the scaled, 'stack of coins' effect TIG welded joints often have. The welder uses the welding torch to go over the joint twice, helping to smooth out the filler material. It takes a lot of skill to do this, but it delivers strong and smart-looking frames that have the appearance of a carbon fibre frame at first look.

    Watch Video
    Back to overview

    INTERNAL CABLE ROUTING

    On the majority of our frames, we run the gear and brake cables and hoses through the frame. The cables enter and exit the frame through smooth sockets, or we use one of our other systems like SMART ENTRY or WIRE PORT to be routed through. Running the cables inside the frame protects them from the elements, gives a clean and neat look and can offer aerodynamic advantages.

    Watch Video
    Back to overview

    DI2 READY

    Shimano's Di2 electronic shifting system offers fast, smooth and reliable shifting. In particular, in the road world, it has proven itself as the primary choice when top performance is at the top of the agenda. With that in mind, we have a broad selection of performance road frames that are Di2 READY and can accommodate the electrical cable, battery and other little tweaks that the system requires.

    Watch Video
    Back to overview

    RACELITE 61 ALUMINIUM

    We use a minimum of 6061 grade aluminium on all our bikes. It’s particularly well suited to being shaped with our hydroforming and technoforming processes, which allow us to vary the wall thickness to create double-butted tubing and complex frame shapes. It’s also an alloy that welds easily, and once it has been carefully heat treated to maximise strength, it means we can create strong and lightweight bicycle frames for you to enjoy.

    Watch Video
    Back to overview

    F-MOUNT

    Being able to turn your bike into an all-weather commuter that has mudguards and other fittings can be a real plus, in particular when riding on wet and perhaps muddy roads and tracks on a regular basis. To make fitting easy, some of our bikes are F-MOUNT equipped. These integrated fittings mounts make adding mudguards fast and simple. Please note that some bikes require model-specific mudguards.

    Watch Video
    Back to overview

    K-MOUNT

    When using your bike in an urban environment, where you might not always have the option to use a specific bike stand, a kickstand is an ideal solution to park your bike safely. Some of our bikes come with a neatly integrated K-MOUNT, which makes fitting a MERIDA kickstand (or any commercial kickstand) easy. And if you don’t want to have a kickstand and prefer the clean appearance of your frame, the K-MOUNT is neatly tucked away underneath your chainstay, difficult to spot if you don’t know it is there.

    Watch Video
    Back to overview

    CASTED MOTOR BRACKET

    The e-bike motor mount has a sophisticated shape that is only possible to create with casting technology. Casting this piece allows us to create a complex yet lightweight shape that gives an extremely strong connection between the motor and the frame for improved performance and reliability. It also gives the bike and motor a smooth and cleanly integrated appearance.

    Watch Video
    Back to overview

    NON-SLIP TIGHTENING

    This system means you only need a single tool to tighten important bolts, making it easy to secure them while out on the trail and also making routine maintenance faster and simpler. The bolts have a specially shaped head on one end that fits into a matching recess in the frame, preventing rotation. That means there is no hardware bonded into the frame itself, so damaged threads or bolts can be easily replaced.

    Watch Video
    Back to overview

    INTERNAL BLOCK

    The INTERNAL BLOCK SYSTEM restricts the amount of steering lock that can be applied in either direction, limiting the likelihood of the fork crown hitting the frame downtube and causing damage in a crash. It does this by having a tab mounted in the frame that, along with a special adaptor on the fork, restricts the steering lock in either direction. This is backed up by rubber bumpers on the frame itself, further reducing the chances of the fork and frame being damaged in a crash.

    Back to overview

    ENERGY GUARD TWIST

    A two-component battery cover fitted to bikes with an internally mounted battery. It protects the battery from dirt and moisture, with a softer outer layer that absorbs impacts. An easy-to-use twist lock mechanism secures the cover in place without the need for tools with a simple and light action that makes it easy to access the battery for off-bike charging, but prevents the cover from falling off, even when riding on the roughest terrain.

    Watch Video
    Back to overview

    WIRE PORT

    MERIDA designed headsets that enable all control cables from the handlebar to enter the frame through the headset cover, creating a clean and uncluttered look, allowing for a lighter, stronger and more aerodynamic frame structure than with conventional cable ports. Depending on the model, the cables are run completely internally (including the bar and stem) or semi-integrated, where the cables enter the frame underneath the stem.

    Watch Video
    Back to overview

    FAST KINEMATIC

    Suspension system that uses a Flexstay design to reduce weight and maintenance, is Adjustable to run 29” or 27.5” wheels without altering the geometry and has Size Tuned shock progression that increases with frame size, so lighter and smaller riders can access all of the travel and heavier riders get the support they need on big hits.

    Watch Video
    Back to overview

    LONG FENDER

    An optional extra coverage mudguard that bolts rigidly to the back end of our bikes, protecting the rider from dirt and water spray while reducing noise, movement and prevent damage to the paintwork.

    Watch Video
