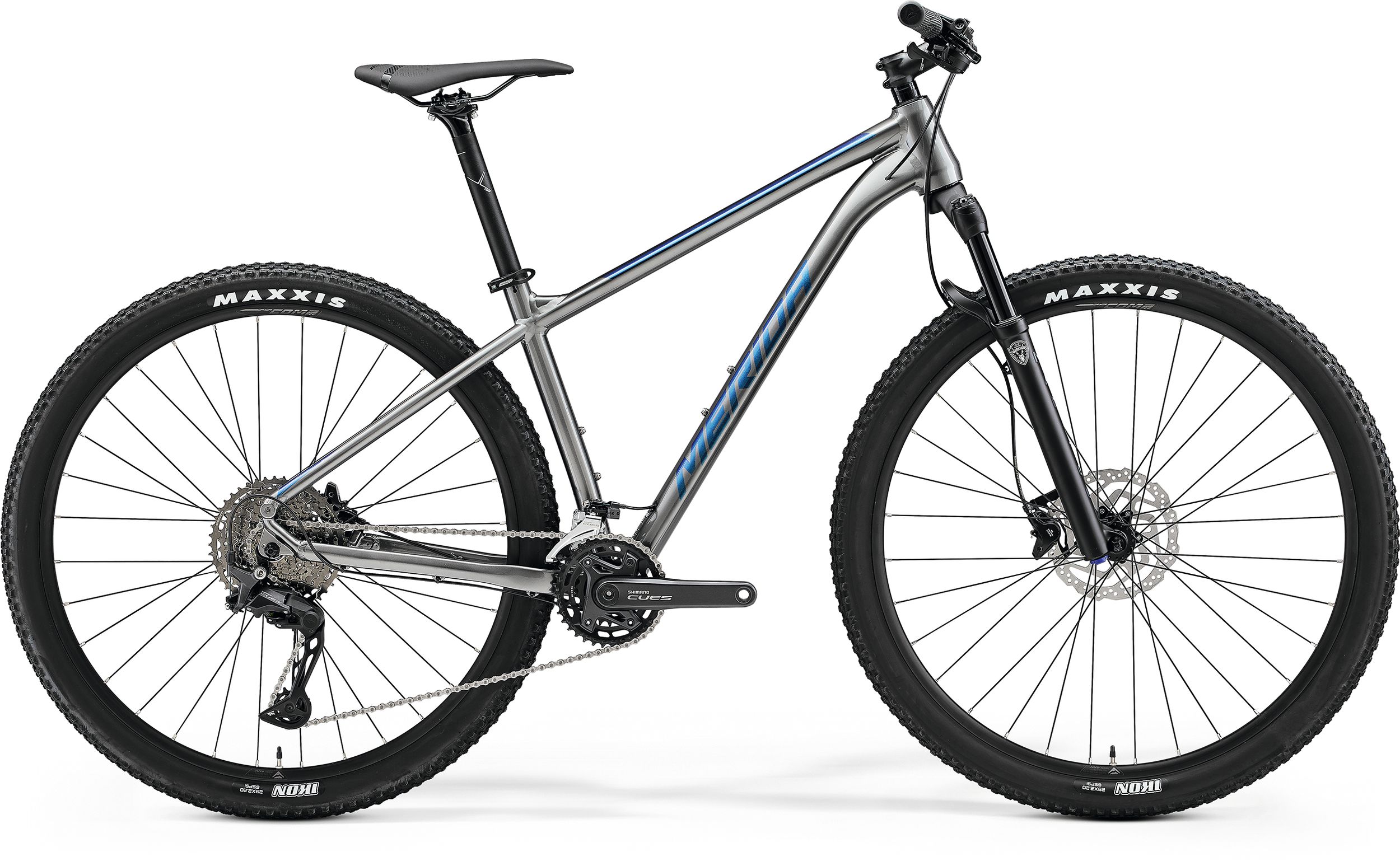

BIG.NINE 500

BIG.NINE 500



With more than 50 years of design and manufacturing experience behind it, bikes like the BIG.NINE 500 create the backbone of our range. This 29er aluminium hardtail combines quality, know-how and riding fun, all in one!
Find Dealer
  • THIS IS AN ARCHIVED MODEL

  • VIEW ALL CURRENT MODELS
  • 29er wheels offer fantastic 'roll over' ability and keep their speed well, so they are perfect for your next mountain bike outing. We pair our double butted aluminium frame with Manitou's Markhor air suspension fork and a twin chainring 11-speed Shimano drivetrain for the perfect combination of comfort, control and simplicity. The slightly more upright riding position in comparison to our more racy models puts less strain on the lower back and also improves the visibility of what lies ahead.

    Mountain biking is one of the most varied cycling disciplines and probably the most demanding when it comes to equipment. While full suspension bikes offer amazing riding characteristics, the classic hardtail remains one of the purest tools for the job. Our 29er wheel equipped BIG.NINE range comes in carbon and aluminium and features multiple geometry options. The updated CF carbon and LITE aluminium framed BIG.NINE offer truly modern geometry with increased standover clearance and handling stability to better deal with the tough race tracks of today, with downcountry ready TR options that boost fork travel and add in aggressive tyres and dropper posts. The more relaxed geometry of the BIG.NINE TFS and SPEED offers a more comfortable, upright riding position. Our classic hardtails are the backbone of our range and showcase the enormous wealth of experience and knowledge we could gain in over half a century of bike production and manufacturing. The BIG.NINE range represents the symbiosis between modern frame technology, attention to detail and craftsmanship 'Made in Taiwan' symbolises.

    • Double butted, smooth welded aluminium frame with 29er wheels
    • Less aggressive and more upright geometry for maximum control and comfort
    • Manitou Markhor 100 mm travel suspension fork with remote lockout
    • Shimano CUES 2x11-speed drivetrain
    • Shimano hydraulic disc brakes
    • Internal cable routing
    • material: aluminum
    • 29" wheelsize
    • 135x9 mm axle standard
    • BSA bottom bracket standard
    • Smooth welding
    frame size S, M, L, XL, XXL
    color GUNMETAL GREY (BLUE)
    • Air
    • 100 mm suspension travel
    • Tapered
    • Lockout
    • 51 mm fork offset
    • 180 mm
    • 160 mm
    headset MERIDA M4455
    • material: aluminium
    • 720 mm width
    • 10 mm rise
    • material: aluminium
    • 31.8 mm diameter
    • 7° stem angle
    • S:70 mm, M:80 mm, L:90 mm, XL:100 mm, XXL:110 mm
    grip MERIDA COMP EC
    derailleur (f) Shimano CUES U6000
    shifters Shimano CUES U6000
    • material: aluminium
    • 30.9 mm diameter
    • 0 mm setback
    seat clamp MERIDA COMP QR
    pedal VP VPE-891
    chain Shimano LG500
    • 36-22 teeth
    • 170 mm-S, 175 mm-M up
    • 11-45 teeth, 11 speed
    • 100x9 mm width front hub
    • 32 spoke holes
    • Centerlock
    • 135x9 mm width rear hub
    • 32 spoke holes
    • Centerlock
    • 20 mm inner width
    • material: aluminium
    spokes Black stainless
    • weighed at frame size M
    • Weight may vary depending on bike size, finish or possible specification changes due to supply chain issues.
    • Total weight of bike, rider and luggage
    Bike Frame Geometry Image
    Frame Size S M L XL XXL
    Tyre Sizes 29" 29" 29" 29" 29"
    ST seat tube [mm] 370 430 470 510 560
    TT top tube [mm] 570 590 610 630 650
    CS chain stay length [mm] 440 440 440 440 440
    HTA head tube angle [°] 70 70 70 70 70
    STA seat tube angle [°] 73 73 73 73 73
    BD bottom bracket drop [mm] 60 60 60 60 60
    HT head tube [mm] 100 115 130 145 160
    FL fork length [mm] 506 506 506 506 506
    R reach [mm] 382 398 414 429 445
    S stack [mm] 614 628 642 656 670
    WB wheel base [mm] 1069 1090 1110 1131 1152
    SH stand over height [mm] 679 727 763 800 843

    To reduce production and delivery times, we are sometimes forced to make last-minute specification changes. Please be aware that those changes might not be reflected on these product pages and images.



    Technologies

    Back to overview

    X-TAPER HEADTUBE

    Steering precision is vital to safe and confident handling, and the X-TAPER HEADTUBE allows us to significantly boost this precision. A larger headset diameter at the bottom paired with a smaller one at the top helps to deal with the strains modern riding and equipment can put on the headtube, all without adding unnecessary weight. It allows tapered forks to be fitted with ease and delivers precise and confidence-inspiring steering.

    Watch Video
    Back to overview

    SMOOTH WELDING

    This is a process we use to give a nice flat finish to our welds instead of the scaled, 'stack of coins' effect TIG welded joints often have. The welder uses the welding torch to go over the joint twice, helping to smooth out the filler material. It takes a lot of skill to do this, but it delivers strong and smart-looking frames that have the appearance of a carbon fibre frame at first look.

    Watch Video
    Back to overview

    INTERNAL CABLE ROUTING

    On the majority of our frames, we run the gear and brake cables and hoses through the frame. The cables enter and exit the frame through smooth sockets, or we use one of our other systems like SMART ENTRY or WIRE PORT to be routed through. Running the cables inside the frame protects them from the elements, gives a clean and neat look and can offer aerodynamic advantages.

    Watch Video
    Back to overview

    DOWN TUBE EXIT

    DOWN TUBE EXIT is a feature seen on some of our frames with internally routed cables. By slightly overlapping the downtube where it connects to the bottom bracket, it leaves a small space that allows cables to exit easily. This means they are easily accessible for routine maintenance or replacement, but it prevents excessive movement and noise that can cause wear and distraction.

    Watch Video
    Back to overview

    RACELITE 61 ALUMINIUM

    We use a minimum of 6061 grade aluminium on all our bikes. It’s particularly well suited to being shaped with our hydroforming and technoforming processes, which allow us to vary the wall thickness to create double-butted tubing and complex frame shapes. It’s also an alloy that welds easily, and once it has been carefully heat treated to maximise strength, it means we can create strong and lightweight bicycle frames for you to enjoy.

    Watch Video
    Back to overview

    TFS - TECHNO FORMING SYSTEM

    Manipulating the tube shape and thickness greatly impacts the appearance, weight and functionality of our aluminium frames. One technology that allows us to do that is TECHNO FORMING, where plain aluminium tubes get mechanically formed by using an external form and an internal metal core. The result, beautifully shaped tubes with varying wall thickness, ready to be used to create our technoformed aluminium frames.

    Watch Video
    Back to overview

    F-MOUNT

    Being able to turn your bike into an all-weather commuter that has mudguards and other fittings can be a real plus, in particular when riding on wet and perhaps muddy roads and tracks on a regular basis. To make fitting easy, some of our bikes are F-MOUNT equipped. These integrated fittings mounts make adding mudguards fast and simple. Please note that some bikes require model-specific mudguards.

    Watch Video
    Back to overview

    K-MOUNT

    When using your bike in an urban environment, where you might not always have the option to use a specific bike stand, a kickstand is an ideal solution to park your bike safely. Some of our bikes come with a neatly integrated K-MOUNT, which makes fitting a MERIDA kickstand (or any commercial kickstand) easy. And if you don’t want to have a kickstand and prefer the clean appearance of your frame, the K-MOUNT is neatly tucked away underneath your chainstay, difficult to spot if you don’t know it is there.

    Watch Video
    Back to overview

    C-MOUNT

    Similar to our F-MOUNT, where various fixing points for mudguards are part of the frame offering, the C-MOUNT equipped bikes have the fixing points for a rear rack already integrated, making fitting fast, simple and reliable. The C-MOUNTS are an additional feature that improves the day-to-day versatility by adding loading capacity to your bike, ideal for commuting and shopping trips. Please note that some bikes require model-specific rear racks.
