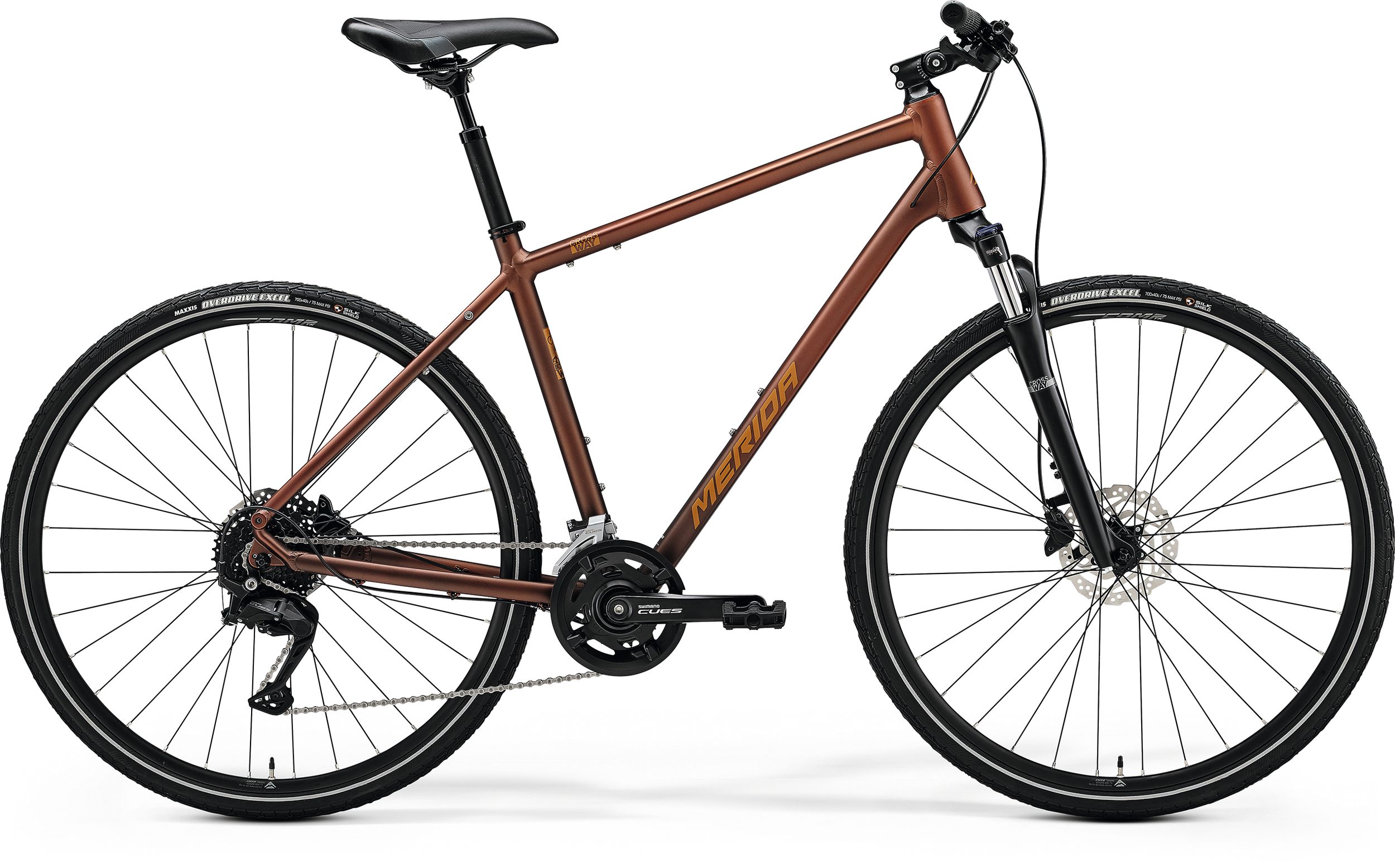

A modern trekking/hybrid bike that features a long list of quality components, including powerful and easy to control hydraulic disc brakes, a broad 27-speed gear range plus a comfort and safety enhancing suspension fork. All of this is fitted to a lightweight aluminium frame with a comfort-orientated geometry, giving the CROSSWAY 100 actual day-to-day usability with leisure and touring versatility.
The CROSSWAY family has been the MERIDA range's backbone since its introduction. They are used worldwide and are proven as a reliable, versatile and fun-packed way of getting around. Designed to provide a comfortable place to take in the surroundings thanks to an upright riding position and comfort focused equipment such as suspension fork, suspension seat posts and adjustable stems, they offer the perfect blend of comfort, enjoyment and all-round functionality. They are suitable for fitness training, commuting and leisurely rides through forests and on trails. Made from high-quality, lightweight aluminium with the ability to mount mudguards, racks and kickstands, the CROSSWAY range is the perfect choice for everyday riding. The fitted 700c wheels cover ground quickly, while the extra volume of the 40 mm wide tyres offers puncture protection, grip and comfort. All CROSSWAY models are available as a low step-through frame, making mounting and dismounting straightforward.
- Lightweight aluminium frame with comfort geometry
- Lockable suspension fork
- Hydraulic disc brakes
- Shimano CUES drivetrain
- Multiple fixing points for rear rack and fenders
- Suspension seat post and adjustable stem
- material: aluminium
- 700x50C max. wheelsize
- 135x9 mm axle standard
- BSA bottom bracket standard
- Coil
- 63 mm suspension travel
- Lockout
- 700x48C max. wheelsize
- 2 piston
- 160 mm
- 30.9 mm diameter
- 10 mm setback
- 45 mm seatpost suspension travel
- 40-26 teeth
- 170 mm-XXS/XS/S, 175 mm-M/XL
- 11-36 teeth
- 9 speed
- 100x9 mm width front hub
- 32 spoke holes
- Centerlock
- 135x9 mm width rear hub
- 32 spoke holes
- Centerlock
- 20 mm inner width
- 17 mm height
- material: aluminium
- 700x40C
- wire
- reflective stripe, Silkshild
- 700x40C
- wire
- reflective stripe, Silkshild
- weighed at frame size M
- Weight may vary depending on bike size, finish or possible specification changes due to supply chain issues.
- Total weight of bike, rider and luggage
Frame Size | XXS | XS | S | M | L | XL |
Tyre Sizes | 28" | 28" | 28" | 28" | 28" | 28" |
ST seat tube [mm] | 390 | 430 | 470 | 510 | 550 | 590 |
TT top tube [mm] | 560 | 565 | 580 | 590 | 610 | 630 |
CS chain stay length [mm] | 460 | 460 | 460 | 460 | 460 | 460 |
HTA head tube angle [°] | 70.5 | 70.5 | 71 | 71 | 71.5 | 71.5 |
STA seat tube angle [°] | 74 | 74 | 73.5 | 73.5 | 73 | 73 |
BD bottom bracket drop [mm] | 70 | 70 | 70 | 70 | 70 | 70 |
HT head tube [mm] | 130 | 130 | 140 | 155 | 175 | 205 |
FL fork length [mm] | 468 | 468 | 468 | 468 | 468 | 468 |
R reach [mm] | 382 | 387 | 393 | 399 | 406 | 418 |
S stack [mm] | 620 | 620 | 631 | 645 | 667 | 695 |
WB wheel base [mm] | 1076 | 1081 | 1085 | 1096 | 1104 | 1125 |
SH stand over height [mm] | 678 | 713 | 748 | 782 | 817 | 854 |
