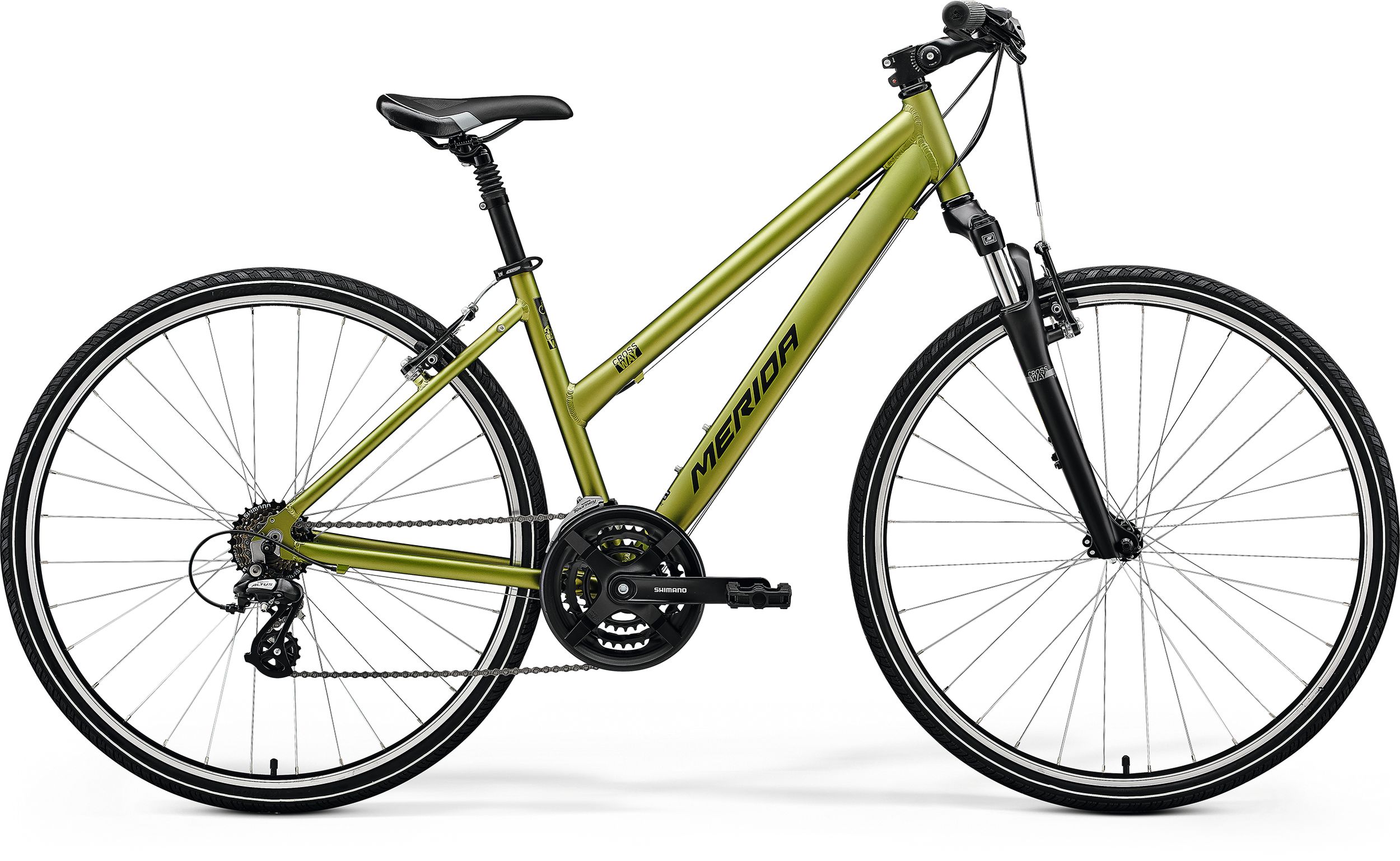

CROSSWAY L 10-V

CROSSWAY L 10-V



Entry level trekking/hybrid bike equipped with reliable V-brakes and suspension forks at an attractive price point. Your reliable companion around town and cross country.
Find Dealer
  • THIS IS AN ARCHIVED MODEL

  • VIEW ALL CURRENT MODELS
  • You don't always have to spend big-ticket money to get a reliable lightweight aluminium hybrid that delivers when it comes to day-to-day usability, built-in weekend fun and all-round riding comfort. Our CROSSWAY 10-V comes with powerful and easy to service V-brakes, a broad gear range that gets you to your destination quickly as well as climbs steeper slopes with ease. A suspension fork and seat post provide extra comfort and riding safety.

    The CROSSWAY family has been the MERIDA range's backbone since its introduction. They are used worldwide and are proven as a reliable, versatile and fun-packed way of getting around. Designed to provide a comfortable place to take in the surroundings thanks to an upright riding position and comfort focused equipment such as suspension fork, suspension seat posts and adjustable stems, they offer the perfect blend of comfort, enjoyment and all-round functionality. They are suitable for fitness training, commuting and leisurely rides through forests and on trails. Made from high-quality, lightweight aluminium with the ability to mount mudguards, racks and kickstands, the CROSSWAY range is the perfect choice for everyday riding. The fitted 700c wheels cover ground quickly, while the extra volume of the 40 mm wide tyres offers puncture protection, grip and comfort. All CROSSWAY models are available as a low step-through frame, making mounting and dismounting straightforward.

    • Lightweight aluminium frame with comfort geometry
    • Suspension fork
    • Shimano drivetrain
    • Multiple fixing points for rear rack and fenders
    • Suspension seat post
    • Adjustable stem
    • 63 mm suspension travel
    • material: aluminium
    • 700x42C max. wheelsize
    • 135x9 mm axle standard
    • BSA bottom bracket standard
    frame size XS, S, S/M, M/L, L, XL, XXL
    color SILK FALL GREEN (BLACK)
    • Coil
    • 63 mm suspension travel
    • 700x50C max. wheelsize
    headset FSA TH888
    • material: steel
    • 620 mm width
    • 30 mm rise
    • material: aluminium
    • 25.4 mm diameter
    • adjustable
    • 100 mm all sizes
    grip MERIDA EC
    derailleur (f) Shimano FD-TY510
    derailleur (r) Shimano RD-M310
    shifters Shimano ST-EF500
    • 27.2 mm diameter
    • 13 mm setback
    • 40 mm seatpost suspension travel
    seat clamp MERIDA COMP QR
    saddle MERIDA Cross Sport
    pedal VP VPE-891
    chain KMC NS8
    • 48-38-28 teeth
    • MAT Aluminium
    • 170 mm-XXS/XS/S, 175 mm-M up
    • 14-28 teeth
    • 7 speed
    bottom bracket FSA TH-7420ST, 68-124
    • 100x9 mm width front hub
    • 32 spoke holes
    • 135x9 mm width rear hub
    • 32 spoke holes
    • 17 mm inner width
    • material: aluminium
    spokes Steel UCP
    • weighed at frame size M
    • Weight may vary depending on bike size, finish or possible specification changes due to supply chain issues.
    • Total weight of bike, rider and luggage
    Bike Frame Geometry Image
    Frame Size XS S S/M M/L L XL XXL
    Tyre Sizes 28" 28" 28" 28" 28" 28" 28"
    ST seat tube [mm] 440 460 480 520 550 580 610
    TT top tube [mm] 565 575 585 595 605 620 635
    CS chain stay length [mm] 450 450 450 450 450 450 450
    HTA head tube angle [°] 71 71.5 71.5 72 72 72 72.5
    STA seat tube angle [°] 74 73.5 73.5 73.5 73 73 72.5
    BD bottom bracket drop [mm] 70 70 70 70 70 70 70
    HT head tube [mm] 125 125 135 135 145 170 200
    FL fork length [mm] 450 450 450 450 450 450 450
    R reach [mm] 394 397 405 414 415 423 422
    S stack [mm] 597 599 609 611 620 644 675
    WB wheel base [mm] 1073 1072 1082 1087 1091 1107 1110
    SH stand over height [mm] 711 727 743 774 798 825 852

    To reduce production and delivery times, we are sometimes forced to make last-minute specification changes. Please be aware that those changes might not be reflected on these product pages and images.



    Technologies

    Back to overview

    RACELITE 61 ALUMINIUM

    We use a minimum of 6061 grade aluminium on all our bikes. It’s particularly well suited to being shaped with our hydroforming and technoforming processes, which allow us to vary the wall thickness to create double-butted tubing and complex frame shapes. It’s also an alloy that welds easily, and once it has been carefully heat treated to maximise strength, it means we can create strong and lightweight bicycle frames for you to enjoy.

    Watch Video
    Back to overview

    TFS - TECHNO FORMING SYSTEM

    Manipulating the tube shape and thickness greatly impacts the appearance, weight and functionality of our aluminium frames. One technology that allows us to do that is TECHNO FORMING, where plain aluminium tubes get mechanically formed by using an external form and an internal metal core. The result, beautifully shaped tubes with varying wall thickness, ready to be used to create our technoformed aluminium frames.

    Watch Video
    Back to overview

    F-MOUNT

    Being able to turn your bike into an all-weather commuter that has mudguards and other fittings can be a real plus, in particular when riding on wet and perhaps muddy roads and tracks on a regular basis. To make fitting easy, some of our bikes are F-MOUNT equipped. These integrated fittings mounts make adding mudguards fast and simple. Please note that some bikes require model-specific mudguards.

    Watch Video
    Back to overview

    K-MOUNT

    When using your bike in an urban environment, where you might not always have the option to use a specific bike stand, a kickstand is an ideal solution to park your bike safely. Some of our bikes come with a neatly integrated K-MOUNT, which makes fitting a MERIDA kickstand (or any commercial kickstand) easy. And if you don’t want to have a kickstand and prefer the clean appearance of your frame, the K-MOUNT is neatly tucked away underneath your chainstay, difficult to spot if you don’t know it is there.

    Watch Video
    Back to overview

    C-MOUNT

    Similar to our F-MOUNT, where various fixing points for mudguards are part of the frame offering, the C-MOUNT equipped bikes have the fixing points for a rear rack already integrated, making fitting fast, simple and reliable. The C-MOUNTS are an additional feature that improves the day-to-day versatility by adding loading capacity to your bike, ideal for commuting and shopping trips. Please note that some bikes require model-specific rear racks.

    Watch Video
