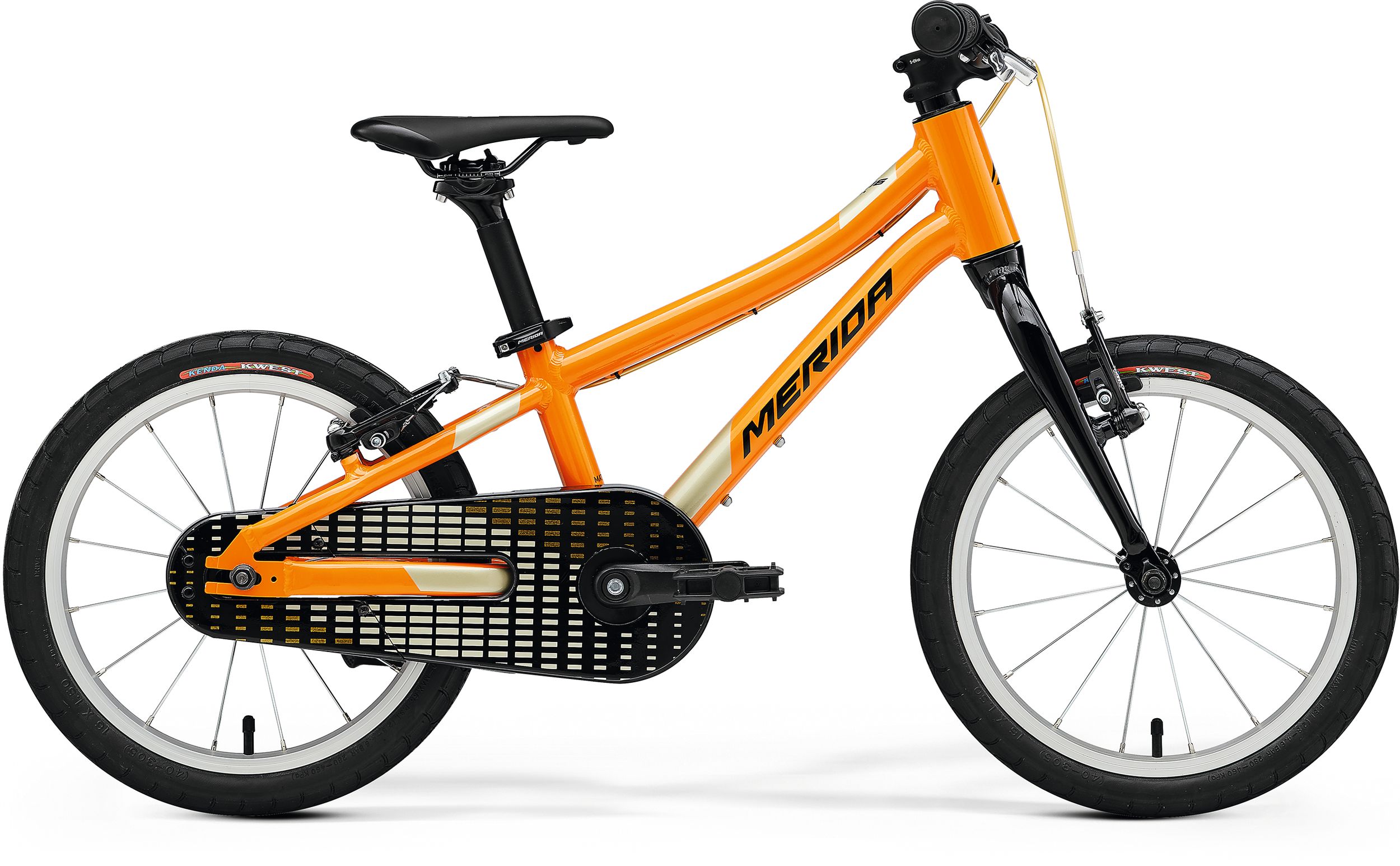

MATTS J. 16



Even the newest cyclists deserve a quality riding experience, with a bike that’s built from high-quality parts and based entirely around their needs.
Find Dealer

With an all-new frame that’s lighter than before, the MATTS J16 offers even the youngest riders seriously sorted handling and equipment designed around their needs. That means brakes with special levers designed for little hands to effectively control, plus easy to pedal gearing contained in a closed chain guard that keep hands safe and clothes clean. Lightweight wheels with fast rolling but grippy tyres ensure that that youth is no barrier to shredding. Suits heights from approx. 92-109 cm tall.

Our MATTS J range is designed for the heroes of tomorrow, which is why we put all the know-how gained from years of making adult bikes into lightweight, high-quality machines for kids to enjoy. High-quality components chosen specifically for the needs of children are married to our aluminium frames that are created with the same painstaking attention to detail and quality of finish as the rest of our bikes. That’s the only way to guarantee that young riders get the same enjoyment of cycling, safe in the knowledge that their bike will never let them down. Whatever your age, your level of ability or your size, we have the perfect first MERIDA ready for you. See you on the start line!

  • Lightweight aluminium frame
  • Closed chain guard keeps fingers safe and clothes clean
  • Easy to pedal gearing
  • Specially designed V-brake levers for small hands
  • Fast rolling but grippy tyres on 16” wheels
  • Kid specific finishing kit
  • material: aluminium
  • 16" wheelsize
  • 112x9/100x9 wheelsize
  • BMX bottom bracket standard
frame size 8.5"
color ORANGE (CHAMPANGE/BLACK)
brake front V-brake alloy short
brake rear V-brake alloy middle
brake lever JL350-RS alloy
headset FSA NO.10
  • material: aluminium
  • 500mm width
  • 120mm rise
  • material: aluminium
  • 31.8mm diameter
  • 7° stem angle
  • 50 mm
stem size 50 mm
grip Kraton short, 102mm, w/plug.
  • material: steel
  • 27.2mm diameter
  • 0mm setback
seat clamp MERIDA COMP QR
saddle MERIDA COMP JR
pedal VP-225
chain KMC S1 single
  • 28 teeth
  • 90 mm
freewheel 16T, single.
  • material: aluminium
hub front Kid steel-Flange Nut
hub rear Kid steel-Flange Nut-single
spokes Steel UCP
kickstand kickstand adjustable alloy
Bike Frame Geometry Image
Frame Size 8.5"
Tire Sizes 16"
St Seat Tubes Mm 210
Tt Top Tubes Mm 390
Cs Chain Stays Mm 293
Hta Head Tube Angles Deg 70
Sta Seat Tube Angle Deg 71
Bd Bottom Bracket Drops Mm 12
Ht Head Tube Lengths Mm 115
Fl Fork Lengths Mm 280
R Reachs Mm 262
S Stacks Mm 371
Wb Wheel Base Mm 723
Sh Stand Over Height Mm 388

Technologies

Back to overview

RACELITE 61 ALUMINIUM

We use a minimum of 6061 grade aluminium on all our bikes. It’s particularly well suited to being shaped with our hydroforming and technoforming processes, which allow us to vary the wall thickness to create double-butted tubing and complex frame shapes. It’s also an alloy that welds easily, and once it has been carefully heat treated to maximise strength, it means we can create strong and lightweight bicycle frames for you to enjoy.

Watch Video
Back to overview

F-MOUNT

Being able to turn your bike into an all-weather commuter that has mudguards and other fittings can be a real plus, in particular when riding on wet and perhaps muddy roads and tracks on a regular basis. To make fitting easy, some of our bikes are F-MOUNT equipped. These integrated fittings mounts make adding mudguards fast and simple. Please note that some bikes require model-specific mudguards.

Watch Video
Back to overview

K-MOUNT DROP-OUT

เฟรมด้านท้ายออกแบบสำหรับติดตั้งขาตั้งของ Merida หรือแบรนด์อื่นๆที่เป็นลักษณะการจับยึดเดียวกัน
Integrated mount on the chainstay to fit a MERIDA kickstand (or any commercial kickstand).

Watch Video
Back to overview

SLIDER DROPOUT

Our SLIDER DROPOUT allows the user to easily tension the drive of a hub gear-equipped bike without the need for a fiddly conventional chain or belt tensioner. Instead, the tensioning mechanism is built into the frame, giving plenty of precise horizontal adjustment plus a very strong and secure interface that helps keep the wheel held in place for improved handling and also makes routine maintenance faster and easier.

Watch Video
