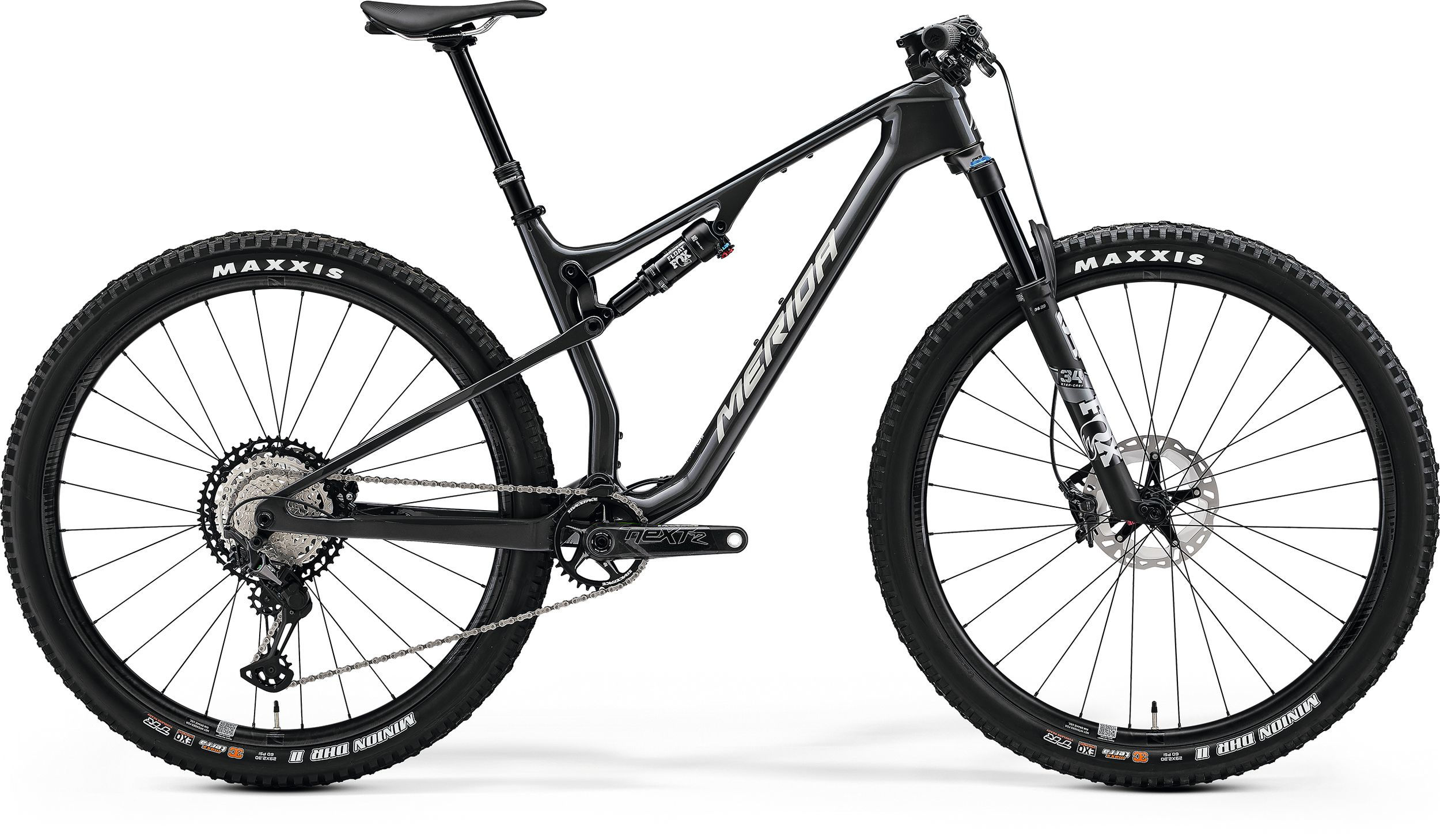

100 mm suspension travel material: carbon 29x2.35" max. wheelsize 148x12 mm axle standard BSA bottom bracket standard
Air 120 mm suspension travel Tapered 3 Pos lockout 44 mm fork offset 29x2.4" max. wheelsize
remote lockout
4 piston
2 piston flat mount
Multi Release
30.9mm diameter 0mm setback S: 125mm travel seatpost - M 150mm travel seatpost - L/XL 170mm travel seatpost
V-mount incl. MERIDA minitool
32 teeth
170 mm-S, 175 mm-M up
10-51 teeth 12 speed
110x15mm width front hub 148x12mm width rear hub 30/28mm inner width Centerlock Shimano 12 Speed material: carbon Tubeless ready (tubeless tape and valves included) Lifetime warranty
29x2.3" fold TR EXO 3C MaxxTerra
29x2.3" fold TR EXO 3C MaxxTerra
180 mm
160 mm
![Bike Frame Geometry Image](https://d2lljesbicak00.cloudfront.net/merida-v2/crud-card//db-global/2019/frame-geometry/merida-drawing-geometries-2018.png?p3)
Frame Size | S | M |
Tire Sizes | 29" | 29" |
St Seat Tubes Mm | 400 | 440 |
Tt Top Tubes Mm | 581 | 601 |
Cs Chain Stays Mm | 435 | 435 |
Hta Head Tube Angles Deg | 67 | 67 |
Sta Seat Tube Angle Deg | 75 | 75 |
Bd Bottom Bracket Drops Mm | 36 | 36 |
Ht Head Tube Lengths Mm | 95 | 95 |
Fl Fork Lengths Mm | 530 | 530 |
R Reachs Mm | 420 | 440 |
S Stacks Mm | 595 | 595 |
Wb Wheel Base Mm | 1136 | 1156 |
Sh Stand Over Height Mm | 740 | 741 |
Number | Item Number | Name | Info | Pieces | Torque NM |
1 | A2191000227 | HEAD SET | Acros AIX-585 | 1 | |
2 | A2136000017 | MOUNT | for bottle cage | 1 | |
3 | A2298000185 | SCREW | M5x0.8 L10mm | 4 | 3~5 |
4 | A2298000145 | SCREW | M5x0.8 L25mm | 1 | 3~5 |
5 | A2300000477 | BOLT | M10x1 OD15/17mm L65mm | 1 | |
6 | A2300000476 | SCREW | M10x1 L15mm | 1 | 14~16 |
7 | A2221000040 | BEARING | 172607V-2RS OD26mm ID17mm W7mm | 1 | |
8 | A2221000043 | BEARING | 3802V-2RS OD24mm ID15mm W7mm | 1 | |
9 | A2294000102 | WASHER | OD21mm ID17.1mm H3mm | 1 | |
10 | A2294000016 | WASHER | OD19mm ID15.1mm H3mm | 1 | |
11 | A2300000577 | SCREW | M6x1 L13,5mm | 3 | 6~8 |
12 | A2300000471 | BOLT | M6x1 OD10mm L39mm | 1 | |
13 | A2300000472 | BOLT | M6x1 OD10mm L34mm | 1 | |
14 | A2300000473 | BOLT | M6x1 OD10mm L55mm | 1 | |
15 | A2181000005 | WASHER | OD15mm ID10.1mm H27mm | 1 | |
16 | A2221000034 | BEARING | 6800V-2RS OD19mm ID10mm W5mm | 3 | |
17 | A2294000085 | WASHER | OD15.5mm ID10.1mm H2mm | 3 | |
18 | A2300000578 | SCREW | M6x1 L13mm | 1 | 6~8 |
19 | A2300000475 | BOLT | M6x1 OD10/12mm L55mmM6x1 OD10/12mm L55mm | 1 | |
20 | A2221000035 | BEARING | 6801V-2RS OD21mm ID12mm W5mm | 1 | |
21 | A2294000105 | WASHER | OD17mm ID12.1mm H2mm | 1 | |
22 | A2258000225 | CABLE GUIDE | for RD and rear brake | 1 | |
23 | A2300000501 | SCREW | M4x0.7 L16mm | 1 | 1,5~2 |
24 | A2300000485 | SCREW | M4x0.7 L6mm | 1 | 1,5~2 |
25 | A2298000113 | SCREW | M6x1 L16mm | 1 | 6~8 |
26 | A2300000484 | SCREW | M4x0.7 L10mm | 1 | 1,5~2 |
27 | A2294000167 | WASHER | OD6.4mm ID12mm H0.5mm | 1 | |
28 | A2232000030 | MOUNT | Mount for chain guide | 1 | |
29 | A2232000028 | CHAIN GUIDE | for 30T-38T | 1 | |
30 | A2258000079 | CABLE PLUG | for mechanical | 1 | |
31 | A2258000052 | BLIND PLUG | for wireless RD | 1 | |
32 | A2311000102 | RD-HANGER | UDH | 1 | |
33 | A2298000059 | SCREW | M5x0.8 L15mm | 2 | 3~5 |
34 | A2002000135 | THRU AXLE | EXPERT TR; L=178.5mm M12x1 TL=13.5mm | 1 | |
35 | A2358000113 | PROTECTOR | for down tube | 1 | |
36 | A2352000066 | PROTECTOR | for chain stay | 1 | |
37 | A2352000037 | TUBE | foam; ID6mm L450mm | 1 | |
38 | A2352000037 | TUBE | foam; ID6mm L450mm | 1 |
