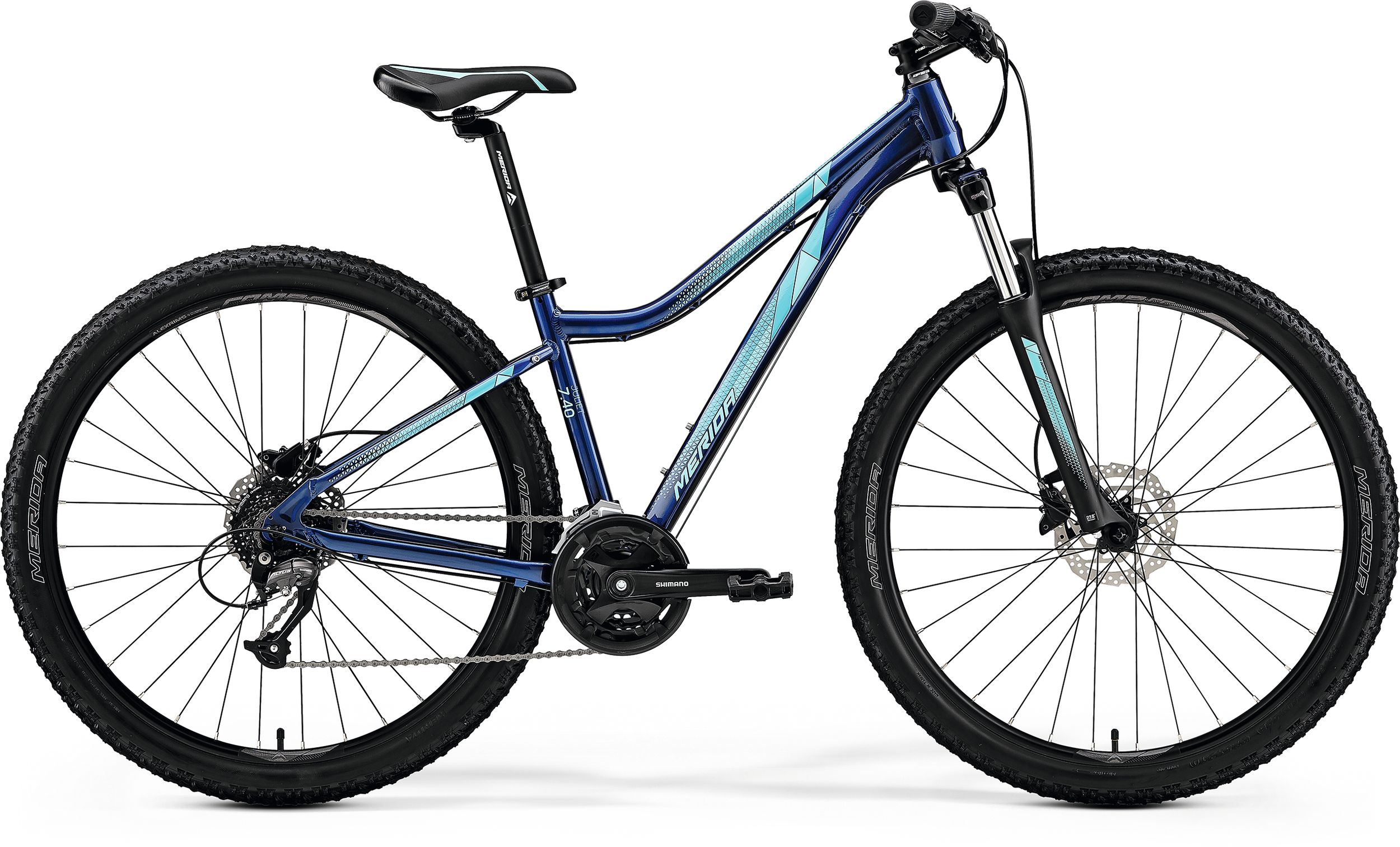

JULIET 7. 40-D

JULIET 7. 40-D



Find Dealer Buy now
  • *All specifications listed are subject to change without notice. *Recommended Retail Prices are subject to change without notice.

  • brakes Shimano ST-EF505
    frame JULIET SPEED
    frame size XS, S, M, L
    • Coil
    • 100mm suspension travel
    • Lockout
    color DARK BLUE (TEAL)
    derailleur (f) Shimano FD-M2000
    derailleur (r) Shimano RD-M370
    shifter front Shimano ST-EF505
    shifter rear Shimano ST-EF505
    brake lever Shimano ST-EF505
    brake front Shimano ST-EF505
    brake rear Shimano ST-EF505
    chain KMC M99
    • 100x9mm width front hub
    • 32 spoke holes
    • Centerlock
    • 135x9mm width rear hub
    • 32 spoke holes
    • Centerlock
    • 17mm inner width
    • 11-32 teeth
    • 9 speed
    • 27.5x2.1"
    • wire bead
    • 27.5x2.1"
    • wire bead
    spokes Black steel
    • 31.8mm diameter
    • 17° stem angle
    • 640mm width
    • 25mm rise
    headset FSA NO.10P Neck15
    • 27.2mm diameter
    • 15mm setback
    saddle MERIDA Juliet Sport

    weighed at frame size S (w/o pedals)

    Bike Frame Geometry Image
    Frame Size XS S M L
    Tyre Sizes 27.5" 27.5" 27.5" 27.5"
    ST seat tube [mm] 343 381 432 470
    TT top tube [mm] 536 546 561 571
    CS chain stay length [mm] 430 430 430 430
    HTA head tube angle [°] 69.5 69.5 70 70
    STA seat tube angle [°] 74.5 74.5 74.5 74.5
    BD bottom bracket drop [mm] 65 65 65 65
    HT head tube [mm] 95 100 110 120
    FL fork length [mm] 493 493 493 493
    R reach [mm] 372 380 392 399
    S stack [mm] 602 607 618 628
    WB wheel base [mm] 1039 1050 1060 1071
    SH stand over height [mm] 582 612 664 694
    Body Height Cm < 163 157 - 173 167 - 183 > 177

    To reduce production and delivery times, we are sometimes forced to make last-minute specification changes. Please be aware that those changes might not be reflected on these product pages and images.



    Technologies

    Back to overview

    RACELITE 61 ALUMINIUM

    We use a minimum of 6061 grade aluminium on all our bikes. It’s particularly well suited to being shaped with our hydroforming and technoforming processes, which allow us to vary the wall thickness to create double-butted tubing and complex frame shapes. It’s also an alloy that welds easily, and once it has been carefully heat treated to maximise strength, it means we can create strong and lightweight bicycle frames for you to enjoy.

    Watch Video
    Back to overview

    F-MOUNT

    Being able to turn your bike into an all-weather commuter that has mudguards and other fittings can be a real plus, in particular when riding on wet and perhaps muddy roads and tracks on a regular basis. To make fitting easy, some of our bikes are F-MOUNT equipped. These integrated fittings mounts make adding mudguards fast and simple. Please note that some bikes require model-specific mudguards.

    Watch Video
    Back to overview

    K-MOUNT

    When using your bike in an urban environment, where you might not always have the option to use a specific bike stand, a kickstand is an ideal solution to park your bike safely. Some of our bikes come with a neatly integrated K-MOUNT, which makes fitting a MERIDA kickstand (or any commercial kickstand) easy. And if you don’t want to have a kickstand and prefer the clean appearance of your frame, the K-MOUNT is neatly tucked away underneath your chainstay, difficult to spot if you don’t know it is there.

    Watch Video
    Back to overview

    C-MOUNT

    Similar to our F-MOUNT, where various fixing points for mudguards are part of the frame offering, the C-MOUNT equipped bikes have the fixing points for a rear rack already integrated, making fitting fast, simple and reliable. The C-MOUNTS are an additional feature that improves the day-to-day versatility by adding loading capacity to your bike, ideal for commuting and shopping trips. Please note that some bikes require model-specific rear racks.
