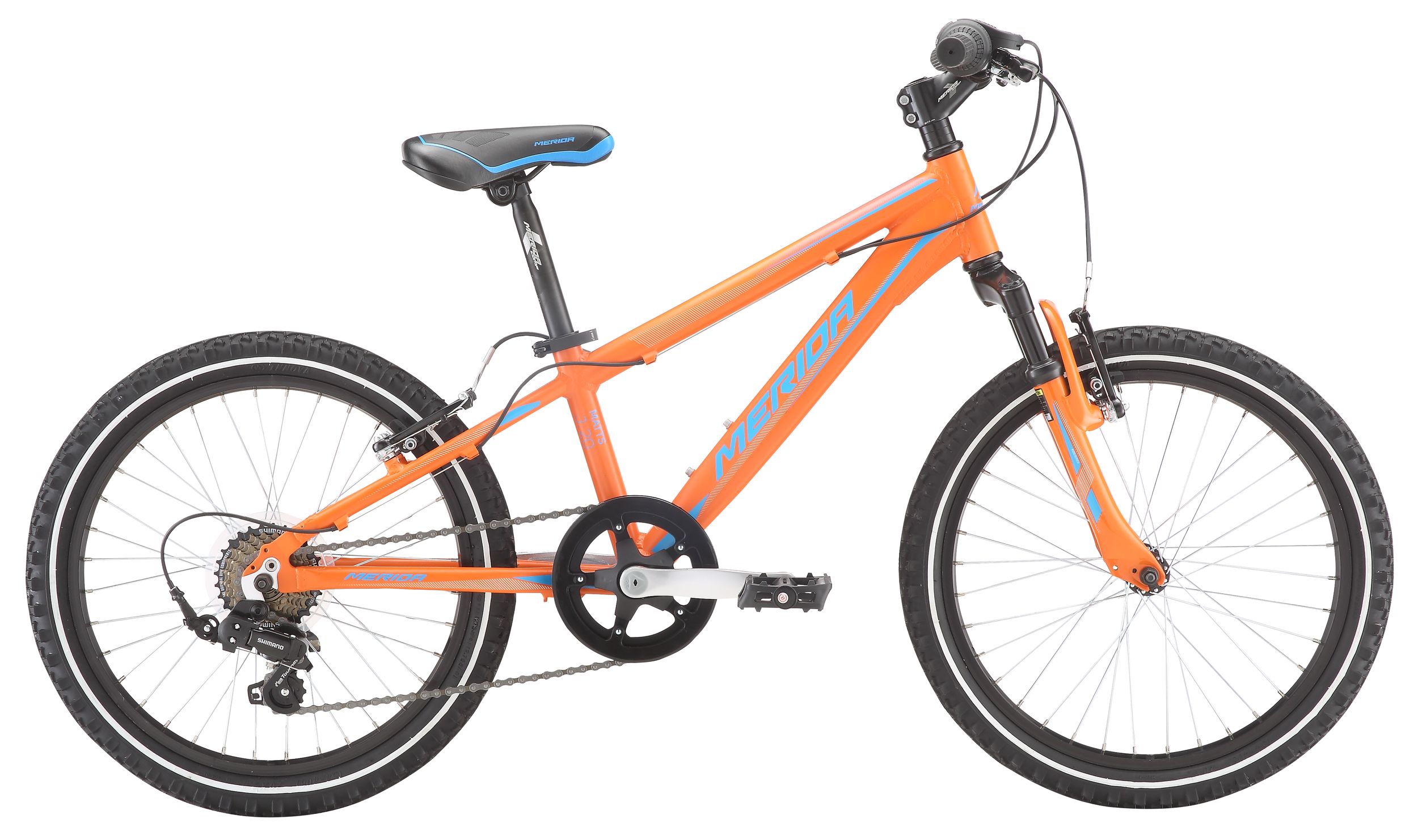

Matts J20 (Boy)

Matts J20 (Boy)



Find Dealer Buy now
  • *All specifications listed are subject to change without notice. *Recommended Retail Prices are subject to change without notice.

  • brakes V-Brake Linear A / Coaster in R.Hub.
    frame MATTS J. 20
    frame size 10"
    fork Rigid Steel
    color orange (blue)
    derailleur (f) no
    derailleur (r) no
    shifter front no
    brake lever Junior Alloy
    brake front V-Brake Linear A
    brake rear Coaster in R.Hub.
    chainwheel Steel 40 152L DG Silver
    chain Z410A
    hub front Alloy NT
    hub rear Steel Coaster
    rim Alloy Black
    freewheel 18T
    tyre front Lite 20 x 1.75"
    handlebar XM Steel Rise 550
    headset A-Head Black
    seat post Alloy 27.2
    saddle Matts kid 20
    kickstand Alloy center-type
    Bike Frame Geometry Image
    Frame Size 10"
    Tyre Sizes 20"
    Frame Size Inch 10
    ST seat tube [mm] 260
    TT top tube [mm] 460
    CS chain stay length [mm] 390
    HTA head tube angle [°] 69
    STA seat tube angle [°] 72
    BD bottom bracket drop [mm] 15
    HT head tube [mm] 110
    FL fork length [mm] 359
    R reach [mm] 318
    S stack [mm] 439
    WB wheel base [mm] 911
    SH stand over height [mm] Boy:507/Girl:456
    Body Height Cm 115 - 140

    To reduce production and delivery times, we are sometimes forced to make last-minute specification changes. Please be aware that those changes might not be reflected on these product pages and images.



    HIGHLIGHTS

    These models are built around a very small adult frame with 26" wheels. As the child grows, the wheels can be swapped for 650B wheels, meaning the bike will fit your child for longer.

    Many of our bikes feature rigid forks. This helps to keep the weight down, which is a big advantage for much lighter riders. Gears are also kept to a minimum, avoiding confusion for young riders, as well as reducing weight.

    All kids' bike frames are made with the same 6061 lightweight aluminium we use in our adult bikes; we don't cut any corners. They're also painted and lacquered in the same way, so the bikes can still look great even after a few tough knocks.

    Technologies

    Back to overview

    RACELITE 61 ALUMINIUM

    We use a minimum of 6061 grade aluminium on all our bikes. It’s particularly well suited to being shaped with our hydroforming and technoforming processes, which allow us to vary the wall thickness to create double-butted tubing and complex frame shapes. It’s also an alloy that welds easily, and once it has been carefully heat treated to maximise strength, it means we can create strong and lightweight bicycle frames for you to enjoy.

    Watch Video
    Back to overview

    F-MOUNT

    Being able to turn your bike into an all-weather commuter that has mudguards and other fittings can be a real plus, in particular when riding on wet and perhaps muddy roads and tracks on a regular basis. To make fitting easy, some of our bikes are F-MOUNT equipped. These integrated fittings mounts make adding mudguards fast and simple. Please note that some bikes require model-specific mudguards.

    Watch Video
    Back to overview

    K-MOUNT

    When using your bike in an urban environment, where you might not always have the option to use a specific bike stand, a kickstand is an ideal solution to park your bike safely. Some of our bikes come with a neatly integrated K-MOUNT, which makes fitting a MERIDA kickstand (or any commercial kickstand) easy. And if you don’t want to have a kickstand and prefer the clean appearance of your frame, the K-MOUNT is neatly tucked away underneath your chainstay, difficult to spot if you don’t know it is there.

    Watch Video
    Back to overview

    C-MOUNT

    Similar to our F-MOUNT, where various fixing points for mudguards are part of the frame offering, the C-MOUNT equipped bikes have the fixing points for a rear rack already integrated, making fitting fast, simple and reliable. The C-MOUNTS are an additional feature that improves the day-to-day versatility by adding loading capacity to your bike, ideal for commuting and shopping trips. Please note that some bikes require model-specific rear racks.
