brakes Side Pull / Coaster in R.Hub.

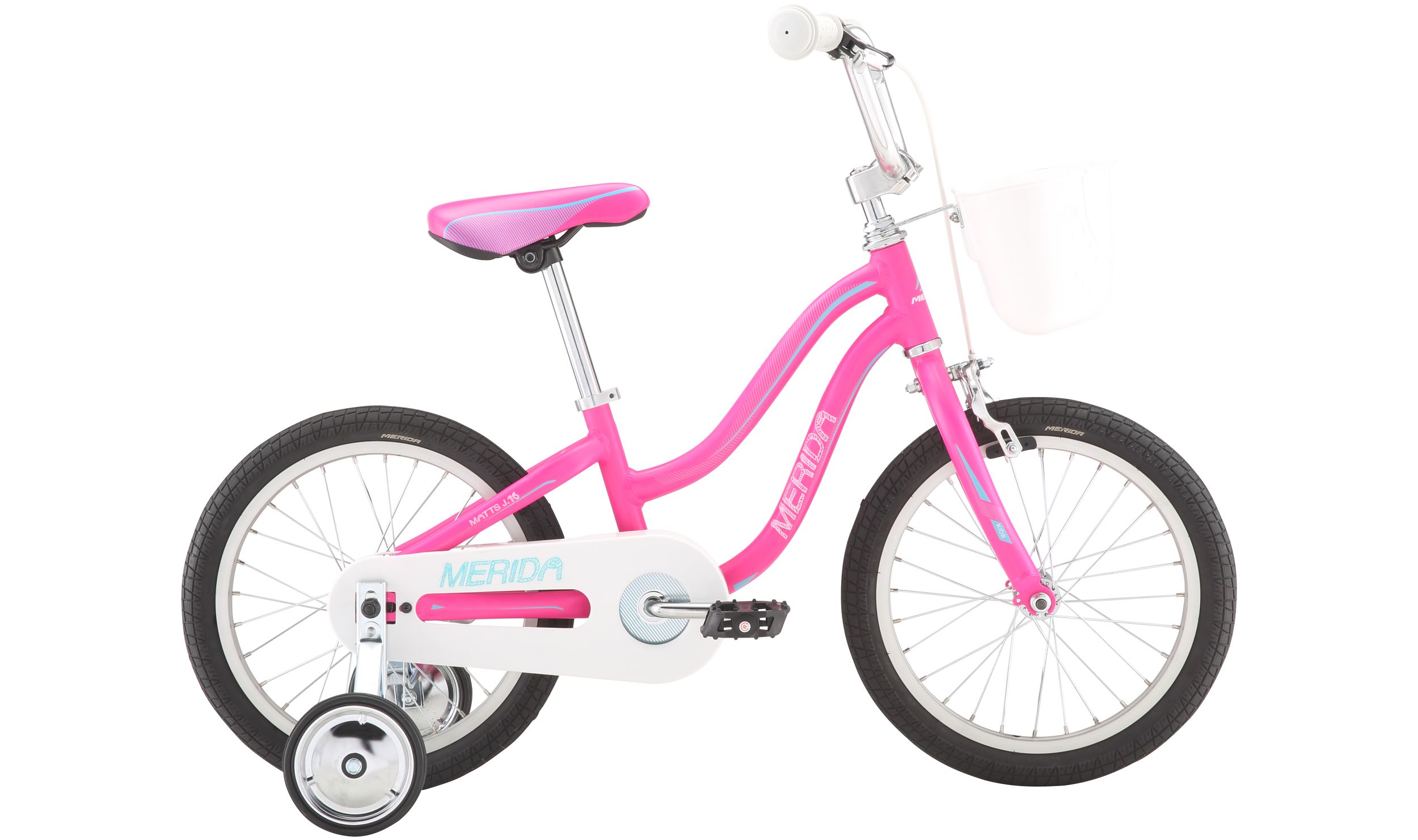

frame MATTS J. 16
frame size 9"
fork Rigid Steel
color pink (blue)
derailleur (f) no
derailleur (r) no
shifter front no
brake lever Kid Lever
brake front Side Pull
brake rear Coaster in R.Hub.
chainwheel Steel 28T 89L Silver
chain Z410A
hub front Steel NT
hub rear Steel Coaster
rim Alloy Silver
freewheel 18T
tyre front Kid Smooth 16 x 1.75"
handlebar Kid Alloy Rise 480 Silver
headset General Silver
seat post Steel 22.2
saddle Matts kid 16
kickstand no
| Frame Size | 9" |
| Tyre Sizes | 16" |
| ST seat tube [mm] | 235 |
| TT top tube [mm] | 400 |
| CS chain stay length [mm] | 340 |
| HTA head tube angle [°] | 70 |
| STA seat tube angle [°] | 72.5 |
| BD bottom bracket drop [mm] | 8 |
| HT head tube [mm] | 100 |
| FL fork length [mm] | 236 |
| R reach [mm] | 298 |
| S stack [mm] | 324 |
| WB wheel base [mm] | 790 |
| SH stand over height [mm] | 409 |
HIGHLIGHTS
These models are built around a very small adult frame with 26" wheels. As the child grows, the wheels can be swapped for 650B wheels, meaning the bike will fit your child for longer.
Many of our bikes feature rigid forks. This helps to keep the weight down, which is a big advantage for much lighter riders. Gears are also kept to a minimum, avoiding confusion for young riders, as well as reducing weight.
All kids' bike frames are made with the same 6061 lightweight aluminium we use in our adult bikes; we don't cut any corners. They're also painted and lacquered in the same way, so the bikes can still look great even after a few tough knocks.
