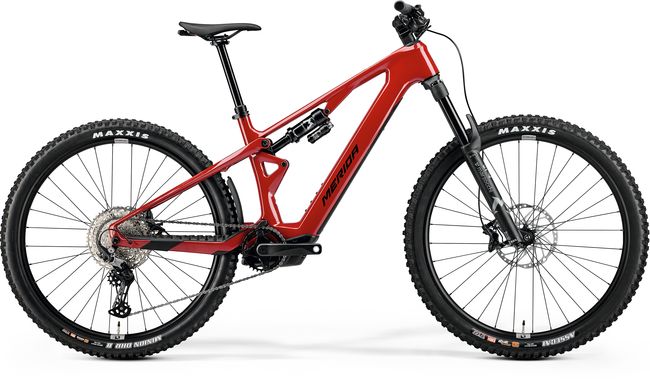

The new eONE-SIXTY SL 10K is loaded with the best equipment out there and introduces the compact and lightweight light-support Performance Line SX drive unit from Bosch to our new e-enduro platform. Its progressive geometry offers enduro-focused handling with the perfect combination of stability, climbing prowess and manoeuvrability, and adds in the punchy 55 Nm of torque to offer active riders the perfect balance between 'human-powered' handling and eMTB assistance.
The eONE-SIXTY SL represents a new breed of e-mountain bike, combining the poise of an unassisted bike with the power of a Bosch SX drive unit to help you ride further and faster. With a lightweight full carbon frame, 160 mm of well-balanced travel and a build that blends hard-hitting performance with low weight, it blurs the line between conventional and assisted riding. The eONE-SIXTY SL combines ‘human-powered’ bike handling and enduro tough but lightweight equipment with the latest compact Bosch Performance Line SX motor with 55 Nm, and a fully integrated 400 Wh battery plus an optional 250 Wh range extender for an experience that blurs the line between normal and e-bike. If you are the type of rider who likes to pedal hard and use the assistance for maximum fun on the trail, then the eONE-SIXTY SL should be your next trail and enduro companion.
- Lightweight full carbon fibre CF4 frame with 160 mm rear wheel travel
- SRAM XX Eagle Transmission 12-speed wireless drivetrain, SRAM Maven Ultimate brakes and FSA SC I30 carbon wheelset
- Fox 36 Factory fork with 160 mm travel and Float X Factory rear shock
- Bosch Performance Line SX drive unit, equipped with Purion 400 displayand powered by integrated 400 Wh battery - optional 250 Wh range extender
- Fast-rolling 29er wheel size as standard, with the option to run a mixed-size setup
- Reach-based AGILOMETER-inspired sizing system with long travel dropper post
Reviews & Awards
- material: carbon
- 160mm suspension travel
- 29x2,4" max. wheelsize
- 148x12mm axle standard
- fixed battery
- Air, 160mm suspension travel
- Tapered
- 44mm fork offset
- 29x2.6" max wheelsize
- integrated
- 110x15mm width front hub
- 148x12mm width rear hub
- 30mm inner width
- 6-Bolt
- SRAM XD
- material: carbon
- Tubeless ready (tubeless tape and valves included)
- 29x2.5 "
- fold
- TR EXO+ 3C MaxxGrip
- 29x2.4 "
- fold
- TR EXO+ 3C MaxxTerra
- including removeable lever, 6/4mm allen key
- 165 mm for all sizes
- 10-52
- 12 speed
- Flattop
- 4 piston
- 200mm
- 34.9mm diameter
- 0mm setback
- XSHORT/SHORT: 150mm travel seatpost : MID: 180mm travel seatpost ﾖ LONG: 210mm travel seatpost : XLONG: 240mm travel seatpost
- V-mount adapter
- incl. MERIDA minitool
- weighed at frame size M
- Weight may vary depending on bike size, finish or possible specification changes due to supply chain issues.
| Frame Size | Short | Mid | Long | XLong |
| Tyre Sizes | 29" | 29" | 29" | 29" |
| St Seat Tubes mm | 410 | 425 | 445 | 465 |
| Tt Top Tubes mm | 567 | 591 | 616 | 640 |
| Cs Chain Stays mm | 450 | 450 | 450 | 450 |
| HTA head tube angle [°] | 64 | 64 | 64 | 64 |
| STA seat tube angle [°] | 78.5 | 78.5 | 78.5 | 78.5 |
| Bd Bottom Bracket Drops mm | 27.5 | 27.5 | 27.5 | 27.5 |
| Ht Head Tube Lengths mm | 105 | 110 | 115 | 120 |
| Fl Fork Lengths mm | 571 | 571 | 571 | 571 |
| R Reach mm | 443 | 466 | 489 | 512 |
| S Stacks mm | 616 | 620 | 625 | 629 |
| Wb Wheel Base mm | 1228 | 1253 | 1278 | 1303 |
| Str Stack To Reach Ratio Pc | 1.39 | 1.33 | 1.28 | 1.23 |
| No. | Item-No. | Name | Info | Pieces | Torque NM |
| 1 | A2300000729 | BOLT | M6x1 OD15/17mm L69mm | 1 | |
| 2 | A2221000040 | BEARING | 172607V-2RS OD26mm ID17mm W7mm | 1 | |
| 3 | A2294000102 | WASHER | OD21mm ID17.1mm H3mm | 1 | |
| 4 | A2294000016 | WASHER | OD19mm ID15.1mm H3mm | 3 | |
| 5 | A2221000043 | BEARING | 3802V-2RS OD24mm ID15mm W7mm | 3 | |
| 6 | A2300000609 | SCREW | M10x1 L15mm | 1 | 15~17 |
| 7 | A2300000736 | BOLT | M6x1 OD10mm L39mm | 1 | |
| 8 | A2298000113 | SCREW | M6x1 L16mm | 2 | 8~10 |
| 9 | A2294000196 | WASHER | for M6 sunkenhead screw OD16mm | 4 | |
| 10 | A2300000693 | BOLT | M6x1 OD12mm L62mm | 1 | |
| 11 | A2300000737 | SCREW | M8x1 L49mm | 1 | 18~20 |
| 12 | A2294000224 | LOCK RING | for ID21 | 1 | |
| 13 | A2294000223 | WASHER | OD12.1mm ID15.5mm H3mm | 2 | |
| 14 | A2221000035 | BEARING | 6801V-2RS OD21mm ID12mm W5mm | 2 | |
| 15 | A2031000097 | LINK | 1 | ||
| 16 | A2262000059 | WASHER | OD15.5mm ID12.1mm H31mm | 1 | |
| 17 | A2300000743 | SCREW | M15x1 L20.5mm | 2 | 23~25 |
| 18 | A2294000225 | LOCK RING | for ID24 | 2 | |
| 19 | A2302000109 | NUT | M15x1 flipchip | 2 | |
| 20 | A2292000141 | WASHER | OD13mm ID9mm H1mm | 1 |
