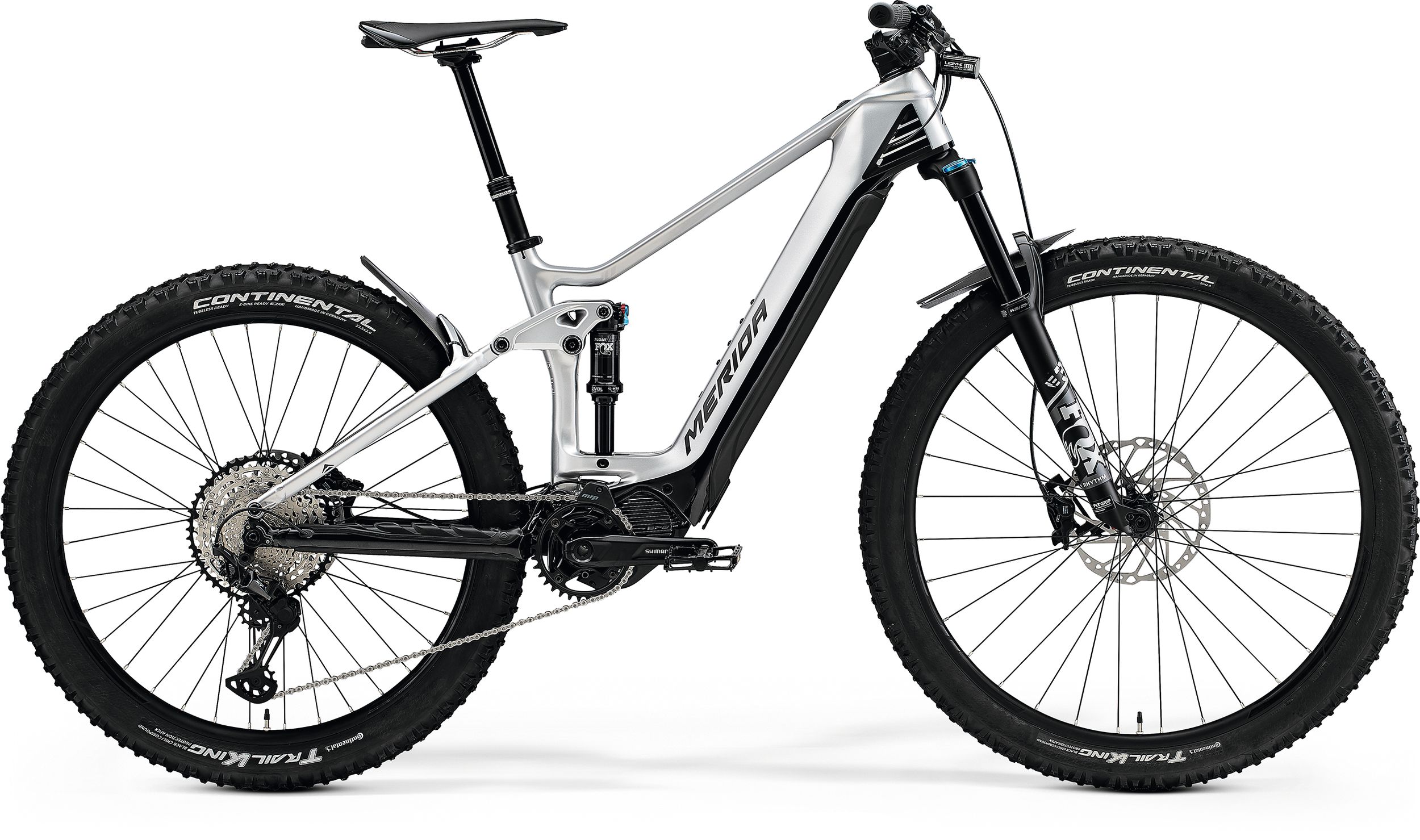

eONE-FORTY 8000

‘C-Mount’ equipped bikes have the fixing points for a rear rack already integrated (some bikes require model specific rear rack), making fitting fast, simple and reliable.

Steering precision is vital to safe and confident handling, and the X-TAPER HEADTUBE allows us to significantly boost this precision. A larger headset diameter at the bottom paired with a smaller one at the top helps to deal with the strains modern riding and equipment can put on the headtube, all without adding unnecessary weight. It allows tapered forks to be fitted with ease and delivers precise and confidence-inspiring steering.

This is a process we use to give a nice flat finish to our welds instead of the scaled, 'stack of coins' effect TIG welded joints often have. The welder uses the welding torch to go over the joint twice, helping to smooth out the filler material. It takes a lot of skill to do this, but it delivers strong and smart-looking frames that have the appearance of a carbon fibre frame at first look.

On the majority of our frames, we run the gear and brake cables and hoses through the frame. The cables enter and exit the frame through smooth sockets, or we use one of our other systems like SMART ENTRY or WIRE PORT to be routed through. Running the cables inside the frame protects them from the elements, gives a clean and neat look and can offer aerodynamic advantages.

Shimano's Di2 electronic shifting system offers fast, smooth and reliable shifting. In particular, in the road world, it has proven itself as the primary choice when top performance is at the top of the agenda. With that in mind, we have a broad selection of performance road frames that are Di2 READY and can accommodate the electrical cable, battery and other little tweaks that the system requires.

NANO MATRIX CARBON is a special kind of carbon fibre where we add extremely tiny, nano-scale particles to the resin that binds the individual carbon fibres together. These then work on a molecular level to protect them from damage. It’s so effective that it can actually increase the finished carbon fibre’s impact resistance by up to 40%, allowing us to build stronger and lighter composite frames that result in a faster and tougher bike.

This is a method we use to manufacture our carbon fibre frames. First, the carbon fibre that makes up the frame is laid around special formers. We then use a bladder to compress the layers against the outside of the frame mould, giving a smooth and wrinkle-free internal finish, removing any voids in between the layers of carbon that can cause potential weak points, resulting in a stronger, lighter frame.

We use a minimum of 6061 grade aluminium on all our bikes. It’s particularly well suited to being shaped with our hydroforming and technoforming processes, which allow us to vary the wall thickness to create double-butted tubing and complex frame shapes. It’s also an alloy that welds easily, and once it has been carefully heat treated to maximise strength, it means we can create strong and lightweight bicycle frames for you to enjoy.

Integrated mount on the chainstay to fit a Merida kickstand (or any commercial kickstand).

Specifically located openings near the head tube which work like a chimney and allow the warm air to dissipate to guarantee the optimum operating temperature of the internal battery. The Thermo Gate enables the battery to perform at its best, in any condition.

A two-component battery cover, which offers excellent protection for the internal battery. The softer (outer) layer reduces noises, seals the downtube to keep out dirt and water and absorbs hits from trail debris easily, while the harder (inner) layer ensures that the battery does not get damaged and gives it the structural shape. All critical parts, such as the rubber strap and o-rings, can be replaced as needed.

First introduced in our 2015 Ninety-Six, the latest version of the 'Internal Block' is incorporated directly in the frame and prevents the fork crown from hitting the frame in case of a crash or an extreme steering angle. As an extra layer of protection, there are added rubber bumpers on the frame to avoid any frame damage from the fork crown.
