Frame Size	XS	S	M	L
Tyre Sizes	27.5"	27.5"	27.5"	27.5"
Frame Size Inch	14.5	16	18	20
St Seat Tubes mm	368	407	457	508
Tt Top Tubes mm	550	570	590	605
Cs Chain Stays mm	420	420	420	420
HTA head tube angle [°]	70.5	70.5	70.5	70.5
STA seat tube angle [°]	75	73.5	73.5	73
Bd Bottom Bracket Drops mm	40	40	40	40
Ht Head Tube Lengths mm	120	125	135	145
Fl Fork Lengths mm	450	450	450	450
Fo Fork Offset mm	45	-	-	-
R Reach mm	394	401	419	425
S Stacks mm	565	569	579	588
Wb Wheel Base mm	1043	1047	1068	1078
Sh Stand Over Height mm	678	706	746	784

To reduce production and delivery times, we are sometimes forced to make last-minute specification changes. Please be aware that those changes might not be reflected on these product pages and images.

HIGHLIGHTS

MATTS SPEED FRAME

6061 series double butted and technoformed aluminium.

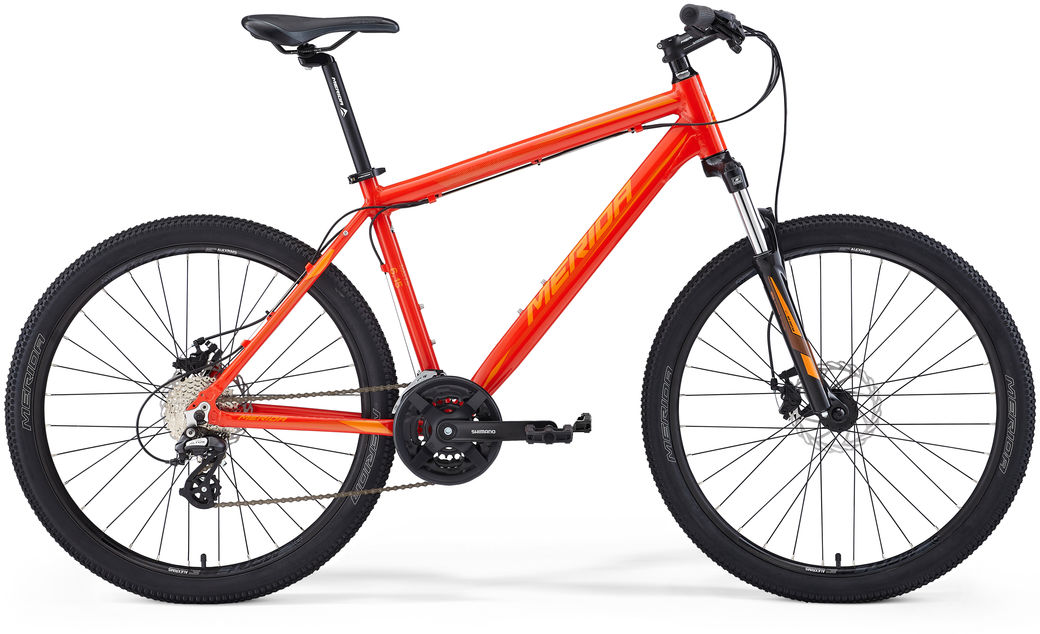

MATTS HARDTAIL

The Matts 10-V is a hardtail mountain bike that rolls on smaller 26” wheels making it ideal for dirt curious junior riders.

MECHANICAL DISC BRAKES

Mechanical brakes use a normal lever connected to the brake caliper by a cable. Using disc brakes offers a large number of advantages, foremost of which is that they provide controllable and predictable stopping power regardless of the conditions. Having disc brakes on your bike means that even when it’s wet, braking power is unaffected. They also offer much improved stopping power as a much higher amount of mechanical force can be applied. Because they use a metal rotor attached to the hub rather than a braking surface on the rim, they don't wear out as quickly and allow you to use lighter weight, disc-specific rims.
