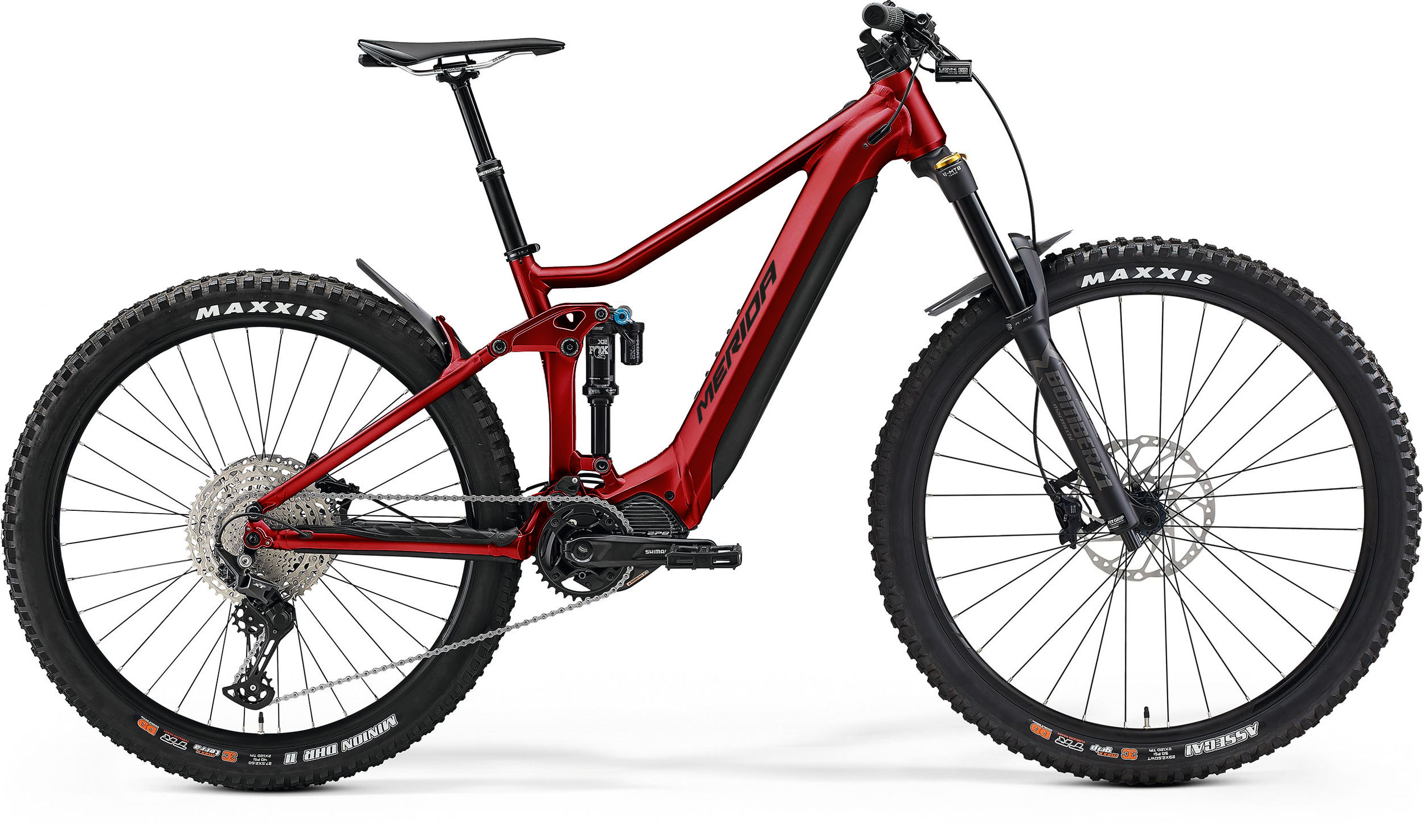

eONE-SIXTY 700 (EP6)

‘C-Mount’ equipped bikes have the fixing points for a rear rack already integrated (some bikes require model specific rear rack), making fitting fast, simple and reliable.

Steering precision is vital to safe and confident handling, and the X-TAPER HEADTUBE allows us to significantly boost this precision. A larger headset diameter at the bottom paired with a smaller one at the top helps to deal with the strains modern riding and equipment can put on the headtube, all without adding unnecessary weight. It allows tapered forks to be fitted with ease and delivers precise and confidence-inspiring steering.

This is a process we use to give a nice flat finish to our welds instead of the scaled, 'stack of coins' effect TIG welded joints often have. The welder uses the welding torch to go over the joint twice, helping to smooth out the filler material. It takes a lot of skill to do this, but it delivers strong and smart-looking frames that have the appearance of a carbon fibre frame at first look.

On the majority of our frames, we run the gear and brake cables and hoses through the frame. The cables enter and exit the frame through smooth sockets, or we use one of our other systems like SMART ENTRY or WIRE PORT to be routed through. Running the cables inside the frame protects them from the elements, gives a clean and neat look and can offer aerodynamic advantages.

Many of our frames offer internal cable routing, where the gear and brake cables are run through the frame for maximum protection and a clean look. Some internally run cables can rattle when riding over uneven surfaces, but our SMART ENTRY system prevents this from happening. Cables, housings and brake hoses are clamped under tension to prevent noisy cable movement. All inlets are completely interchangeable to deal with any kind of cable or wire.

Shimano's Di2 electronic shifting system offers fast, smooth and reliable shifting. In particular, in the road world, it has proven itself as the primary choice when top performance is at the top of the agenda. With that in mind, we have a broad selection of performance road frames that are Di2 READY and can accommodate the electrical cable, battery and other little tweaks that the system requires.

We use a minimum of 6061 grade aluminium on all our bikes. It’s particularly well suited to being shaped with our hydroforming and technoforming processes, which allow us to vary the wall thickness to create double-butted tubing and complex frame shapes. It’s also an alloy that welds easily, and once it has been carefully heat treated to maximise strength, it means we can create strong and lightweight bicycle frames for you to enjoy.

Integrated mount on the chainstay to fit a Merida kickstand (or any commercial kickstand).

The e-bike motor mount has a sophisticated shape that is only possible to create with casting technology. Casting this piece allows us to create a complex yet lightweight shape that gives an extremely strong connection between the motor and the frame for improved performance and reliability. It also gives the bike and motor a smooth and cleanly integrated appearance.

First introduced in our 2015 Ninety-Six, the latest version of the 'Internal Block' is incorporated directly in the frame and prevents the fork crown from hitting the frame in case of a crash or an extreme steering angle. As an extra layer of protection, there are added rubber bumpers on the frame to avoid any frame damage from the fork crown.

A two-component battery cover fitted to bikes with an internally mounted battery. It protects the battery from dirt and moisture, with a softer outer layer that absorbs impacts. An easy-to-use twist lock mechanism secures the cover in place without the need for tools with a simple and light action that makes it easy to access the battery for off-bike charging, but prevents the cover from falling off, even when riding on the roughest terrain.
