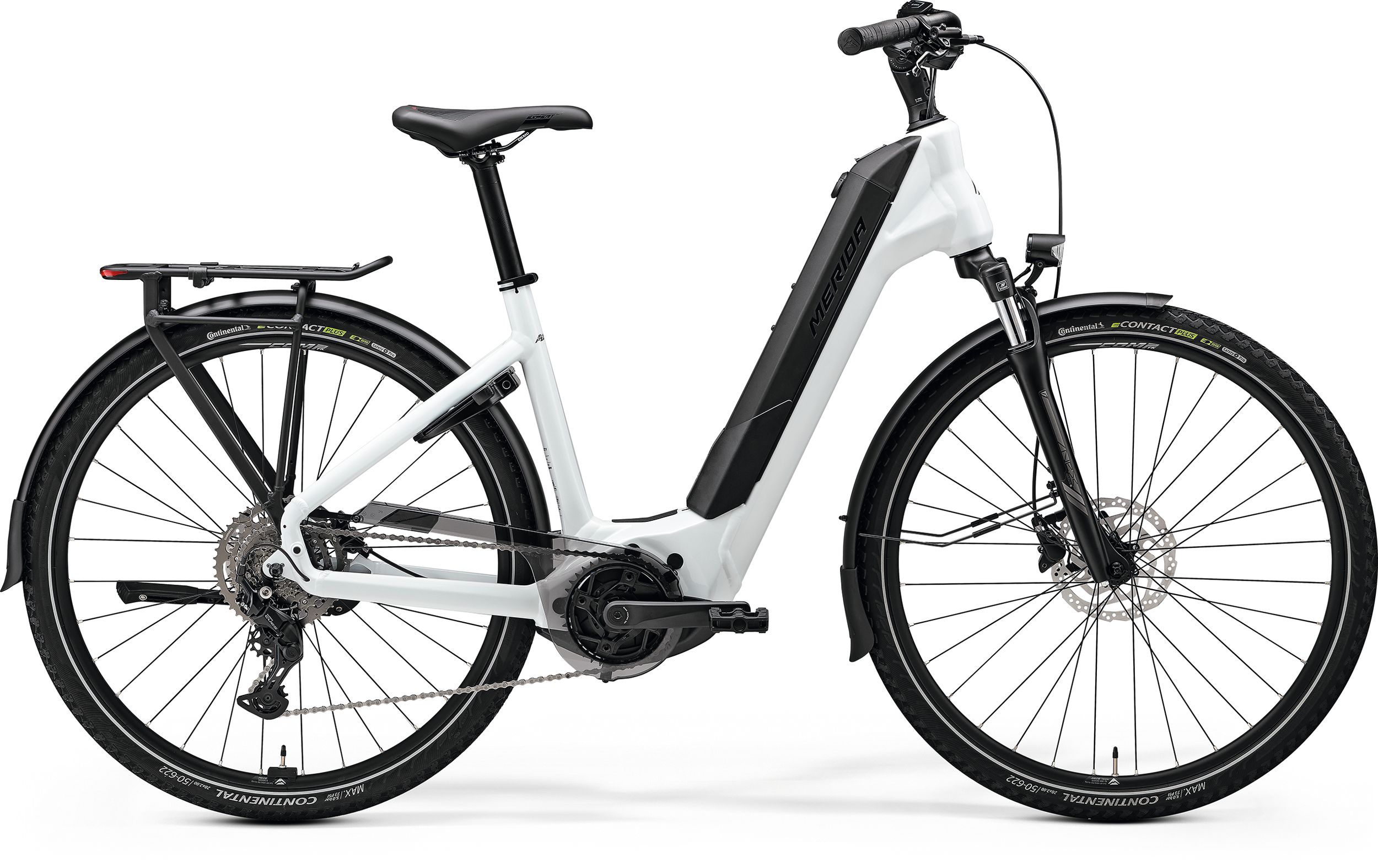

Bilo da je vaš pouzdani gradski suputnik, vaš udoban i lak prijevoz do posla ili vaše vozilo za vikend aktivnosti, eFLOAT CITY 400 vas pokriva. A kako biste bili sigurni da se može nositi s bilo kojom situacijom u kojoj se nađete, dolazi u potpunosti opremljen s ugrađenom bravom, stražnjim nosačem, blatobranima, svjetlima i postoljem, tako da možete obaviti kupovinu, parkirati svoj bicikl gdje god želite i vratiti se kad padne noć. Da bi se bicikl savršeno kretao i da bi Bosch Performance Line motor pružio savršenu podršku za vašu vožnju, opremili smo eFLOAT CITY 400 s glatkim 9-brzinskim Shimano pogonom, koji ima Linkglide tehnologiju za precizno i pouzdano mijenjanje brzina, čak i pod opterećenjem.
eFLOAT CITY uvodi gradske bicikle s low-step ramom s Boschevim pogonom u ponudu MERIDA. Utemeljen na provjerenom dizajnu okvira ENERGY CRADLE, koji pruža super stabilnu vožnju čak i pri jakom kočenju i na neravnim površinama i u kombinaciji s dobro poznatom i ultra-pouzdanom Bosch Performance linijom pogonskih jedinica, vožnja gradom postaje povjetarac. Svi modeli dolaze u potpunosti opremljeni s ugrađenom bravom, blatobranima, svjetlima, postoljem i prtljažnikom kako bi snalaženje u gradskom životu bilo mnogo lakše. A kako bi krstarenje gradom ili izleti vikendom bili još udobniji, svi modeli eFLOAT CITY imaju suspenzijske vilice i podesivu osovinu kako bi vam pomogli pronaći savršenu poziciju za vožnju.
- Extra low step-through ENERGY CRADLE frame design
- Internally mounted, user removable 620 Wh battery
- Powerful Bosch Performance Line motor with 75 Nm
- Wide-range 9-speed Shimano CUES U4000 drivetrain
- Fully equipped with guards, lights, lock, rack and kickstand
- Fast-rolling 700c wheels and comfy 50 mm tyres with reflective strip
- material: aluminium
- 700x50C (with fender) max. wheelsize
- 135x9mm axle standard
- internal
- Coil
- 63mm suspension travel
- 700x52C max wheelsize
- 2 piston
- 180mm
- material: aluminium
- 34.9mm diameter
- 0mm setback
- V-mount
- 165mm for all sizes
- 11-46 teeth
- 9 speed
- 100x9mm width front hub
- 32 spoke holes
- Centerlock
- 135x9mm width rear hub
- 32 spoke holes
- Centerlock
- 20mm inner width
- material: aluminium
- 622-50
- wire
- reflecting line
- 622-50
- wire
- reflecting line
- removeable
- weighed at frame size M
- Weight may vary depending on bike size, finish or possible specification changes due to supply chain issues.
| Veličina rame | XS | S | M | L | XL |
| Tire Sizes | 28" | 28" | 28" | 28" | 28" |
| St Seat Tubes Mm | 380 | 430 | 480 | 530 | 580 |
| Tt Top Tubes Mm | 580 | 595 | 615 | 635 | 655 |
| Cs Chain Stays Mm | 470 | 470 | 470 | 470 | 470 |
| Hta Head Tube Angles Deg | 70 | 70 | 70 | 70 | 70 |
| Sta Seat Tube Angle Deg | 75.5 | 75.5 | 75.5 | 75.5 | 75.5 |
| Bd Bottom Bracket Drops Mm | 65 | 65 | 65 | 65 | 65 |
| Ht Head Tube Lengths Mm | 170 | 175 | 180 | 190 | 200 |
| Fl Fork Lengths Mm | 475 | 475 | 475 | 475 | 475 |
| R Reachs Mm | 386 | 399 | 418 | 435 | 452 |
| S Stacks Mm | 656 | 661 | 665 | 675 | 684 |
| Wb Wheel Base Mm | 1113 | 1128 | 1149 | 1169 | 1190 |
| Str Stack To Reach Ratio Pc | 1.58 | 1.53 | 1.49 | 1.45 | 1.51 |
| Broj | Broj stavke | Naziv | Info | Komadi | Okretni moment NM |
| 1 | A2300000004 | SCREW | M3x0.5 L6mm | 2 | 2~4 |
| 2 | A2311000072 | RD-HANGER | DH-013F | 1 | |
| 3 | A2258000079 | CABLE PLUG | for rear brake | 1 | |
| 4 | A2298000278 | SCREW | 3x16mm screw for plastic parts | 2 | 2~4 |
| 5 | A2263000019 | COVER | for drive unit ; left side | 1 | |
| 6 | A2300000173 | SCREW | M4x0.7 L10mm | 4 | 3~5 |
| 7 | A2143000167 | BLIND PLUG | for motorbracket screw holes | 6 | |
| 8 | A2263000018 | COVER | for drive unit ; right side | 1 | |
| 9 | A2298000160 | SCREW | M4x0.7 L10mm | 7 | 3~5 |
| 10 | A2300000530 | BOLT | M5x0.8 L39.5mm | 1 | 4~6 |
| 11 | A2160000012 | O-RING | OD6mm ID4mm | 2 | |
| 12 | A2221000048 | BUSHING | for battery cover | 2 | |
| 13 | A2263000017 | COVER | for battery; frame size XL | 1 | |
| 13 | A2263000016 | COVER | for battery; frame size L | 1 | |
| 13 | A2263000015 | COVER | for battery; frame size M | 1 | |
| 13 | A2263000014 | COVER | for battery; frame size S | 1 | |
| 13 | A2263000013 | COVER | for battery; frame size XS | 1 | |
| 14 | A2300000232 | SCREW | 3x12mm plastic screw | 4 | |
| 15 | A2263000021 | MOUNT | for charging port | 1 | |
| 16 | A2263000038 | COVER | for lock and battery | 1 | |
| 17 | A2298000119 | SCREW | M5x0.8 L10mm | 4 | 3~5 |
| 18 | A2136000122 | MOUNT | for charging port cover | 1 | |
| 19 | A2191000228 | HEAD SET | MERIDA/VP-8253 (MH-P16/MH-P16) for 1,5" Tapered fork | 1 | |
| 19 | A2191000224 | HEAD SET | MERIDA/VP-8254 (MH-P16/MH-P16) for 1 1/8" Tapered fork | 1 | |
| 20 | A2143000083 | CABLE PLUG | for front light cable | 1 | |
| 21 | A2298000311 | SCREW | M5x0.8 L12mm | 2 | 3~5 |
| 22 | A2300000204 | NUT | for fender; M6 | 1 | |
| 23 | A2300000520 | SCREW | A2063000002 | 1 | 10~12 |
| 24 | A2363000406 | PROTECTOR | for step through area | 1 |
