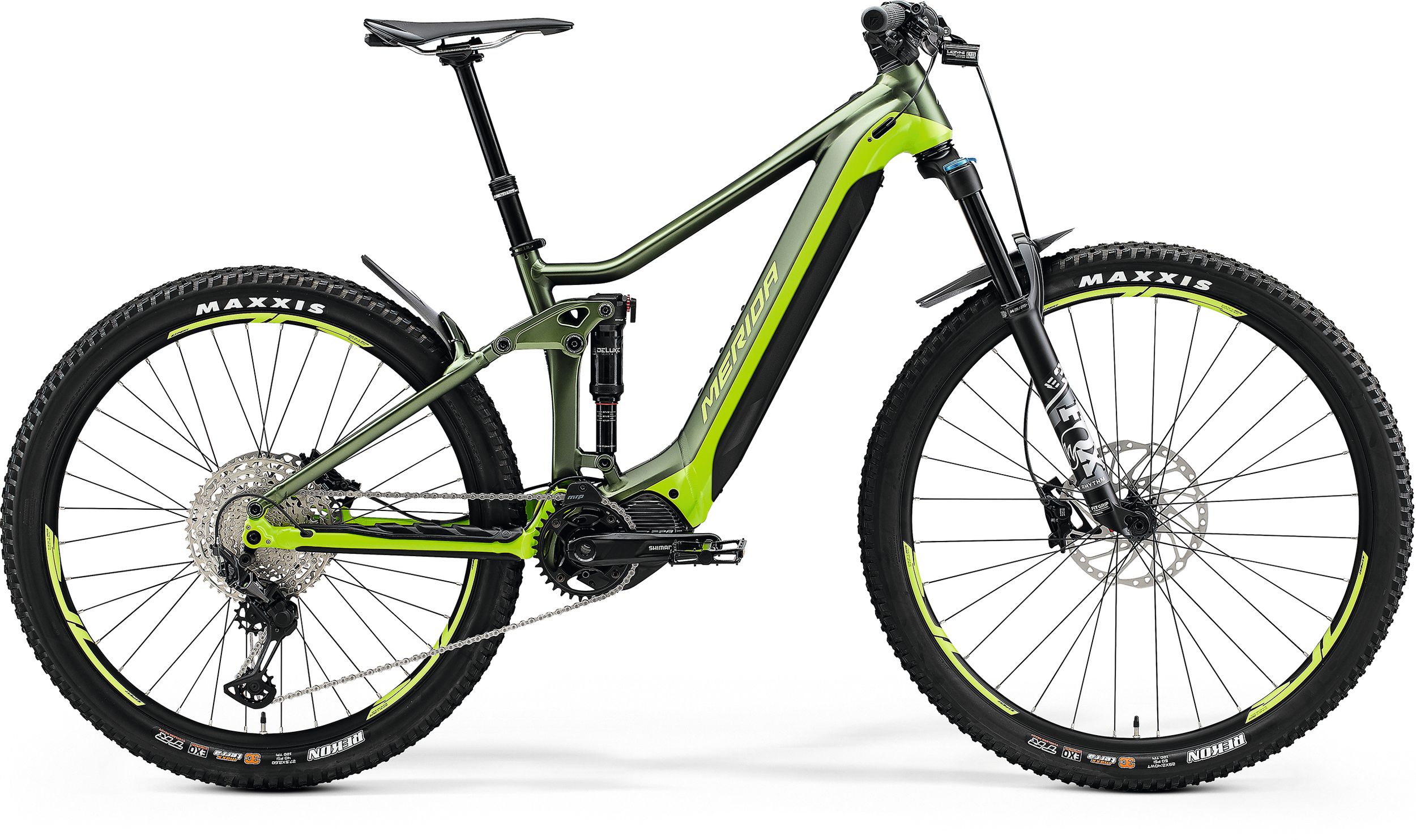

By combining our aggressive trail geometry with a lightweight but tough all-aluminium frame, the eONE-FORTY 775 delivers the power to ride more trails - and that means more fun. The powerful Shimano EP8 drive unit and high-capacity 750 Wh battery make mincemeat of the toughest and longest climbs, while the Fox and RockShox suspension setup delivers assured performance and the Shimano 12-speed drivetrain is the last word in refinement.
The eONE-FORTY might be the little sibling to our multiple award and test winning eONE-SIXTY, but when it comes to providing agile trail handling with superb flow and fun, it plays second fiddle to no-one. Equipped with Shimano’s powerful yet refined EP8 drive unit and with the 630 Wh or 750 Wh battery (model specific) integrated seamlessly into the frame, it’s the perfect partner for all kinds of adventures. The trail-specific, balanced geometry is paired to a mixed 29er/27.5” wheel size setup that delivers flow and fun for riders of all abilities, while a steeper seat angle boosts climbing capability, something ideal for an all-day e-bike mission. The low bottom bracket and lower standover height mean extra confidence while the 140 mm of front wheel and 133 mm of rear wheel travel offer up control, comfort and real rough terrain capability. The eONE-FORTY’s versatility is boosted even further by the EQ models that come fully equipped with mudguards, rack, lights and kickstand so it can tackle the mean streets as well as muddy trails.
- Tough all-aluminium chassis with integrated 750 Wh battery
- Powerful Shimano EP8 drive unit
- Mixed wheel size setup with 140/130 mm travel split
- Quality Fox and RockShox suspension
- Smooth 12-speed Shimano drivetrain
- Powerful four-piston brakes
- 29mm inner width
- material: aluminium
- Tubeless ready (tubeless tape and valves not included)
- material: aluminium
- 133mm suspension travel
- 27.5x2.8" max. wheelsize
- 148x12mm axle standard
- intube
- Air
- 140mm suspension travel
- Tapered
- 51mm fork offset
- 29x2.5" max wheelsize
- platform
- 4 piston
- 203 mm
- 203 mm
- 4 piston
- 4 piston
- 110x15mm width front hub
- 32 spoke holes
- Centerlock
- 148x12mm width rear hub, 36 spoke holes
- Centerlock
- 34 teeth
- 165 mm
- 29x2.4"
- fold
- 3C EXO MaxxTerra
- 27.5x2.6"
- fold
- TR 3C EXO MaxxTerra
- 110x15mm width front hub
- 32 spoke holes
- Centerlock
- 148x12mm width rear hub, 36 spoke holes
- Centerlock
- V-mount
- incl. MERIDA minitool
| Velikost okvirja | S | M | L | XL | XXL |
| Tire Sizes | 29/27.5" | 29/27.5" | 29/27.5" | 29/27.5" | 29/27.5" |
| St Seat Tubes Mm | 405 | 415 | 430 | 450 | 470 |
| Tt Top Tubes Mm | 561 | 581 | 603 | 624 | 645 |
| Cs Chain Stays Mm | 439.5 | 439.5 | 439.5 | 439.5 | 439.5 |
| Hta Head Tube Angles Deg | 66.5 | 66.5 | 66.5 | 66.5 | 66.5 |
| Sta Seat Tube Angle Deg | 76.5 | 76.5 | 76.5 | 76.5 | 76.5 |
| Bd Bottom Bracket Drops Mm | 25 | 25 | 25 | 25 | 25 |
| Ht Head Tube Lengths Mm | 110 | 115 | 120 | 125 | 130 |
| Fl Fork Lengths Mm | 551 | 551 | 551 | 551 | 551 |
| R Reachs Mm | 410 | 430 | 450 | 469 | 489 |
| S Stacks Mm | 622 | 627 | 631 | 635 | 640 |
| Wb Wheel Base Mm | 1160 | 1182 | 1204 | 1226 | 1248 |
| Sh Stand Over Height Mm | 729 | 730 | 727 | 733 | 747 |
| Number | Item Number | Name | Info | Pieces | Torque NM |
| 1 | A2294000016 | WASHER | OD19mm ID15.1mm H3mm | 2 | |
| 2 | A2221000043 | BEARING | 3802V-2RS OD24mm ID15mm W7mm | 2 | |
| 3 | A2300000263 | BOLT | M10x1 OD15mm L64mm | 1 | |
| 4 | A2300000264 | SCREW | M10x1 L20mm | 1 | 16~18 |
| 5 | A2300000364 | SCREW | M6x1 L13.5mm | 1 | 10~12 |
| 6 | A2300000356 | BOLT | M6x1 OD10mm L51.5mm | 1 | |
| 7 | A2035000014 | LINK | 1 | ||
| 8 | A2221000034 | BEARING | 6800V-2RS OD19mm ID10mm W5mm | 2 | |
| 9 | A2300000235 | CREW | M10x1 L15mm | 2 | 14~16 |
| 10 | A2294000093 | WASHER | OD15mm ID10.1mm H3mm | 2 | |
| 11 | A2221000035 | BEARING | 6801V-2RS OD21mm ID12mm W5mm | 2 | |
| 12 | A2300000266 | SCREW | M8x0.75 L16mm | 1 | 12~14 |
| 13 | A2300000265 | BOLT | M8x0.75 OD12mm L68mm | 1 | |
| 14 | A2294000023 | WASHER | OD15mm ID12mm H3mm | 2 | |
| 15 | A2294000099 | WASHER | OD17.5mm ID12.1mm H2mm | 4 | |
| 16 | A2221000039 | BEARING | 12214V-2RS OD21mm ID12mm W4mm | 8 | |
| 17 | A2300000433 | BOLT | M8x0.75 OD12mm | 4 | |
| 18 | A2300000434 | SCREW | M8x0.75 L14mm | 4 | 12~14 |
| 20 | A2311000067 | RD-HANGER | DH-057 | 1 | |
| 21 | A2300000185 | SCREW | M3x0.5 L20.5mm | 2 | 2~4 |
| SMALL PARTS | see pdf file |
