A sleek and stylish fitness bike with quality components that deliver smooth and accurate action at a sensible price. The triple butted aluminium frame paired with the full carbon fork keeps weight down, while the straight handlebar setup creates a more upright and, therefore, comfortable riding position and improves the visibility of what lies ahead. Multiple fixing points enhance the day to day usability.

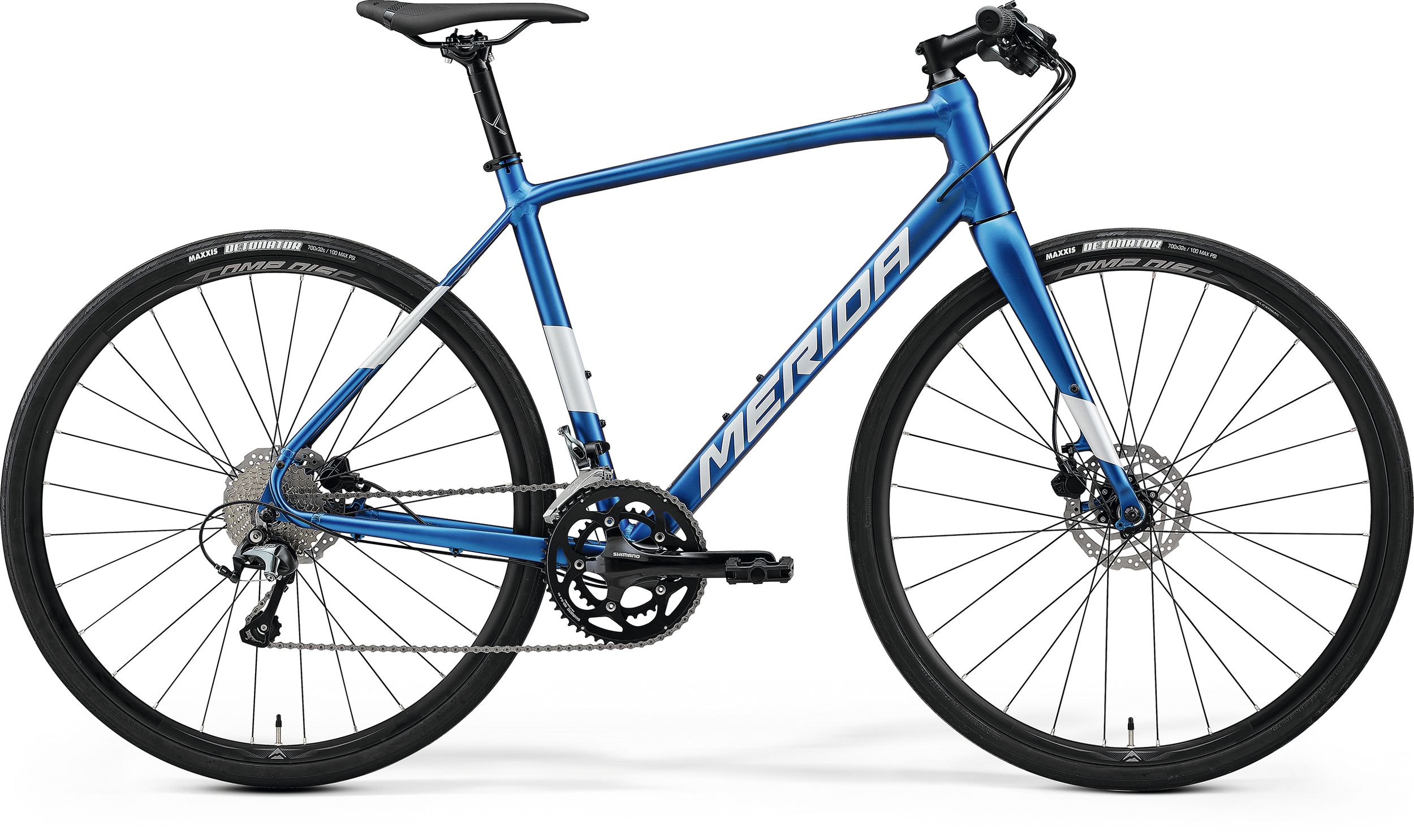

Fast and lightweight, the SPEEDER shares its genes with our road bike range. The geometry offers an extended reach for added stability while providing a more upright and comfortable riding position. The sporty yet comfort inspired geometry paired with control enhancing flat handlebars and powerful disc brakes make the SPEEDER ideal for fast commuting or fitness rides. Wider tyres and more tyre clearance underline the comfort element even further and give the SPEEDER more grip when it counts. Road.cc call the 900 an 'excellent fast flat-bar road bike with awesome performance' and the 200 'an enjoyable flat-barred flyer for fitness, commuting and everyday riding'.
- Lightweight aluminium frame with full carbon fork
- Shimano Tiagra double chain set drivetrain
- Sporty yet comfortable geometry and seating position
- Flat handlebar setup
- Powerful hydraulic disc brakes
- Multiple fixing points for fenders and a rear rack
- 17mm inner width
- 22mm height
- material: aluminium
- material: aluminium
- 700x35C max. wheelsize
- 100x9/135x9mm axle standard
- BSA bottom bracket standard
- Tapered
- material: carbon
- 700x35C max. wheelsize
- 2 piston
- 160 mm
- 160 mm
- 2 piston
- 2 piston
- 100x9mm width front hub
- 28 spoke holes
- centerlock
- 135x9mm width rear hub
- 28 spoke holes
- centerlock
- 50-34 teeth
- 170 mm-XS/S/SM/ML, 175 mm-L/XL
- 700x32C
- wire
- 700x32C
- wire
- 100x9mm width front hub
- 28 spoke holes
- centerlock
- 135x9mm width rear hub
- 28 spoke holes
- centerlock
- V-mount
| Velikost okvirja | XXS | XS | S | S/M | M/L | L | XL |
| Tire Sizes | 28" | 28" | 28" | 28" | 28" | 28" | 28" |
| St Seat Tubes Mm | 440 | 470 | 500 | 520 | 540 | 560 | 590 |
| Tt Top Tubes Mm | 545 | 555 | 561 | 571 | 583 | 597 | 610 |
| Cs Chain Stays Mm | 438 | 438 | 438 | 438 | 438 | 438 | 438 |
| Hta Head Tube Angles Deg | 70 | 70 | 70.5 | 71 | 71.5 | 72 | 72 |
| Sta Seat Tube Angle Deg | 73.5 | 73.5 | 73.5 | 73.5 | 73.5 | 73.5 | 73.5 |
| Bd Bottom Bracket Drops Mm | 65 | 65 | 65 | 65 | 65 | 65 | 65 |
| Ht Head Tube Lengths Mm | 140 | 150 | 160 | 170 | 190 | 215 | 240 |
| Fl Fork Lengths Mm | 395 | 395 | 395 | 395 | 395 | 395 | 395 |
| R Reachs Mm | 381 | 389 | 392 | 398 | 404 | 410 | 416 |
| S Stacks Mm | 552 | 562 | 573 | 585 | 606 | 631 | 655 |
| Wb Wheel Base Mm | 1040 | 1051 | 1053 | 1057 | 1065 | 1074 | 1088 |
| Sh Stand Over Height Mm | 719 | 744 | 769 | 787 | 806 | 828 | 855 |
| Number | Item Number | Name | Info | Pieces | Torque NM |
| 1 | A2258000056 | CABLE PLUG | for rear brake | 2 | |
| 2 | A2258000324 | SCREW | M5x0.8 L10mm | 1 | 3~5 |
| 3 | A2240000010 | CABLE GUIDE | for FD | 1 | |
| 4 | A2298000093 | SCREW | M4x0.7 L6mm | 1 | 2~4 |
| 5 | A2298000028 | SCREW | M5x0.8 L12mm | 1 | 3~5 |
| 6 | A2311000011 | RD-HANGER | 8317-0000P for ROAD-RD | 1 | |
| 7 | A2300000088 | SCREW | M4x0.7 L9mm | 1 | 2~4 |
