- material: aluminium
- 27,5x2,25 max. wheelsize
- 135x9mm axle standard
- external
- max. 504 Wh
- Coil
- 80mm suspension travel
- 27,5x2,4" max wheelsize
- 2 piston
- 2 piston
- 180 mm
- 180 mm
- 30.9mm diameter
- 15mm setback
- 40mm seatpost suspension travel
- V-mount
- 38 teeth
- Shimano FC-E6100
- 170 mm
- 11-36 teeth
- 9 speed
- 20mm inner width
- material: aluminium
- 27.5x2.25"
- wire
- reflecting line
- 27.5x2.25"
- wire
- reflecting line
- 100x9mm width front hub
- 32 spoke holes
- Centerlock
- 135x9mm width rear hub
- 36 spoke holes
- Centerlock
- 60Nm
- 504Wh
- 2A charging current
weighed with 27.5" wheels and at frame size S, without pedals
| Ramstorlek | S | M | L |
| Däckstorlekar | 27.5" | 27.5" | 27.5" |
| ST - Seat Tube (mm) | 430 | 480 | 530 |
| TT - Top Tube (mm) | 588 | 605 | 623 |
| CS - Chain Stays (mm) | 445 | 445 | 445 |
| HTA - Head Tube Angle (°) | 68.5 | 68.5 | 68.5 |
| STA - Seat Tube Angle (°) | 73 | 73 | 73 |
| BD - Bottom Bracket Drops (mm) | 50 | 50 | 50 |
| HT - Head Tube Length (mm) | 170 | 190 | 210 |
| FL - Fork Length (mm) | 484 | 484 | 484 |
| R - Reach (mm) | 392 | 403 | 415 |
| S - Stack (mm) | 642 | 661 | 680 |
| WB - Wheel Base (mm) | 1114 | 1133 | 1153 |
| SH - Stand Over Height (mm) | 472 | 465 | 461 |
| Siffra | Item Number | Namn | Info | Pieces | Torque NM |
| 1 | A2300000228 | SCREW | M4x0.7 L14mm | 2 | 1.5~2 |
| 2 | A2258000127 | CABLE GUIDE | for right side | 1 | |
| 3 | A2258000128 | CABLE GUIDE | for left side | 1 | |
| 4 | A2258000099 | CABLE PLUG | for rear brake and speed sensor | 1 | |
| 5 | A2311000072 | RD-HANGER | DH-013F | 1 | |
| 6 | A2300000004 | SCREW | M3x0.5 L6mm | 2 | 2~4 |
| 7 | A2300000468 | SCREW | M8x1.25 L18.5mm | 3 | 11~12 |
| 8 | A2300000469 | SCREW | M8x1.25 L23mm | 3 | 11~12 |
| 9 | A2300000204 | NUT | for fender; M6 | 1 | |
| 10 | A2300000288 | SCREW | M6x1.0 L18mm | 1 | 10~12 |
Highlights

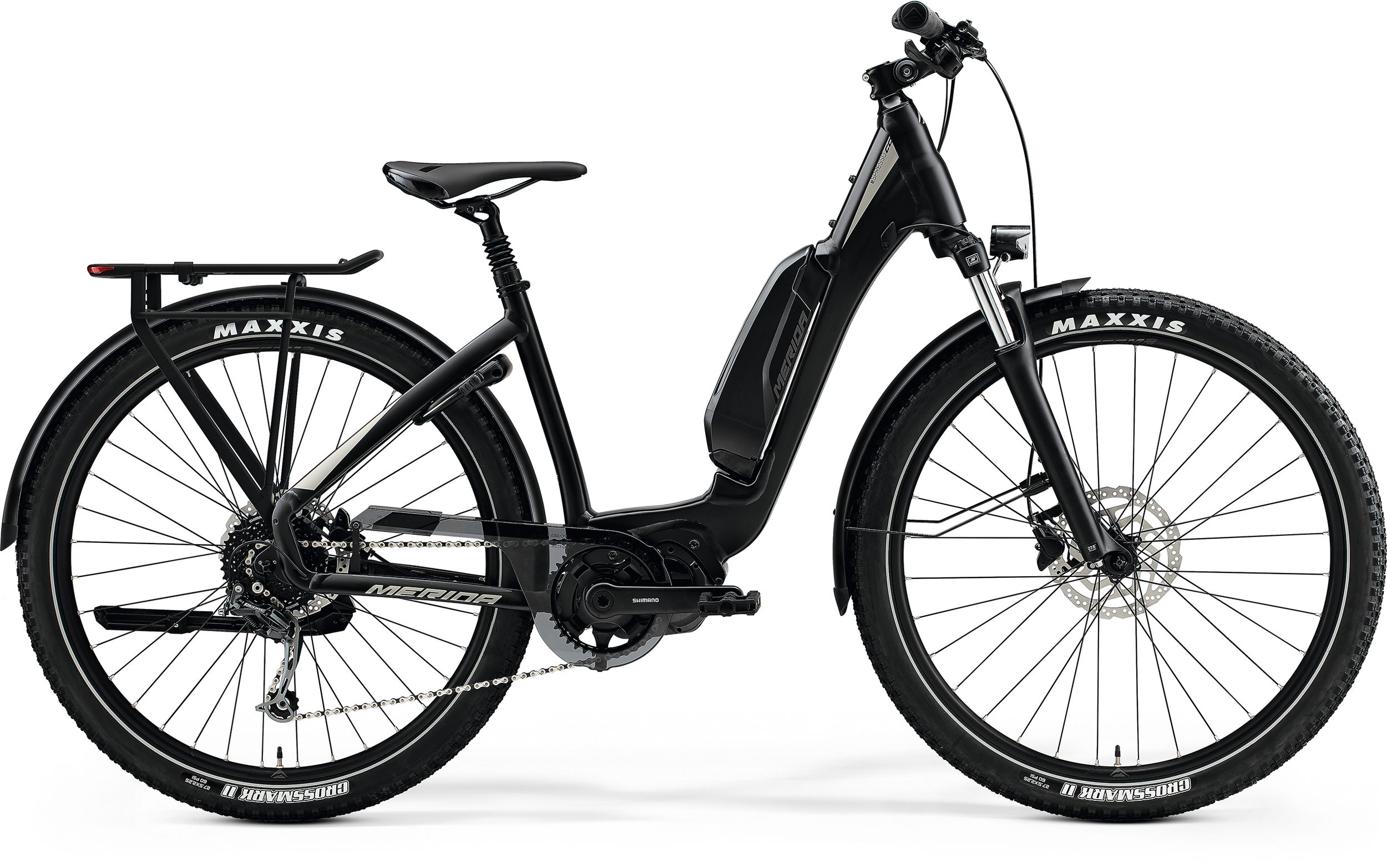

The eSPRESSO CC is available with the new 'Energy Cradle' frame, where the 745 or 630 Wh battery (depending on model) is housed on top of the downtube, and can be accessed via a removable aluminium battery cover, or as a semi-integrated frame, where the 504 Wh battery is integrated into the lower part of the downtube.
The eSPRESSO CC come fully equipped with fenders, kickstand, carrier and lights. Ready for any outing you can think of.
The decision to use 650B wheels with 2.25" off-road tread pattern for our CC models is not just a design feature but has more practical reasons. To add big volume tyres to an e-bike provides increased comfort but also extra traction and therefore more safety reserves. Small and even bigger bumps can easily be rolled over, and a big volume tyre provides more puncture protection compared to a narrow one.
Vajrar dras genom ramen för att ge snyggare look och för att hålla kablar/vajrar borta från luftflödet och skyddade mot fukt och smuts.
Den enastående ramstyvheten har stor inverkan på köregenskaperna för ramar med mycket lågt insteg. Koniskt styrrör, stor rördiameter, smitt motorfäste och genomgående bakaxel (142 x 12 mm) bidrar till säker och precis körupplevelse.
