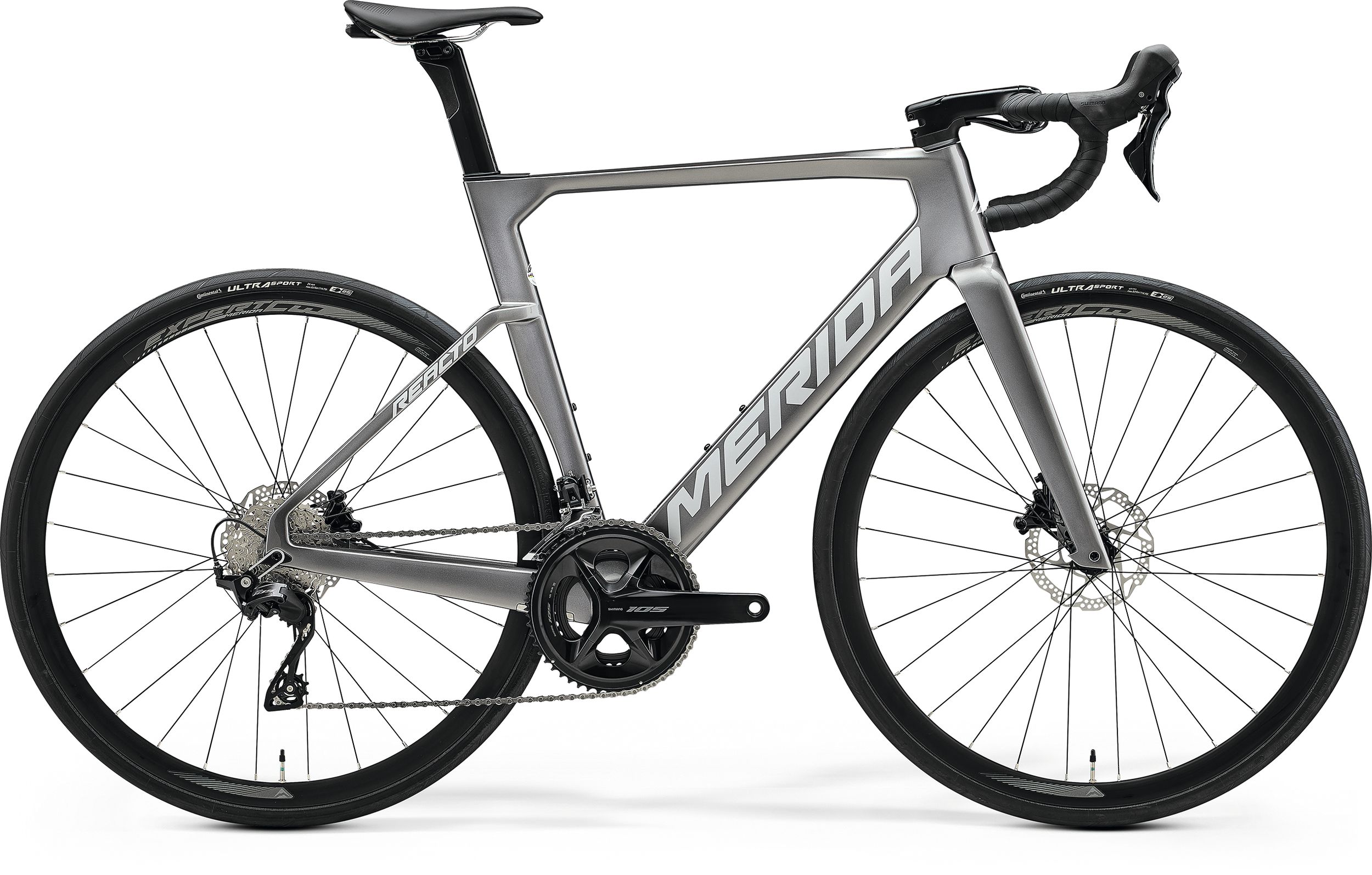

Naš REACTO 4000 je morda najbolj dostopno aero kolo v naši ponudbi, a daleč od tega, da bi bilo vstopni model. Z našim lahkim CF3 okvirjem z dokazano dirkalno geometrijo nudi 4000 izjemno udobje zaradi širokega prostora za pnevmatike (do 30 mm) in vgrajenega S-FLEX karbonske sedežne opore. Hkrati pa najnovejši super odziven mehanični 12-stopenjski Shimano 105 sklop ohranja prestavljanje in zaviranje v popolnem stanju. To je idealno aero kolo za vaše prve korake v svet dirkanja ter zahtevne vožnje v domačem klubu.
Izjemna aerodinamičnost za višje hitrosti. Zadnja različica okvirja REACTO je navdušila kolesarski novinarski svet . Dolga vrsta testnih zmag, popolnih ocen in nagrad potrjuje našo uspešno simbiozo dirkalne DNK prejšnjega modela z najnovejšimi trendi in tehnologijami. Cycling Weekly ga imenuje 'brez dvoma eno najbolj celovitih koles na trgu', Cyclingnews 'popolnoma briljantna in brezhibna naprava', Cycling Plus pa je bila 'izjemno navdušena'. Od resnega dirkača do navdušenca in ambicioznega cestnega kolesarja, REACTO je odlično kolo za mnoge. Njegove izjemne aerodinamične zmogljivosti, zmanjšana teža, ostra vodljivost in izjemno hitro pospeševanje ga delajo popolno kolo za kriterijske dirkače in sprinterje. Hkrati pa mu klasično udobje omogoča, da izkoristi svoje aerodinamične prednosti tudi na tlakovcih – ali vaših najljubših idiličnih, a luknjastih poteh trening voženj.
Lahek CF3 karbonski aero okvir (približno 1.150 g - v velikosti M) Shimano 105 12-stopenjski mehanski sklop MERIDA EXPERT SL krmilo/MERIDA EXPERT CW kombinacija krmila MERIDA S-FLEX karbonska aero sedežna opora DISC COOLER tehnologija in WIRE PORT integracija kabla Integrirana zadnja lučka v sedežni cevi
- 19mm inner width
- 30mm height
- material: aluminium
- Tubeless ready (tubeless tape and valves not included)
- material: carbon
- 700x30C max. wheelsize
- 100x12/ 142x12mm axle standard
- BB86,5 bottom bracket standard
- material: carbon
- 700x30C max. wheelsize
- Hydraulic disc
- 160mm
- Hydraulic disc
- Hydraulic disc
- 100x12mm width front hub
- 28 spoke holes
- Centerlock
- 12-142mm width rear hub
- 28 spoke holes
- Centerlock
- 52-36 teeth
- 165 mm-XXS, 170 mm-XS, 172.5 mm-S/M/L, 175 mm-XL
- 700x28C
- fold
- 700x28C
- fold
- weighed at frame size M
- Weight may vary depending on bike size, finish or possible specification changes due to supply chain issues.
- 100x12mm width front hub
- 28 spoke holes
- Centerlock
- 12-142mm width rear hub
- 28 spoke holes
- Centerlock
- 6% recycled and 23% nature material
- V-mount
- incl. MERIDA minitool
| Velikost okvirja | 3XS | XXS | XS | S | M | L | XL |
| Tire Sizes | 28" | 28" | 28" | 28" | 28" | 28" | 28" |
| St Seat Tubes Mm | 440 | 470 | 500 | 520 | 540 | 560 | 590 |
| Tt Top Tubes Mm | 505 | 520 | 536 | 545 | 560 | 575 | 590 |
| Cs Chain Stays Mm | 408 | 408 | 408 | 408 | 408 | 408 | 408 |
| Hta Head Tube Angles Deg | 70.5 | 70.5 | 72 | 72.5 | 73.5 | 73.5 | 74 |
| Sta Seat Tube Angle Deg | 75.5 | 74.5 | 74 | 74 | 73.5 | 73 | 73 |
| Bd Bottom Bracket Drops Mm | 70 | 70 | 70 | 66 | 66 | 66 | 66 |
| Ht Head Tube Lengths Mm | 100 | 105 | 112 | 128 | 140 | 155 | 176 |
| Fl Fork Lengths Mm | 385 | 385 | 385 | 385 | 385 | 385 | 385 |
| R Reachs Mm | 373 | 377 | 384 | 390 | 395 | 400 | 409 |
| S Stacks Mm | 512 | 517 | 529 | 542 | 557 | 571 | 593 |
| Wb Wheel Base Mm | 979 | 985 | 983 | 990 | 990 | 999 | 1010 |
| Sh Stand Over Height Mm | 727 | 746 | 771 | 792 | 810 | 826 | 853 |
| Number | Item Number | Name | Info | Pieces | Torque NM |
| 1 | A2029000035 | TUBE | foam; ID6mm L350mm | 1 | |
| 2 | A2029000028 | TUBE | foam; ID5mm L400mm | 1 | |
| 3 | A2054000107 | EXPANDER | for fork steerer ID 23.6mm | 1 | |
| 4 | A2191000187 | HEADSET | FSA NO.55R 1.5"/ACR/STD (TH-MR127, TH-MR168) | 1 | |
| 5 | A2029000055 | TUBE | woven; L40mm for size XXS/XS | 1 | |
| 5 | A2029000056 | TUBE | woven; L60mm for size S | 1 | |
| 5 | A2029000057 | TUBE | woven; L70mm for size M | 1 | |
| 5 | A2029000058 | TUBE | woven; L90mm for size L | 1 | |
| 5 | A2029000059 | TUBE | woven; L105mm for size XL | 1 | |
| 6 | A2164000060 | DISC COOLER | front; for FM160/FM180 | 1 | |
| 7 | A2298000265 | SCREW | M5x0.8 L16mm | 2 | 6~8 |
| 8 | A2002000103 | THRU AXLE | EXPERT SL; L=120mm M12x1.5 TL=12mm | 1 | |
| 9 | A2248000035 | CLAMP | for saddle rail; left inner part | 1 | |
| 10 | A2248000031 | CLAMP | for saddle rail; left outer part | 1 | |
| 11 | A2248000034 | CLAMP | for saddle rail; right inner part | 1 | |
| 12 | A2248000030 | CLAMP | for saddle rail; right outer part | 1 | |
| 13 | A2300000259 | SCREW | M6x1 L45mm | 2 | 10~12 |
| 14a | A2128000052 | COVER | for S-FLEX seatpost; with LED light | 1 | |
| 14b | A2029000081 | COVER | for S-FLEX seatpost, w/o light | 1 | |
| 15 | A2347000024 | COVER | for seatpost clamp | 1 | |
| 16 | A2247000084 | CLAMP | for seatpost | 1 | 5~6 |
| 17 | A2298000059 | SCREW | M5x0.8 L15mm | 4 | 3~4 |
| 18 | A2136000053 | MOUNT | for FD | 1 | |
| 19 | A2143000130 | BLIND PLUG | 1 | ||
| 20 | A2143000095 | CABLE PLUG | for Di2 | 1 | |
| 21 | A2322000034 | PROTECTOR | for chain stay | 1 | |
| 22 | A2311000104 | RD HANGER | DH-068 for ROAD-RD | 1 | |
| 23 | A2311000103 | RD HANGER | DH-067 for SHIMANO direct mount | 1 | |
| 24 | A2300000129 | SCREW | M3x0.5 L10mm | 1 | 2~4 |
| 25 | A2143000131 | BLIND PLUG | 1 | ||
| 26 | A2143000082 | CABLE PLUG | for mechanical | 1 | |
| 27 | A2143000121 | CABLE PLUG | for Di2 | 1 | |
| 28 | A2164000061 | DISC COOLER | rear; for FM140/FM160 | 1 | |
| 29 | A2002000152 | THRU AXLE | EXPERT SL; L=162.5mm M12x1.5 TL=12mm | 1 |
