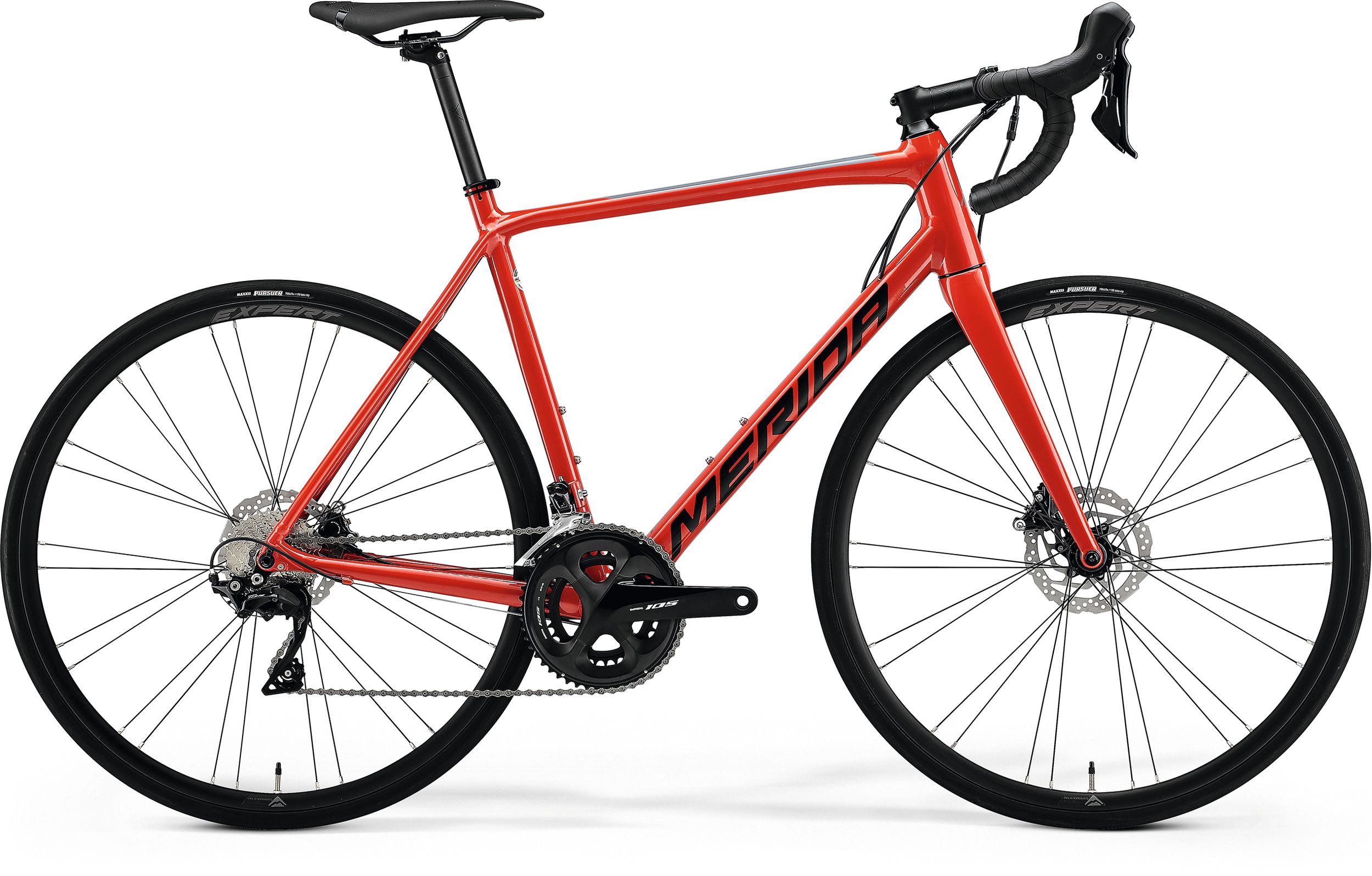

Aluminium road bike with proven and less aggressive geometry than the new carbon top-end frames for enjoyable miles on the road. Our triple butted aluminium frame comes equipped with a full carbon tapered fork for added steering precision and improved shock absorption. The reliable groupset from Shimano offers smooth and precise shifting, while the powerful hydraulic disc brakes provide perfect modulation and stopping power.
Rather than featuring the more aggressive and race-proven geometry of the CF5 and CF3 models, the CF2 and aluminium SCULTURA models retain their slightly more relaxed geometry. Within this family, we offer our bikes with powerful and easy to modulate disc brakes that deliver constant braking power even in wetter conditions or the more price aggressive rim brake alternative. Due to the less aggressive geometry, our CF2 and aluminium models are ideal for riders who are getting into the sport as well as for those who prefer a slightly more upright position when hitting the lanes.
- Lightweight 6066 triple butted aluminium frame
- Full carbon tapered fork
- Less aggressive geometry than the SCULTURA CF5 and CF3 models
- Shimano 105 11-speed groupset
- MERIDA EXPERT SL handlebar and MERIDA EXPERT CC stem
- MERIDA EXPERT CC carbon seat post
- 17mm inner width
- 22mm height
- material: aluminium
- material: aluminium
- 700x28C max. wheelsize
- 100x12/ 142x12mm axle standard
- Pressfit bottom bracket standard
- 700x28C max. wheelsize
- Hydraulic Disc
- 160mm
- Hydraulic Disc
- Hydraulic Disc
- 100x12mm width front hub
- 28 spoke holes
- Centerlock
- 142x12mm width rear hub
- 28 spoke holes
- Centerlock
- 50-34 teeth
- 165 mm-XXS, 170 mm-XS/S, 172.5 mm-SM/ML, 175 mm-L/XL
- 700x25C
- fold
- 700x25C
- fold
- 100x12mm width front hub
- 28 spoke holes
- Centerlock
- 142x12mm width rear hub
- 28 spoke holes
- Centerlock
- V-mount
Velikost okvirja | S | S/M | M/L | L | XL |
Tire Sizes | 28" | 28" | 28" | 28" | 28" |
St Seat Tubes Mm | 500 | 520 | 540 | 560 | 590 |
Tt Top Tubes Mm | 530 | 545 | 560 | 575 | 590 |
Cs Chain Stays Mm | 408 | 408 | 408 | 408 | 408 |
Hta Head Tube Angles Deg | 72 | 73 | 73 | 73 | 73.5 |
Sta Seat Tube Angle Deg | 74 | 74 | 73.5 | 73 | 73 |
Bd Bottom Bracket Drops Mm | 66 | 66 | 66 | 66 | 66 |
Ht Head Tube Lengths Mm | 140 | 150 | 170 | 190 | 215 |
Fl Fork Lengths Mm | 374 | 374 | 374 | 374 | 374 |
R Reachs Mm | 375 | 386 | 390 | 394 | 401 |
S Stacks Mm | 542 | 555 | 574 | 593 | 619 |
Wb Wheel Base Mm | 979 | 985 | 995 | 1005 | 1014 |
Sh Stand Over Height Mm | 744 | 762 | 779 | 798 | 826 |
