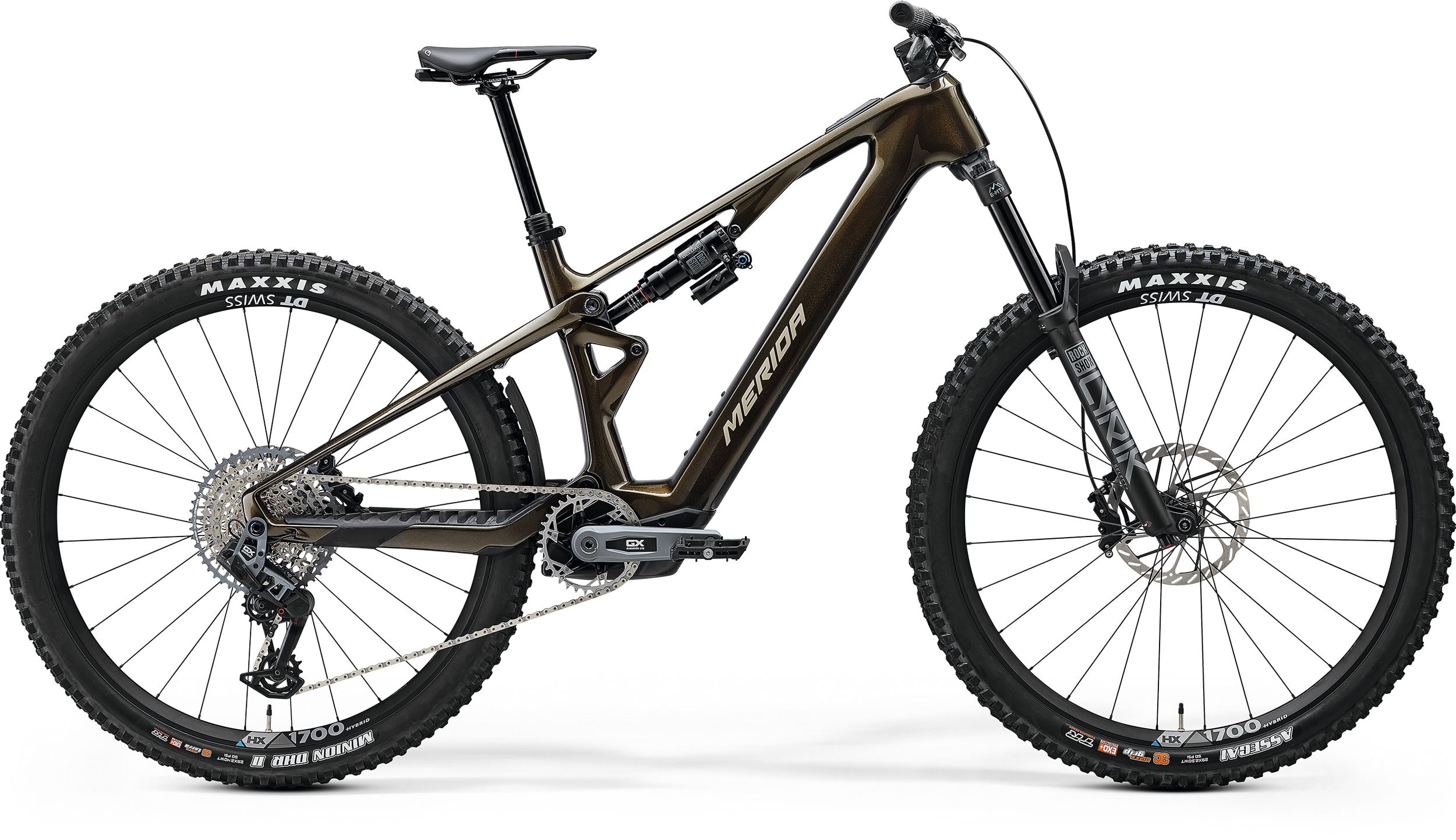

Do you like to attack the climbs and combine your active eMTB riding style with the seamless support of a powerful mid-support drivetrain? Then the feature-packed eONE-SIXTY 8000 could be the perfect bike for you. Lightweight CF4 level full carbon fibre frame with 160 mm of front and rear travel, AGILOMETER inspired sizing system, progressive enduro geometry, proven Bosch Performance Line SX drivetrain and lightweight yet enduro-tough components deliver on every trail while maximising the fun factor.
The eONE-SIXTY SL represents a new breed of e-mountain bike, combining the poise of an unassisted bike with the power of a Bosch SX drive unit to help you ride further and faster. With a lightweight full carbon frame, 160 mm of well-balanced travel and a build that blends hard-hitting performance with low weight, it blurs the line between conventional and assisted riding. The eONE-SIXTY SL combines ‘human-powered’ bike handling and enduro tough but lightweight equipment with the latest compact Bosch Performance Line SX motor with 55 Nm, and a fully integrated 400 Wh battery plus an optional 250 Wh range extender for an experience that blurs the line between normal and e-bike. If you are the type of rider who likes to pedal hard and use the assistance for maximum fun on the trail, then the eONE-SIXTY SL should be your next trail and enduro companion.
- Lightweight full carbon fibre CF4 frame with 160 mm rear wheel travel
- SRAM GX Eagle Transmission 12-speed wireless drivetrain, DT Swiss HX 1700 tubeless ready wheelset
- RockShox Lyrik Select+ eMTB fork with 160 mm travel and Super Deluxe Select+ rear shock
- Bosch Performance Line SX drive unit with integrated 400 Wh battery with optional 250 Wh range extender
- Fast-rolling 29er wheel size as standard, with the option to run a mixed-size setup
- Reach-based AGILOMETER-inspired sizing system with long travel dropper post
- material: carbon
- 160mm suspension travel
- 29x2,4" max. wheelsize
- 148x12mm axle standard
- fixed battery
- 4 piston
- 4 piston
- 29x2.4 "
- fold
- TR EXO+ 3C MaxxTerra
- 29x2.5 "
- fold
- TR EXO+ 3C MaxxGrip
- 4 piston
- 29x2.5 "
- fold
- TR EXO+ 3C MaxxGrip
- 29x2.4 "
- fold
- TR EXO+ 3C MaxxTerra
- Air
- 160mm suspension travel: Tapered
- 44mm fork offset
- 29x2.6" max wheelsize
- 34.9mm diameter
- 0mm setback
- XSHORT: 150mm travel seatpost - SHORT/MID: 170mm travel seatpost - LONG/XLONG: 200mm travel seatpost
- weighed at frame size M
- Weight may vary depending on bike size, finish or possible specification changes due to supply chain issues.
- integrated
- 110x15mm width front hub
- 148x12mm width rear hub
- 30mm inner width
- 6-Bolt
- SRAM XD
- material: aluminium
- Tubeless ready (tubeless tape and valves included)
- 10-52
- 12 speed
- 165 mm for all sizes
- V-mount adapter
- incl. MERIDA minitool
| Frame Size | XShort | Short | Mid | Long | XLong |
| Tire Sizes | 29" | 29" | 29" | 29" | 29" |
| St Seat Tubes Mm | 400 | 410 | 425 | 445 | 465 |
| Tt Top Tubes Mm | 543 | 567 | 591 | 616 | 640 |
| Cs Chain Stays Mm | 450 | 450 | 450 | 450 | 450 |
| Hta Head Tube Angles Deg | 64 | 64 | 64 | 64 | 64 |
| Sta Seat Tube Angle Deg | 78.5 | 78.5 | 78.5 | 78.5 | 78.5 |
| Bd Bottom Bracket Drops Mm | 27.5 | 27.5 | 27.5 | 27.5 | 27.5 |
| Ht Head Tube Lengths Mm | 100 | 105 | 110 | 115 | 120 |
| Fl Fork Lengths Mm | 571 | 571 | 571 | 571 | 571 |
| R Reachs Mm | 420 | 443 | 466 | 489 | 512 |
| S Stacks Mm | 611 | 616 | 620 | 625 | 629 |
| Wb Wheel Base Mm | 1202 | 1228 | 1253 | 1278 | 1303 |
| Str Stack To Reach Ratio Pc | 1.45 | 1.39 | 1.33 | 1.28 | 1.23 |
