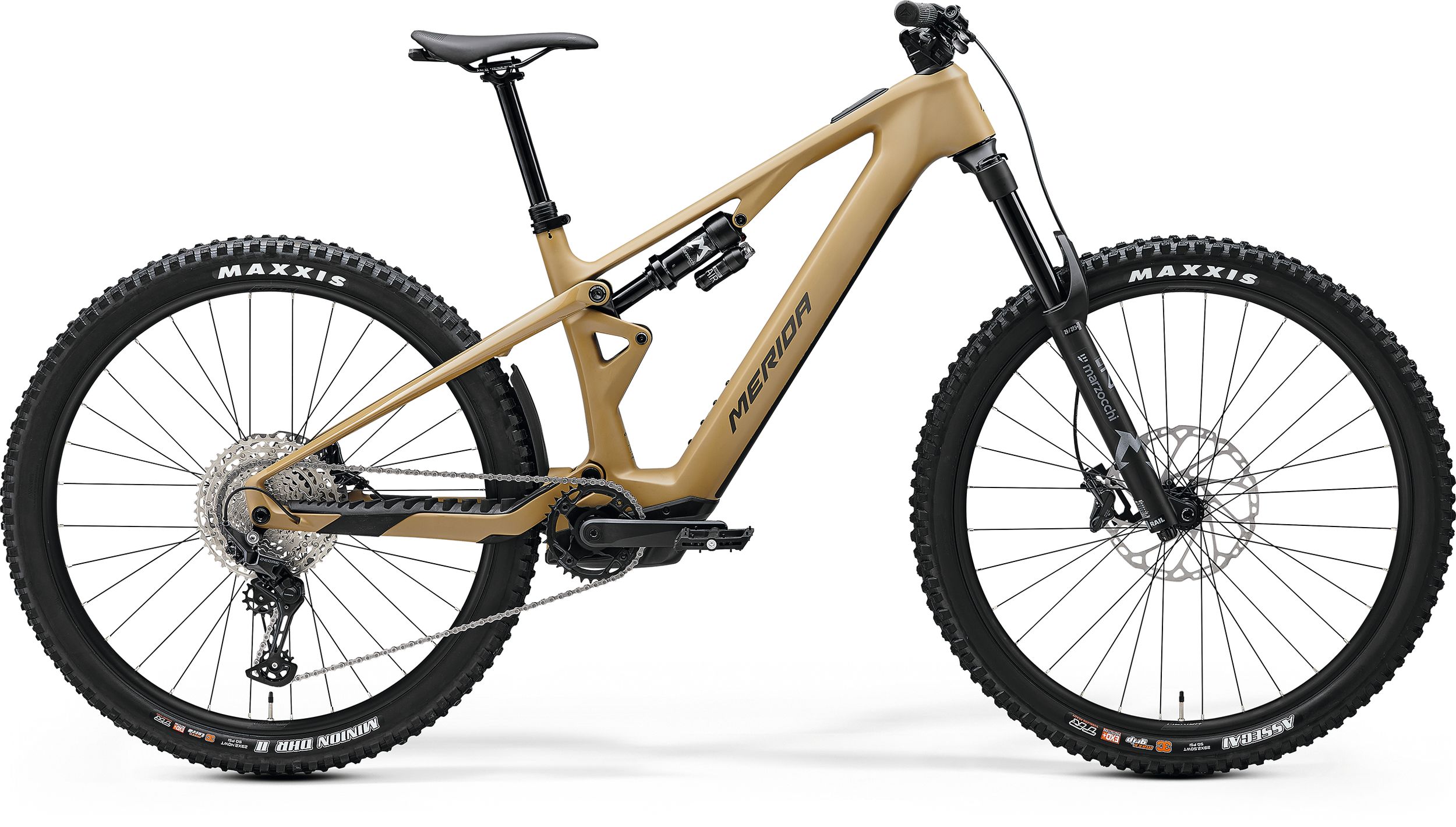

Our trail and enduro-ready perfect blend of price and performance. The eONE-SIXTY 6000 combines our latest 160 mm full carbon e-enduro frame with the compact and lightweight Bosch Performance Line SX drivetrain to create one of the most agile and fun-to-ride e-enduros in our range. With almost 'human-powered' handling and a powerful 55 Nm of assistance to kick in when needed, the eONE-SIXTY 6000 is the ideal machine for trail and enduro riders looking for maximum trail fun while enjoying an active riding style.
The eONE-SIXTY SL represents a new breed of e-mountain bike, combining the poise of an unassisted bike with the power of a Bosch SX drive unit to help you ride further and faster. With a lightweight full carbon frame, 160 mm of well-balanced travel and a build that blends hard-hitting performance with low weight, it blurs the line between conventional and assisted riding. The eONE-SIXTY SL combines ‘human-powered’ bike handling and enduro tough but lightweight equipment with the latest compact Bosch Performance Line SX motor with 55 Nm, and a fully integrated 400 Wh battery plus an optional 250 Wh range extender for an experience that blurs the line between normal and e-bike. If you are the type of rider who likes to pedal hard and use the assistance for maximum fun on the trail, then the eONE-SIXTY SL should be your next trail and enduro companion.
- Lightweight full carbon fibre CF4 frame with 160 mm rear wheel travel
- Shimano Deore 12-speed drivetrain and 4-piston Shimano disc brakes
- Marzocchi Z1 eMTB fork with 160 mm travel and Marzocchi Bomber Air rear shock
- Bosch Performance Line SX drive unit with integrated 400 Wh battery with optional 250 Wh range extender
- Fast-rolling 29er wheel size as standard, with the option to run a mixed-size setup
- Reach-based AGILOMETER-inspired sizing system with long travel dropper post
- Platform
- material: carbon
- 160mm suspension travel
- 29x2,4" max. wheelsize
- 148x12mm axle standard
- fixed battery
- 4 piston
- 29x2.4 "
- fold
- TR EXO+ 3C MaxxTerra
- 29x2.5 "
- fold
- TR EXO+ 3C MaxxGrip
- 15x100mm width front hub
- 32 spoke holes
- Centerlock
- 12x148mm width rear hub
- 32 spoke holes
- Centerlock
- 4 piston
- 15x100mm width front hub
- 32 spoke holes
- Centerlock
- 12x148mm width rear hub
- 32 spoke holes
- Centerlock
- 29x2.5 "
- fold
- TR EXO+ 3C MaxxGrip
- 29x2.4 "
- fold
- TR EXO+ 3C MaxxTerra
- Air
- 160mm suspension travel
- Tapered
- 44mm fork offset
- 29x2.6" max wheelsize
- 34.9mm diameter
- 0mm setback
- XSHORT: 150mm travel seatpost - SHORT/MID: 170mm travel seatpost - LONG/XLONG: 200mm travel seatpost
- 110x15mm width front hub
- 148x12mm width rear hub
- 28mm inner width
- material: aluminium
- Tubeless ready (tubeless tape and valves not included)
- front 29"
- rear 29"
- weighed at frame size M
- Weight may vary depending on bike size, finish or possible specification changes due to supply chain issues.
- integrated
- 10-51 teeth
- 12 speed
- 165mm for all sizes
- 28% recycled material
- V-mount
- incl. MERIDA minitool
Frame Size | XShort | Short | Mid | Long | XLong |
Tire Sizes | 29" | 29" | 29" | 29" | 29" |
St Seat Tubes Mm | 400 | 410 | 425 | 445 | 465 |
Tt Top Tubes Mm | 543 | 567 | 591 | 616 | 640 |
Cs Chain Stays Mm | 450 | 450 | 450 | 450 | 450 |
Hta Head Tube Angles Deg | 64 | 64 | 64 | 64 | 64 |
Sta Seat Tube Angle Deg | 78.5 | 78.5 | 78.5 | 78.5 | 78.5 |
Bd Bottom Bracket Drops Mm | 27.5 | 27.5 | 27.5 | 27.5 | 27.5 |
Ht Head Tube Lengths Mm | 100 | 105 | 110 | 115 | 120 |
Fl Fork Lengths Mm | 571 | 571 | 571 | 571 | 571 |
R Reachs Mm | 420 | 443 | 466 | 489 | 512 |
S Stacks Mm | 611 | 616 | 620 | 625 | 629 |
Wb Wheel Base Mm | 1202 | 1228 | 1253 | 1278 | 1303 |
Str Stack To Reach Ratio Pc | 1.45 | 1.39 | 1.33 | 1.28 | 1.23 |
