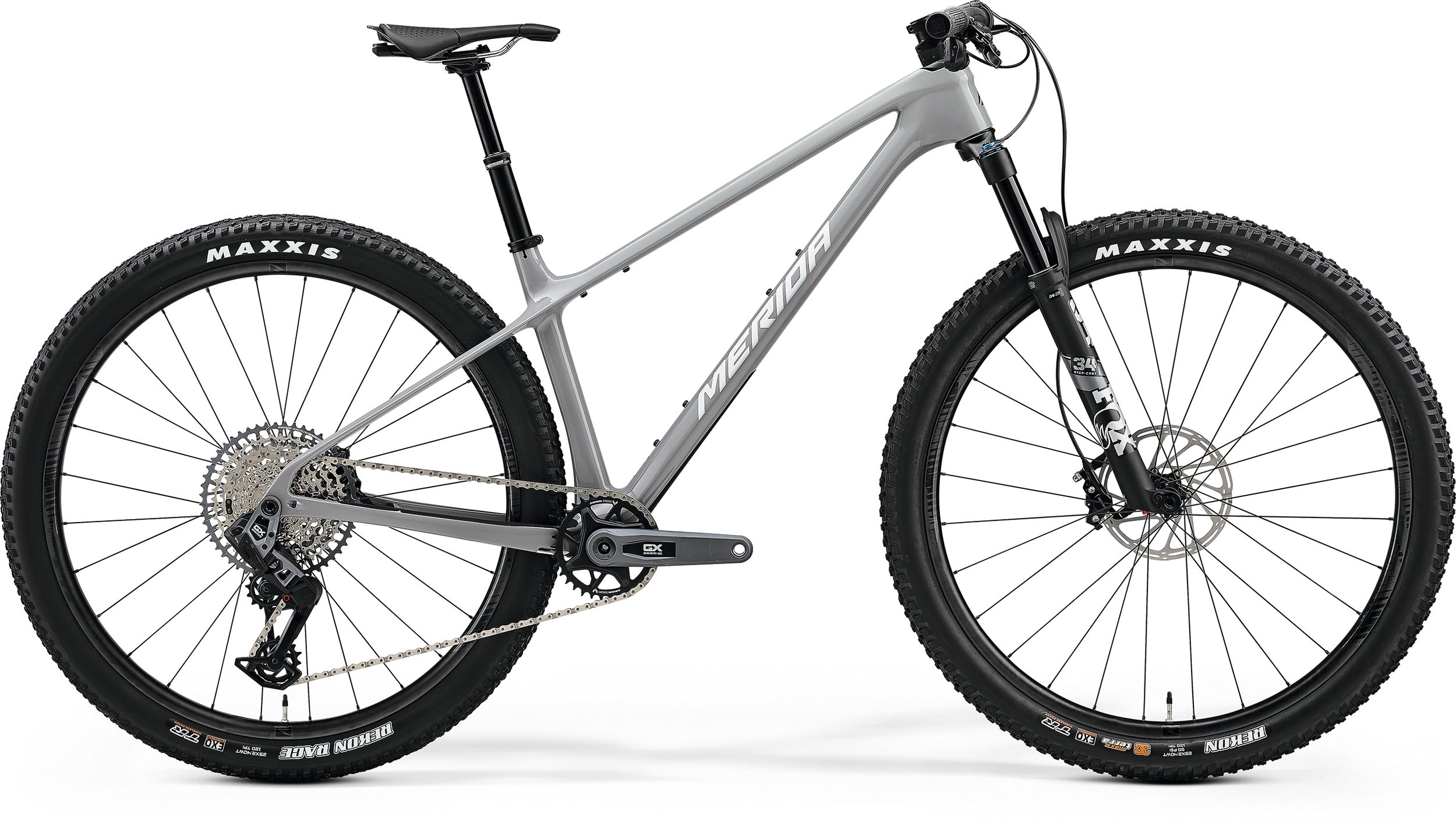

Cross-country speed, trail bike performance. The latest BIG.NINE TR 8000 boosts the descending capability of our latest progressive geometry carbon fibre frame by adding a longer travel 120 mm fork, more aggressive tyres and a dropper seatpost for improved control. Fox's 34 SC fork delivers control and precision while the wireless SRAM GX T-Type drivetrain and lightweight Reynold carbon wheelset offer blisteringly fast pace, uphill or down. Cross-country, downcountry - this bike is ready for it all.
Mountain biking is one of the most varied cycling disciplines and probably the most demanding when it comes to equipment. While full suspension bikes offer amazing riding characteristics, the classic hardtail remains one of the purest tools for the job. Our 29er wheel equipped BIG.NINE range comes in carbon and aluminium and features multiple geometry options. The updated CF carbon and LITE aluminium framed BIG.NINE offer truly modern geometry with increased standover clearance and handling stability to better deal with the tough race tracks of today, with downcountry ready TR options that boost fork travel and add in aggressive tyres and dropper posts. The more relaxed geometry of the BIG.NINE TFS and SPEED offers a more comfortable, upright riding position. Our classic hardtails are the backbone of our range and showcase the enormous wealth of experience and knowledge we could gain in over half a century of bike production and manufacturing. The BIG.NINE range represents the symbiosis between modern frame technology, attention to detail and craftsmanship 'Made in Taiwan' symbolises.
- Lightweight CF3 carbon fibre frame with 2.4" tyre clearance
- Progressive geometry with AGILOMETER sizing for confident handling
- Fox 34 SC fork with 120 mm travel for improved descending ability
- Wireless SRAM GX T-type 12-speed drivetrain
- Lightweight carbon Reynolds wheelset and trail-ready tyres
- Lightweight MERIDA dropper seatpost with remote lever
- material: carbon
- 29x2.4" max. wheelsize
- 148x12 mm axle standard
- BSA bottom bracket standard
- Air
- 120 mm suspension travel
- 2 position remote lockout
- 29x2.4" max. wheelsize
- 44 mm fork offset
- wireless
- T-Type
- 34 teeth
- 170 mm-S, 175 mm-M up
- 10-52 teeth
- 12 speed
- Upper and lower IPS sealing
- V-mount adapter
- incl. MERIDA minitool
- 30.9 mm diameter
- 0 mm setback
- S/M/L/XL/XXL: 100 mm travel seatpost
- 29x2.4" WT
- tubeless ready
- 3C EXO
- 29x2.4" WT
- tubeless ready
- 3C MaxxTerra EXO
- 110x15 mm width front hub
- 148x12 mm width rear hub
- 30/28 mm inner width
- Centerlock
- Sram 12 Speed
- material: carbon
- Tubeless ready (tubeless tape and valves included)
- Lifetime warranty
- weighed at frame size M
- Weight may vary depending on bike size, finish or possible specification changes due to supply chain issues.
Frame Size | S | M | L | XL | XXL |
Tire Sizes | 29" | 29" | 29" | 29" | 29" |
St Seat Tubes Mm | 380 | 410 | 440 | 470 | 500 |
Tt Top Tubes Mm | 594 | 614 | 637 | 659 | 681 |
Cs Chain Stays Mm | 430 | 433 | 436 | 439 | 442 |
Hta Head Tube Angles Deg | 66.9 | 66.9 | 66.9 | 66.9 | 66.9 |
Sta Seat Tube Angle Deg | 74.2 | 74.2 | 74.2 | 74.2 | 74.2 |
Bd Bottom Bracket Drops Mm | 57 | 57 | 57 | 57 | 57 |
Ht Head Tube Lengths Mm | 95 | 95 | 105 | 115 | 125 |
Fl Fork Lengths Mm | 530 | 530 | 530 | 530 | 530 |
R Reachs Mm | 420 | 440 | 460 | 480 | 500 |
S Stacks Mm | 614 | 614 | 624 | 633 | 643 |
Wb Wheel Base Mm | 1132 | 1155 | 1182 | 1209 | 1235 |
Sh Stand Over Height Mm | 711 | 711 | 717 | 738 | 759 |
