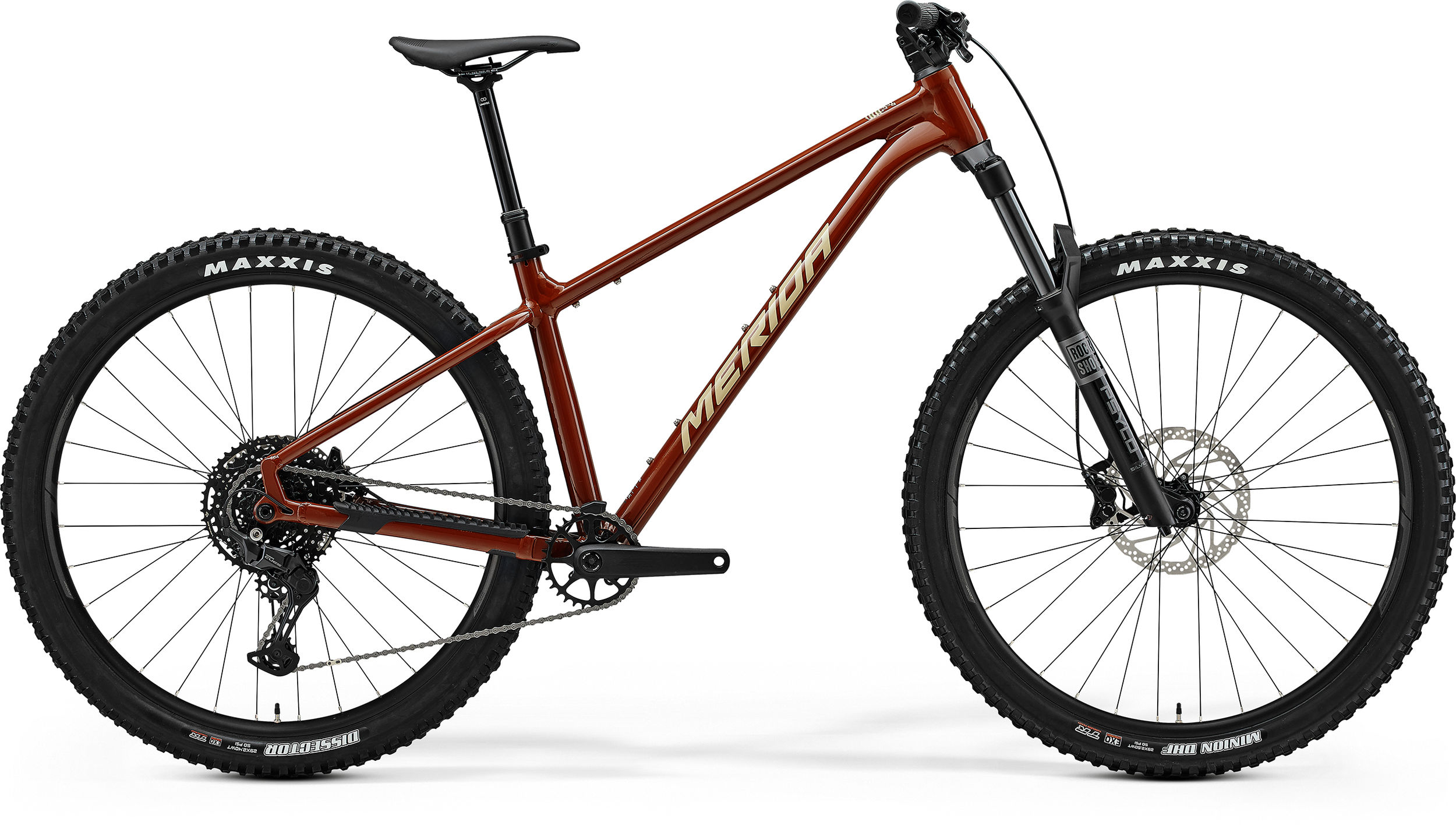

A passion for trail fun, all wrapped up in a no-nonsense package. The BIG.TRAIL 500 offers handling that at inspires confidence and pushes you to go that little bit further in your search for true trail connection. Our top-quality aluminium frame is paired with tough, trail-ready 29er tyres, a 140 mm travel fork and a long travel dropper post to add confidence and capability to any ride.
The BIG.TRAIL is back and better than ever! Hailed by the international mountain bike press as one of the best trail hardtails around, we've tweaked it so it goes up, down and along even faster - which obviously means more fun. With updated, progressive geometry, the new BIG.TRAIL builds on an incredibly successful heritage, with a slack head angle and extended reach helping tame the gnarliest trails and a steeper seat angle that makes climbing up to do it again a breeze. We've also given it a slicker and tricker look and improved the frame protection too, so it'll stay looking good for longer. Join the BIG.TRAIL family and enjoy hassle-free trail fun in spades. Available from XSmall to XLarge, perfect for finding your preferred size and reach options.
- Durable double butted aluminium frame
- 140 mm RockShox Psylo fork with 35 mm chassis for incredible stiffness
- Progressive trail bike geometry with long reach, slack head angle and steep seat angle
- 29er wheels specced with 2.5" front and 2.4" rear tyre with aggressive trail pattern
- Extremely low standover height paired with long travel dropper posts
- Powerful 4-piston Shimano front brake paired with lightweight 2-piston brake
- material: aluminium
- 29x2.4" max. wheelsize
- 148x12mm axle standard
- BSA bottom bracket standard
- Color: glossy mokka TA-3096
- Air
- 140mm suspension travel
- platform
- 4 piston
- 2 piston
- 32 teeth
- 165mm XSHORT and SHORT
- 11-48 teeth
- 10 speed
- Upper and lower IPS sealing
- 25% recycled material
- V-mount
- 34.9mm diameter
- 0mm setback
- XSHORT: 150mm travel seatpost - SHORT : 170mm travel seatpost - MID/LONG: 200mm travel seatpost - XLONG: 230mm travel seatpost
- 29mm inner width
- material: aluminium
- Tubeless ready (tubeless tape and valves not included)
- 29x2.5"
- fold
- TR EXO Dual
- 29x2.4"
- fold
- TR EXO Dual
- 110x15mm width front hub
- 32 spoke holes
- Centerlock
- 148x12mm width rear hub
- 32 spoke holes
- Centerlock
- weighed at frame size M
- Weight may vary depending on bike size, finish or possible specification changes due to supply chain issues.
| Frame Size | Short | Mid | Long | XLong |
| Tire Sizes | 29" | 29" | 29" | 29" |
| St Seat Tubes Mm | 400 | 420 | 445 | 475 |
| Tt Top Tubes Mm | 581 | 603 | 630 | 657 |
| Cs Chain Stays Mm | 435 | 435 | 435 | 435 |
| Hta Head Tube Angles Deg | 64 | 64 | 64 | 64 |
| Sta Seat Tube Angle Deg | 76.5 | 76.5 | 76.5 | 76.5 |
| Bd Bottom Bracket Drops Mm | 70 | 70 | 70 | 70 |
| Ht Head Tube Lengths Mm | 100 | 110 | 120 | 130 |
| Fl Fork Lengths Mm | 551 | 551 | 551 | 551 |
| R Reachs Mm | 435 | 455 | 480 | 505 |
| S Stacks Mm | 636 | 645 | 654 | 663 |
| Wb Wheel Base Mm | 1189 | 1214 | 1243 | 1272 |
| Sh Stand Over Height Mm | 721 | 724 | 726 | 729 |
| Str Stack To Reach Ratio Pc | 1.46 | 1.42 | 1.36 | 1.31 |
| Seat Post Mounting Depth Max Mm | 315 | 335 | 360 | 390 |
