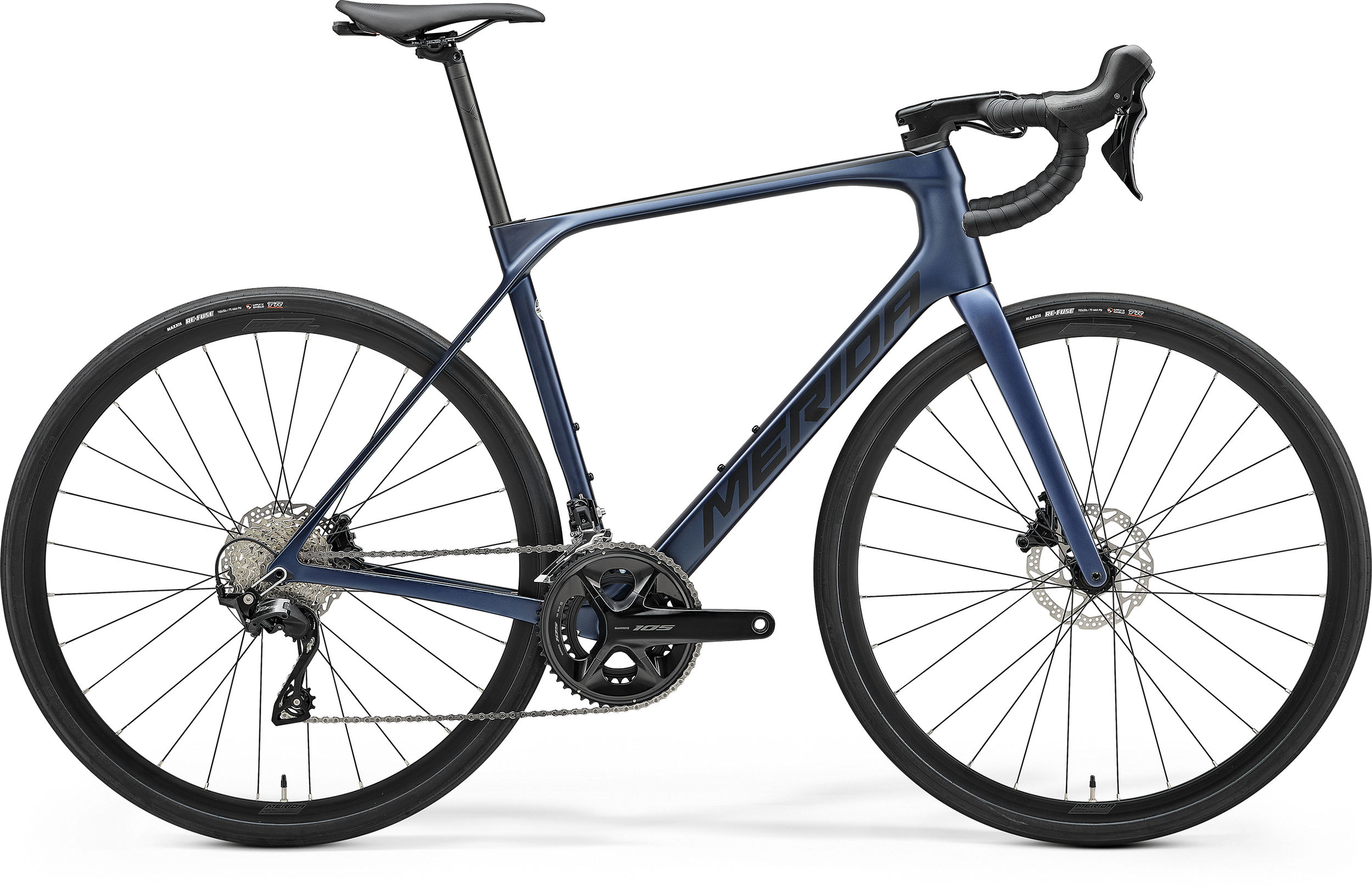

SCULTURA ENDURANCE 4000，絕非僅是傳統的入門級碳纖維公路車。擁有測試得獎冠軍的CF3碳纖維車架，配備最新的Shimano 105 12速變速套件，提供精準的換檔和強悍的制動。經過實戰驗證的WIRE PORT管線整合系統，保持駕駛艙減絕俐落，使整車外觀更加流暢美觀。
SCULTURA ENDURANCE，以舒適騎乘為主要考量，讓您日行百里，環島也能又快又舒服！加高的頭管，提升性能的騎乘幾何舒適性典範；可容納寬車胎，在任何道路上，為您分憂解勞。RennRad、Gran Fondo、Cyclingnews、Cyclingtips、road.cc等國際單車媒體，讚不絕口，口碑載道！SCULTURA ENDURANCE的定位，正好介於競賽型SCULTURA與野外好手SILEX之間，頭管管線整合設計，隱藏式座桿鎖固設計，空氣動力效益兼具，後三角獨特避震效能，優異的驅動性能，這是騎士長程旅途上的最佳伴侶，特別適合喜歡四處遨遊的自由騎士，不受天侯限制。SCULTURA ENDURANCE GR系列，則更偏向於Gravel競賽，配備了越野車胎與外擴形的把手。
- 輕量CF3碳纖維車體，極舒適的騎乘幾何設定；優異的操駕性能
- Shimano 105 12s 變速系統
- MERIDA EXPERT SL II龍頭\ MERIDA EXPERT SL 把手
- MERIDA碳纖維座管
- Maxxis Re-Fuse 32mm車胎
- 座墊下方空間機能整合MERIDA多功能工具"
獎項&媒體推薦
又見五顆星測評滿分! 舒適型跑車SCULTURA EN. 4000
- material: carbon
- 700x35C max./ 700x32C (with fender) max. wheelsize
- 100x12/ 142x12mm axle standard
- BB86 bottom bracket standard
車架尺寸 XXS, XS, S, M, L, XL
車色 SILK DARK SILVER (BLACK)
- material: carbon
- 700x35C max. wheelsize
- Hydraulic disc
- Hydraulic disc
- 160mm
- 160mm
剎車握把 Shimano 105
- VP-MRBHB (SE-301 neck)
握把(帶) MERIDA ROAD Expert
前變速器 Shimano 105
變速控制桿-前 Shimano 105 disc
變速控制桿-後 Shimano 105 disc
- 27.2mm diameter
- 15mm setback
- Carbon
座管束 MERIDA EXPERT
- 28% recycled material
- V-mount
- incl. MERIDA minitool
鏈條 Shimano M6100-12
- 50-34 teeth
- 165 mm-XXS, 170 mm-XS, 172.5 mm-S/M/L, 175 mm-XL
- 11-34 teeth
- 12 speed
- Pressfit 86.5
- 23mm inner width
- 25mm height
- material: aluminium
- Tubeless ready (tubeless tape and valves not included)
- 700x32C
- fold
- 700x32C
- fold
- 100x12mm width front hub
- 28 spoke holes
- Centerlock
- 12-142mm width rear hub
- 28 spoke holes
- Centerlock
前快拆 MERIDA EXPERT TR
- including removable lever
- 6/4mm allen key
輻條 Double Butted Black stainless
- weighed at frame size M
- Weight may vary depending on bike size, finish or possible specification changes due to supply chain issues.
| 車架尺寸 | XXS | XS | S | M | L | XL |
| 車胎尺寸 | 28" | 28" | 28" | 28" | 28" | 28" |
| ST 立管 (mm) | 440 | 470 | 490 | 510 | 530 | 560 |
| TT 上管 (mm) | 515 | 524 | 538 | 553 | 568 | 583 |
| CS 後下叉 (mm) | 418 | 418 | 418 | 418 | 418 | 418 |
| HTA 頭管角度(°) | 70.5 | 71 | 72 | 73 | 73 | 73.5 |
| STA 立管角度(°) | 74 | 74 | 74 | 73.5 | 73.5 | 73.5 |
| BD 五通下沉量 (mm) | 66 | 66 | 66 | 66 | 66 | 66 |
| HT 頭管高度 (mm) | 140 | 152 | 161 | 177 | 197 | 222 |
| FL 前叉長度 (mm) | 380 | 380 | 380 | 380 | 380 | 380 |
| R REACHS (mm) | 360 | 366 | 376 | 380 | 389 | 397 |
| S STACKS (mm) | 539 | 552 | 565 | 584 | 603 | 629 |
| WB 輪距 (mm) | 992 | 997 | 1001 | 1001 | 1017 | 1026 |
| SH 跨高 (mm) | 742 | 767 | 785 | 803 | 823 | 852 |
