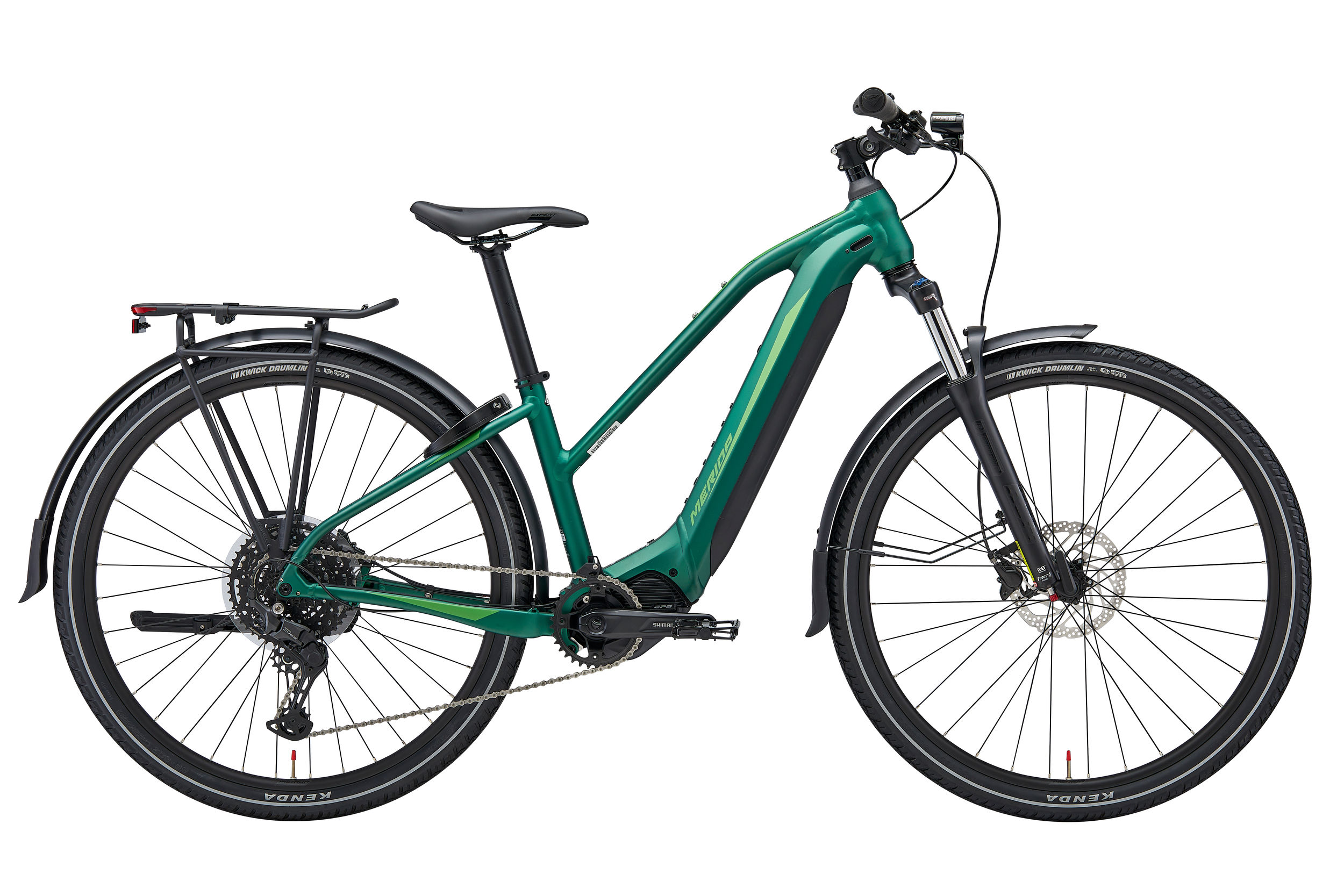

Joining together urban practicality with the willingness to explore is no easy feat, but the eBIG.TOUR 475 EQ does just that, with the new Shimano EP6 drive unit giving you smooth yet powerful assistance whenever you need it. Large volume tyres, a suspension fork and mountain bike inspired geometry deliver capable and confident handling whenever you want an adventure, but the low-step-through frame design with integrated 750 Wh battery and generous standard fit equipment including mudguards and lighting have your everyday needs covered, so there's no need to compromise.
Are practicality and excitement mutually exclusive? We don't think so - and neither does the eBIG.TOUR. It's a reliable day-to-day companion for riding to work that's equally happy taking you on big adventures off the beaten track, thanks to a winning combination of mountain bike inspired geometry with low step-through frame practicality. A powerful and smooth Shimano pedal-assist motor is integrated cleanly into the aluminium frame, while a suspension fork and high-volume tyres provide comfort and safety. Add in standard fit mudguards, racks, lighting, wheel lock and a kickstand plus long-lasting 630 or 750 Wh batteries and you'll realise you've got the best of all worlds.
- Lightweight aluminium frame with integrated 750 Wh battery and low step-through frame design
- New, powerful Shimano EP6 drive unit with 85 Nm torque
- SR Suntour suspension fork for improved comfort and control
- Standard fit mudguards, rack, lights, wheel lock and kickstand
- 29er wheels with high volume tyres can handle city or countryside terrain
- Smooth Shimano drivetrain and powerful disc brakes
- material: aluminium
- 29x2.35" without fender max. / 29x2.25" with fender max. wheelsize
- 148x12 mm axle standard
- intube
- 100 mm
- Tapered
- 51 mm fork offset
- 29x2.4" max. wheelsize
- 2 piston
- 2 piston
- 180 mm
- 180 mm
- material: aluminium
- 34.9 mm diameter
- 0 mm setback
- V-mount
- 34 teeth
- 165 mm
- 11-48 teeth
- 10 speed
- 25 mm inner width
- material: aluminium
Kenda Kwick Drumlin
- 700x50c
- wire
- 110x15 mm width front hub
- 32 spoke holes
- Centerlock
- 148x12 mm width rear hub
- 32 spoke holes
- Centerlock
- including removeable lever, 6/4 mm allen key
- 85Nm
- weighed at frame size M
- Weight may vary depending on bike size, finish or possible specification changes due to supply chain issues.
| 車架尺寸 | S | M | L | XL |
| 車胎尺寸 | 29" | 29" | 29" | 29" |
| ST 立管 (mm) | 380 | 430 | 480 | 530 |
| TT 上管 (mm) | 588 | 605 | 625 | 645 |
| CS 後下叉 (mm) | 465 | 465 | 465 | 465 |
| HTA 頭管角度(°) | 67.5 | 67.5 | 67.5 | 67.5 |
| STA 立管角度(°) | 74.5 | 74.5 | 74.5 | 74.5 |
| BD 五通下沉量 (mm) | 62.5 | 62.5 | 62.5 | 62.5 |
| HT 頭管高度 (mm) | 115 | 120 | 130 | 140 |
| FL 前叉長度 (mm) | 527 | 527 | 527 | 527 |
| R REACHS (mm) | 411 | 427 | 445 | 462 |
| S STACKS (mm) | 636 | 640 | 650 | 659 |
| WB 輪距 (mm) | 1165 | 1183 | 1204 | 1225 |
| SH 跨高 (mm) | 630 | 653 | 665 | 677 |
