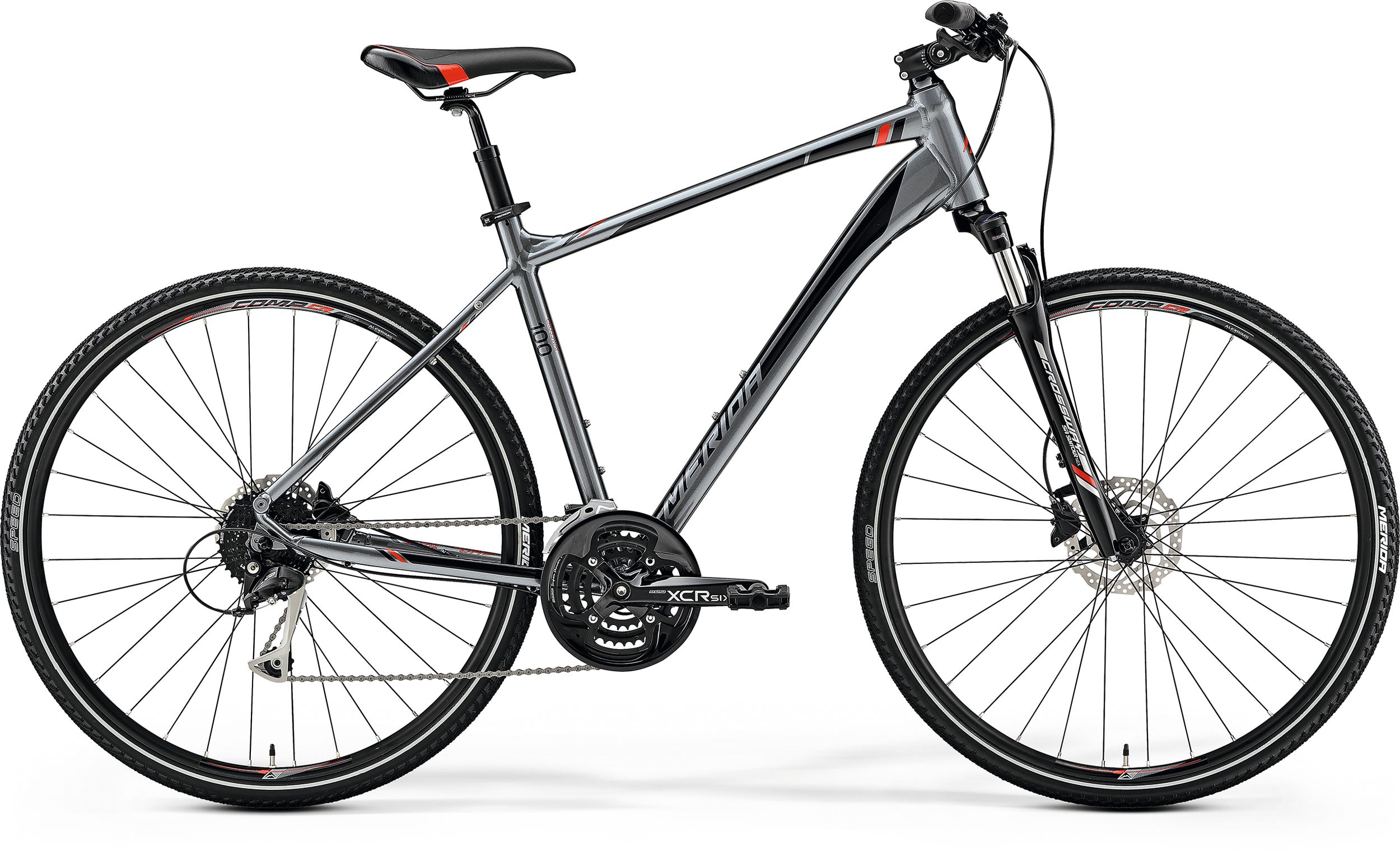

車架 CROSSWAY TFS
車架尺寸 XXS, XS, S, M, L, XL
車色 波灰銀 (紅黑色塊點綴)
- Coil
- 63mm suspension travel
- Lockout
前剎車 Shimano MT-200
後剎車 Shimano MT-200
- 160mm
- 160mm
剎車握把 Shimano MT-200
車頭碗 MERIDA M2346 Neck
握把(帶) MERIDA Crossway Ergo
前變速器 Shimano M370
後變速器 Shimano Alivio
變速控制桿-前 Shimano Altus
變速控制桿-後 Shimano Altus
- 30.9mm diameter
- 20mm setback
座管束 MERIDA Comp QR
座墊 MERIDA Cross Sport
- VPE-891
鏈條 KMC M99
鏈條護罩 attached
- 48-36-26 teeth
- 11-34 teeth
- 9 speed
B.B. 五通 FSA TH-7420ST Cartridge Bearing
- 20mm inner width
- 700x40C
- wire bead
- reflective stripe
- 700x40C
- wire bead
- reflective stripe
- 100x9mm width front hub
- 32 spoke holes
- Centerlock
- 135x9mm width rear hub
- 32 spoke holes
- Centerlock
輻條 Black stainless
weighed at frame size M (w/o pedals)
| 車架尺寸 | XXS | XS | S | M | L | XL |
| 車胎尺寸 | 28" | 28" | 28" | 28" | 28" | 28" |
| ST 立管 (mm) | 390 | 430 | 470 | 510 | 550 | 590 |
| TT 上管 (mm) | 560 | 565 | 580 | 590 | 610 | 630 |
| CS 後下叉 (mm) | 460 | 460 | 460 | 460 | 460 | 460 |
| HTA 頭管角度(°) | 70.5 | 70.5 | 71 | 71 | 71.5 | 71.5 |
| STA 立管角度(°) | 74 | 74 | 73.5 | 73.5 | 73 | 73 |
| BD 五通下沉量 (mm) | 70 | 70 | 70 | 70 | 70 | 70 |
| HT 頭管高度 (mm) | 130 | 130 | 140 | 155 | 175 | 205 |
| FL 前叉長度 (mm) | 460 | 460 | 460 | 460 | 460 | 460 |
| R REACHS (mm) | 385 | 390 | 396 | 402 | 409 | 420 |
| S STACKS (mm) | 611 | 611 | 622 | 637 | 658 | 686 |
| WB 輪距 (mm) | 1080 | 1085 | 1089 | 1100 | 1109 | 1130 |
| SH 跨高 (mm) | 679 | 712 | 745 | 779 | 814 | 849 |
| Body Height Cm | < 149 | 145 - 160 | 155 - 170 | 161 - 180 | 171 - 190 | > 185 |
